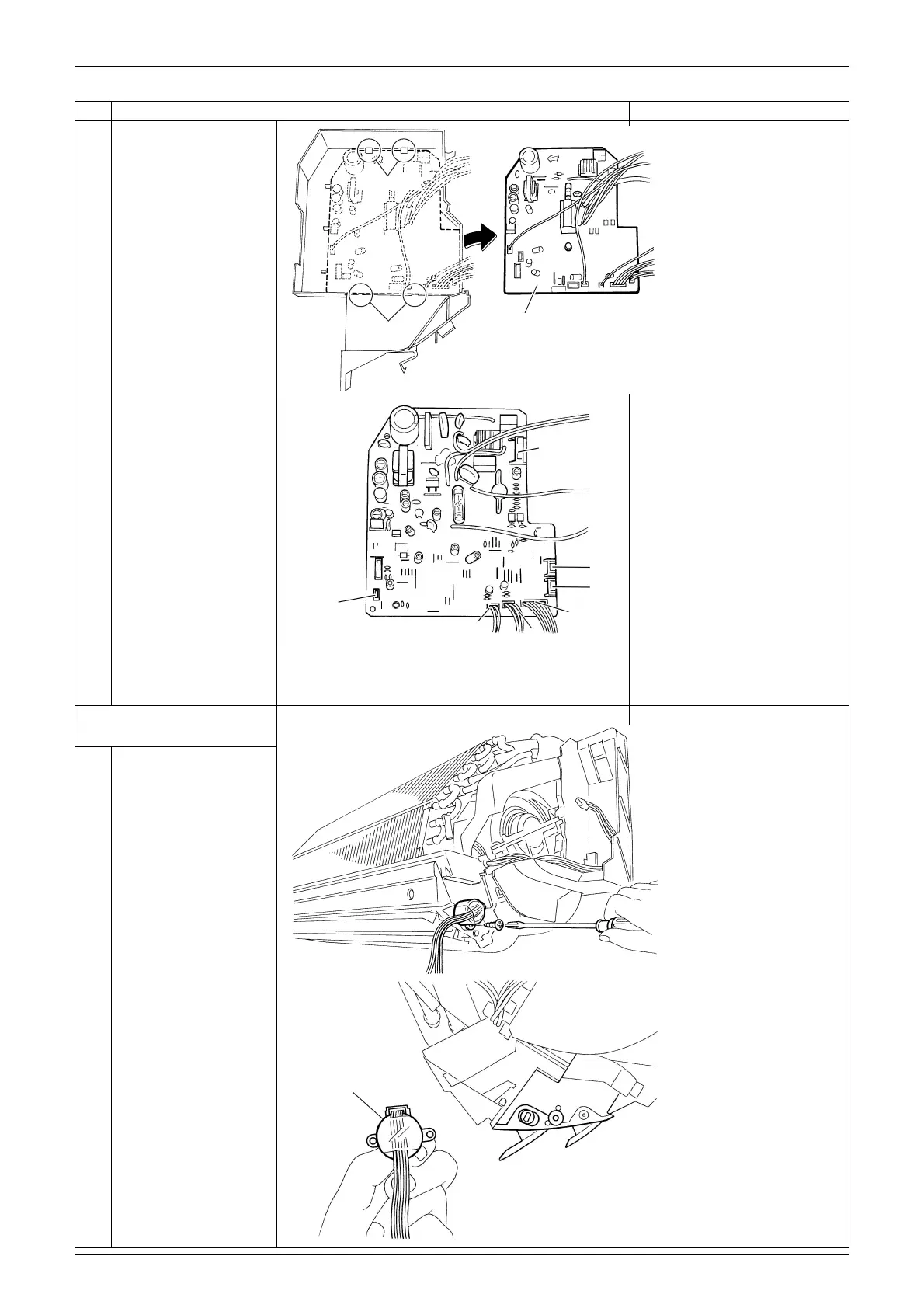

Si04-855 Removal of Electrical Box / PCBs / Swing Motors
Removal Procedure 13
7
Unfasten the 2 hooks
on the lower side, and
then the 2 hooks on the
upper side.
Remove the control
PCB.
[S1]: fan motor
[S6]: swing motor (horizontal
blades)
[S8]: swing motor (vertical
blades)
[S26]:buzzer PCB
[S28]:signal receiver PCB
[S32]:indoor heat exchanger
thermistor
[S35]:INTELLIGENT EYE
sensor PCB
Some models have no
harness for [S8].
Some models have no
INTELLIGENT EYE sensor
PCB or harness for [S35].
3. Remove the swing motor
for horizontal blades.
1
Remove the screw of
the swing motor.
2
Remove the swing
motor.
Step Procedure Points
Upper hook
Lower hook
Control PCB
(R17129)
[S32]
[S28]
[S26]
[S8]
[S6]
[S1]
[S35]
(R2697)
(R2787)
Swing motor
(R2788)
To Next Page
