Si04-855 Removal of Horizontal Blades / Vertical Blades

Removal Procedure 7

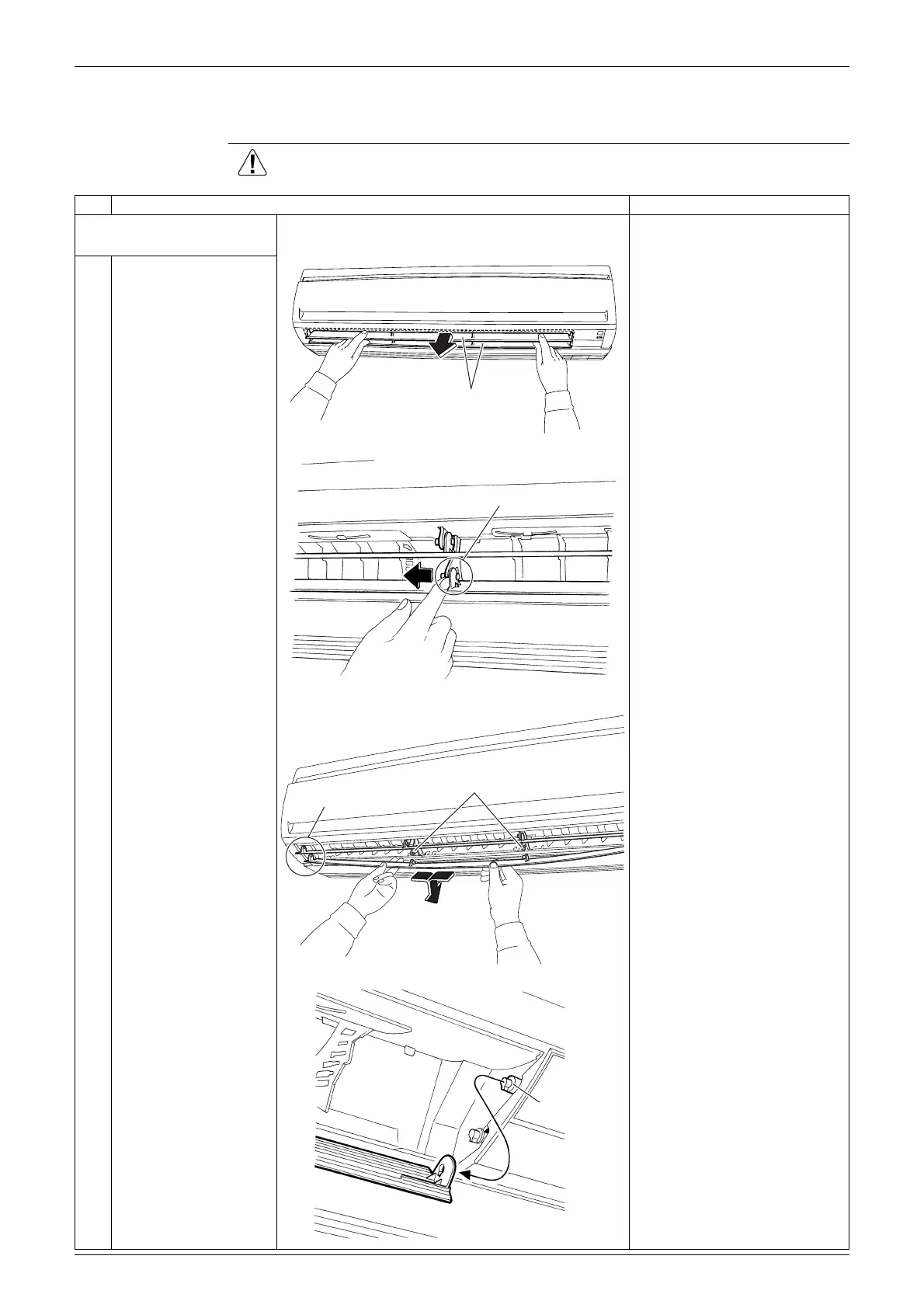

3. Removal of Horizontal Blades / Vertical Blades

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Remove the horizontal

blades.

Open the horizontal

blades.

Bend the horizontal

blade slightly and

release the center

shaft. (2 locations)



Remove both the horizontal

blades (upper and lower) in

the same way.

Release the left shaft.

Slide the horizontal

blade to the left and

release the right shaft.



Installation procedure

1. Since the key pattern hook is

provided, rotate the blade

and fit it to the right shaft

first.

2. Fit the blade to the center

and left shafts.

Horizontal blade

(R6703)

(R2765)

Center shaft

Left shaft

Center shaft

(R12894)

Right shaft

(R2766)
