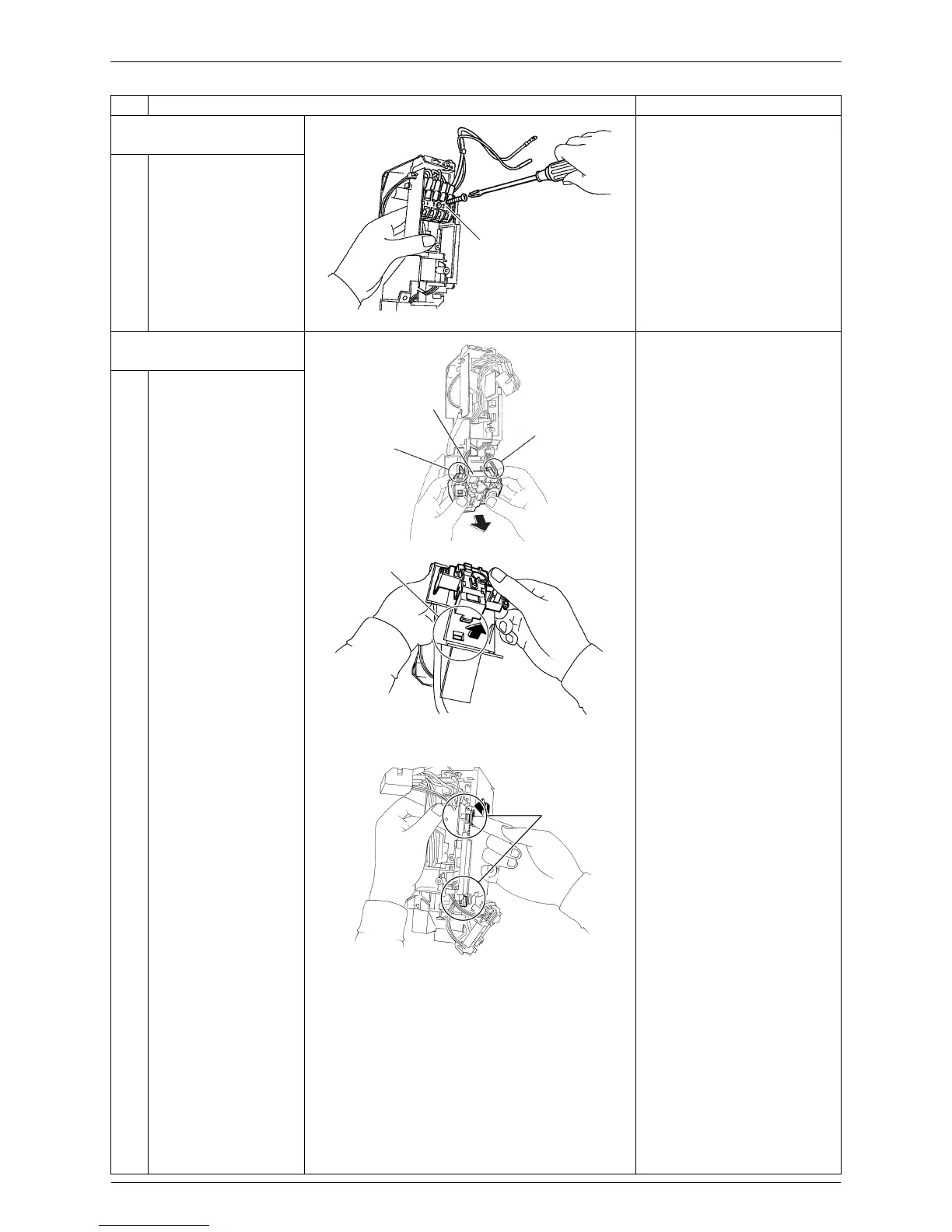

Daikin FTKV25NVM4 - Terminal Board and Signal Receiver Unit Removal

PCBs Si041251EC
10 Removal Procedure
3. Remove the terminal
board.
1
Remove the screw and
remove the terminal
board.
4. Remove the signal
receiver unit.
1
Unfasten the 3 hooks
and remove the signal
receiver unit.
2
Unfasten the 2 hooks.
Step Procedure Points
Terminal board
(R4354)
(R19301)
Signal receiver unit
Hook
Hook
(R12725)
Hook
Hook
(R16033)
