Names of Parts

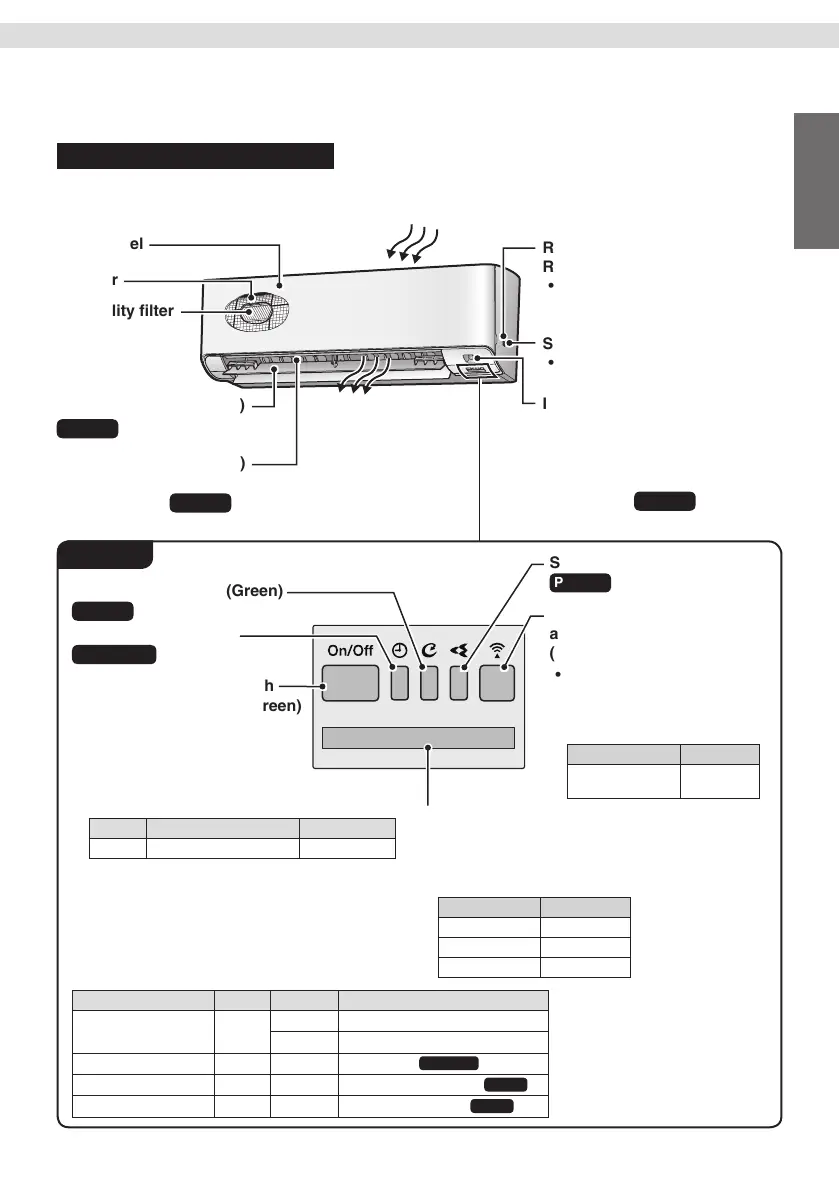

 Indoor Unit
For FTKY25/35/50*/60*/71*
* Appearance of indoor units may differ from some model
5
Tiếng Việt English
Air inlet
Air outlet
Front panel
Air lter
Flaps (horizontal blades)
Page 11
Louvres (vertical blades)
• The louvres are inside of
the air outlet.
Page 11
Air quality lter
(enzyme blue
with PM2.5)
Streamer air inlet
• Air inlet for streamer operation.
INTELLIGENT EYE sensor
• Detects the movements of
people and automatically
switches between normal
operation and energy saving
operation.
Page 14
Room temperature sensor and
Room humidity sensor
• Sense the air temperature and
humidity around the unit.
Display
List of lamps
Lamp Colour State Description
OPERATION lamp green
Lights up The air conditioner is running.
Blinks Check the error code.
TIMER lamp orange Lights up
TIMER is set.
Page 21, 22
MOLD PROOF lamp green Lights up
MOLD PROOF operation.
Page 16
STREAMER lamp green Lights up
STREAMER operation.
Page 18
MOLD PROOF lamp (Green)
Page 16
TIMER lamp (Orange)
Page 21, 22
Indoor unit ON/OFF switch
and OPERATION lamp (Green)
• Press this switch once to
start operation.
Press once again to stop it.
• For the operation mode setting,
refer to the following table.
Mode Temperature setting Airow rate
COOL 22.0°C AUTO
• This switch can be used when the remote
controller is missing or out of batteries.
STREAMER lamp (Green)
Page 18
Wireless LAN connecting
adapter lamp (Orange)
(separately sold part)
• To purchase a wireless LAN
connecting adapter, contact
the dealer where you bought
the air conditioner.
Item Part No.
Wireless LAN
connecting adapter
BRP084C42
Signal receiver:
• It receives signals from the remote controller.
• When the unit receives a signal, you will hear
a beep sound.
Case Sound type
Operation start beep-beep
Setting change beep
Operation stop long beep
