Daikin FTXF A Series User Manual

5 | Technical data
Service manual
162
FTXF20~71A + FTXF20~25B + FTXF20~42C + ATXF20~71A + ATXF20~42C
+ RXF20~71A + RXF20~60B + RXF20~42C + ARXF20~71A + ARXF20~42C
Split Sensira R32
ESIE18-12E – 2021.02

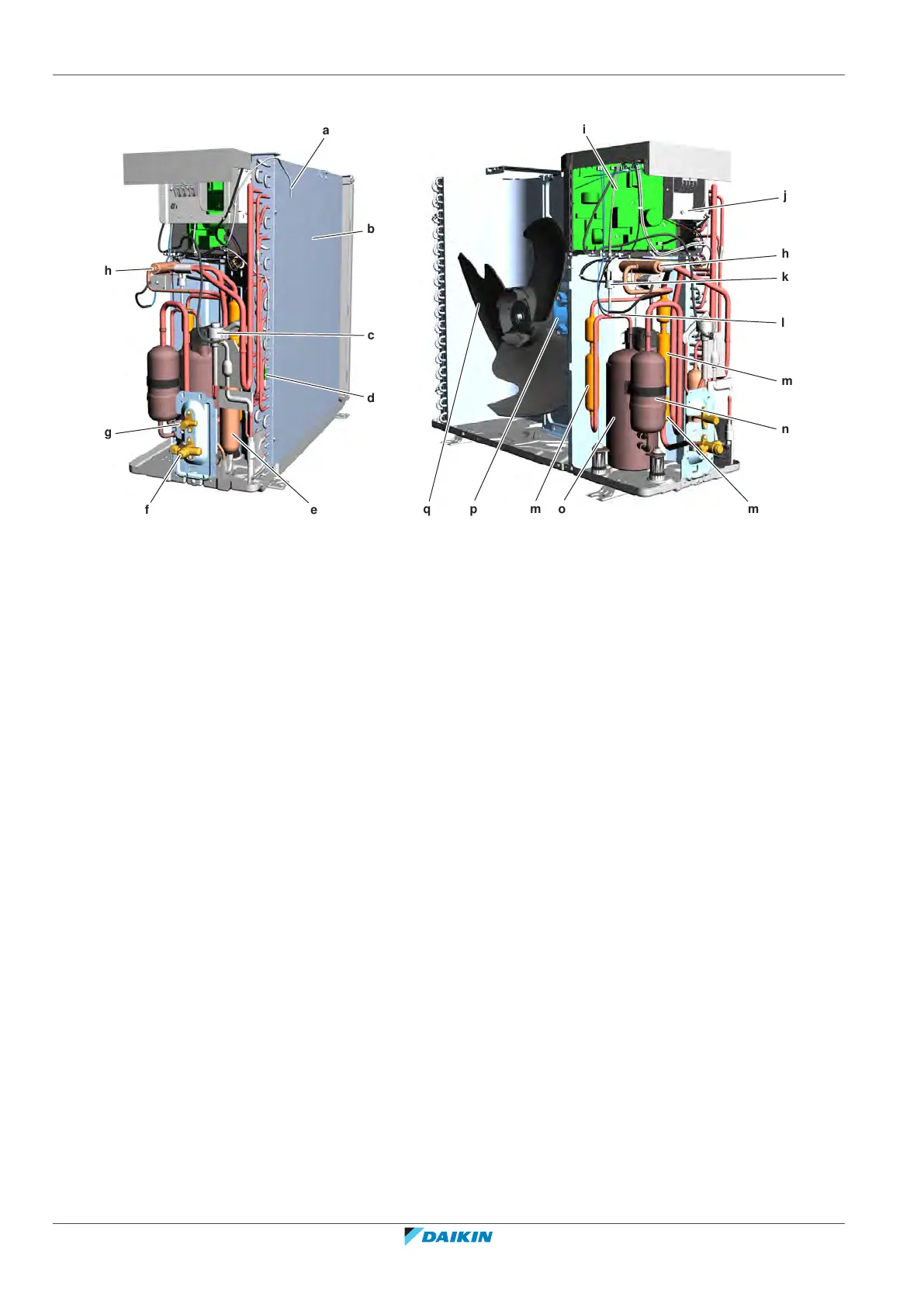

5.4.2 Component overview: Outdoor unit
i
j
h
k
l
n
mopq
a
b
c
d
e
f
g
h
m
m
a Air thermistor R1T j Service PCB
b Heat exchanger k High pressure switch (NOT for RXF50A)
c Expansion valve l Discharge pipe thermistor R3T
d Heat exchanger thermistor R2T m Muffler
e Liquid receiver n Accumulator
f Stop valve with service port (gas) o Compressor
g Stop valve (liquid) p Fan motor
h 4‑way valve coil q Fan
i Main + inverter PCB
