Pump Down Operation
In order to protect the environment, be sure to pump down when relocating or disposing of the unit.
1) Remove the valve cap from liquid stop valve and gas stop valve.
2) Carry out forced cooling operation.
3) After 5 to 10 minutes, close the liquid stop valve with a hexagonal wrench.
4) After 2 to 3 minutes, close the gas stop valve and stop forced cooling operation.
How to forced cooling operation mode
Using the indoor unit ON/OFF switch
Press the indoor unit ON/OFF switch for at least 5 seconds. (Operation will start.)
• Forced cooling operation will stop automatically after around 15 minutes.
To force a trial operation to stop, press the indoor unit ON/OFF switch.
Using the indoor unit’s remote controller
1) Press the “ON/OFF” button. (Operation will start.)
2) Press the “TEMP”
button and the “MODE” button at the same time.
3) Press the “MODE” button twice. ( “ ”
will be displayed and the unit will enter trial operation.)
4) Press the “MODE” button to return the operation mode to cooling.
• Trial operation will stop automatically after around 30 minutes. To force a trial operation to stop, press the “ON/OFF”
button.
CAUTION
• When pressing the switch, do not touch the terminal block. It has a high voltage, so doing so may cause electric shock.
• After closing the liquid stop valve, close the gas stop valve within 3 minutes, then stop the forced operation.

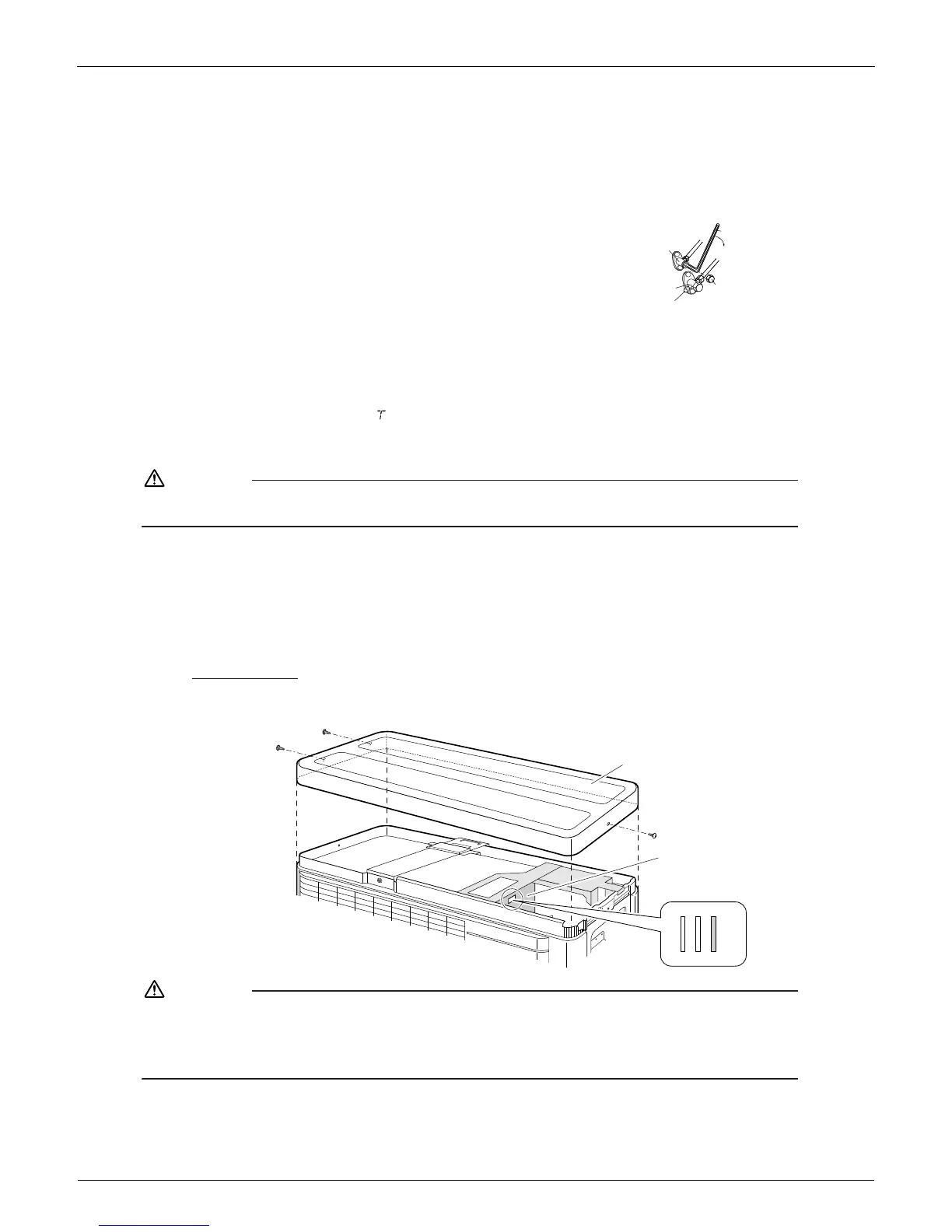

Facility Setting
(cooling at low outdoor temperature)
This function is limited only for facilities (the target of air conditioning is equipment (such as computer)).
Never use it in a residence or office (the space where there is a human).
Cutting jumper 3 (J3)
on the circuit board will expand the operation range down to 5˚F (–15˚C). However it will stop if the
outdoor temperature drops below –4˚F (–20˚C) and start back up once the temperature rises again.
1) Remove the 3 screws on the side and remove the top plate of the outdoor unit.
2) Cut the jumper (J3) of the PCB inside.
CAUTION
• If the outdoor unit is installed where the heat exchanger of the unit is exposed to direct wind, provide a windbreak wall.
• Intermittent noises may be produced by the indoor unit due to the outdoor fan turning on and off when using facility settings.
• Do not place humidifiers or other items which might raise the humidity in rooms where facility settings are being used.
A humidifier might cause dew jumping from the indoor unit outlet vent.
• Cutting jumper 3 (J3) sets the indoor fan tap to the highest position. Notify the user about this.
Gas
stop valve
Valve cap
Service port
Hexagonal
wrench
Close
Liquid
stop valve
J5
J4
J3
Top plate
PCB
1) Remove the
3 screws.
2) Cut jumper J3.
