Names of Parts

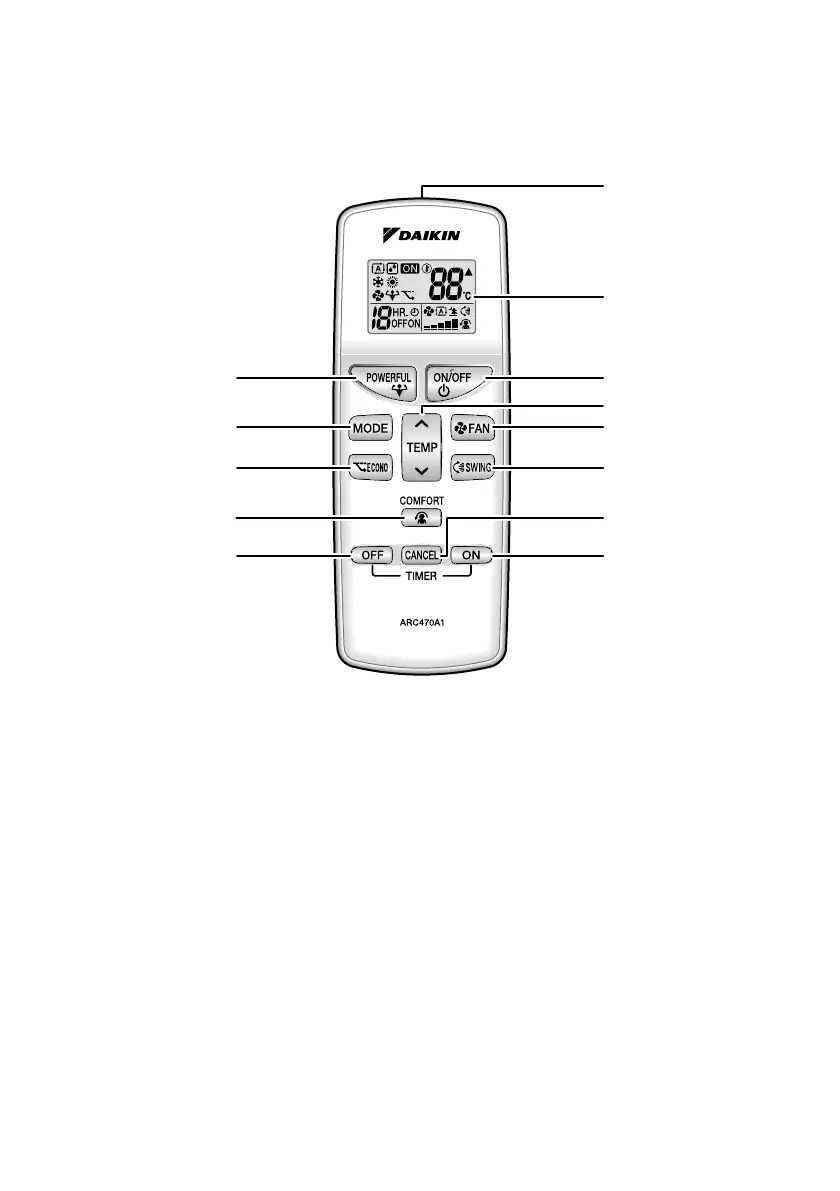

Remote Controller
1
6
2
13
9
8
5
11
4
3
7
12
10
<ARC470A1>
Signal transmitter:1.
It sends signals to the indoor unit.•
Display (LCD):2.
It displays the current settings. •
(In this illustration, each section is shown
with its displays on for the purpose of
explanation.)
ECONO button:3.
ECONO operation (page 15)
POWERFUL button:4.
POWERFUL operation (page 14)
TEMPERATURE adjustment button:5.
It changes the temperature setting.•
ON/OFF button:6.
Press this button once to start operation.•
Press once again to stop it.
MODE selector button:7.
It selects the operation mode.•
(AUTO/DRY/COOL/HEAT/FAN) (page 9)
FAN setting button:8.
It selects the airfl ow rate setting.•
SWING button:9.
Adjusting the airfl ow direction. (page 11)•
COMFORT AIRFLOW button: 10.
COMFORT AIRFLOW operation (page 13)
ON TIMER button: 11. (page 17)
OFF TIMER button: 12. (page 16)
TIMER CANCEL button:13.
It cancels the timer setting.•
