Si04-756 Removal of Air Filters / Front panel

Removal Procedure 5

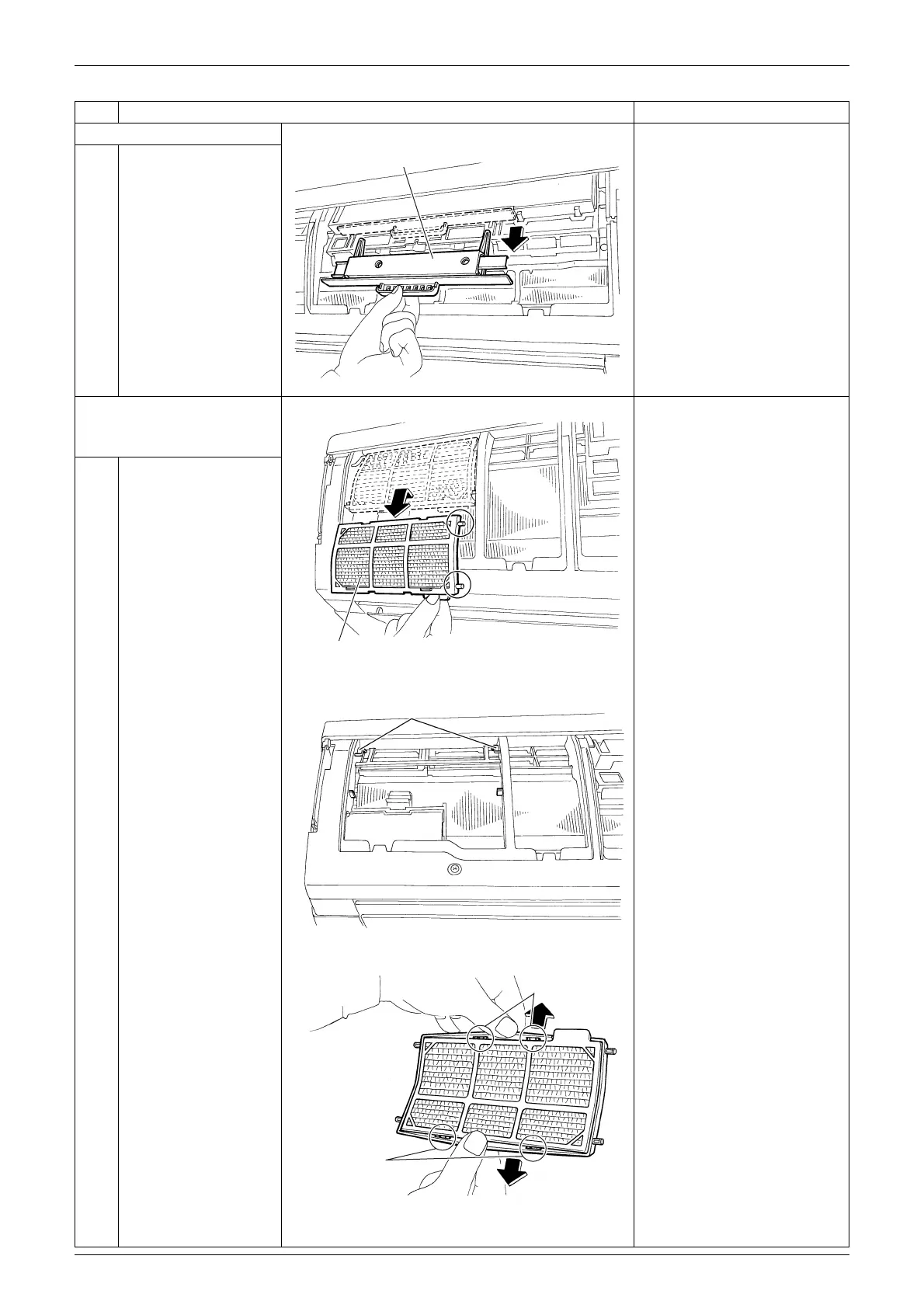

4. Remove the electrode unit.

Pull down the electrode

unit with holding the

knob.

5. Remove the Titanium

apatite photocatalytic air-

purifying filter.

Unfasten the projection

of the frame of

Titanium apatite

photocatalytic air-

purifying filter and

remove it.



Insert the filter along the

guide for easy installation.

Unfasten the 4 hooks

and remove the

Titanium apatite

photocatalytic air

purifying filter.

Step Procedure Points

Electrode unit

(R13947)

(R13948)

Titanium apatite photocatalytic

air-purifying filter

(R5635)

Guide

(R14115)

Hook
