3 ■English

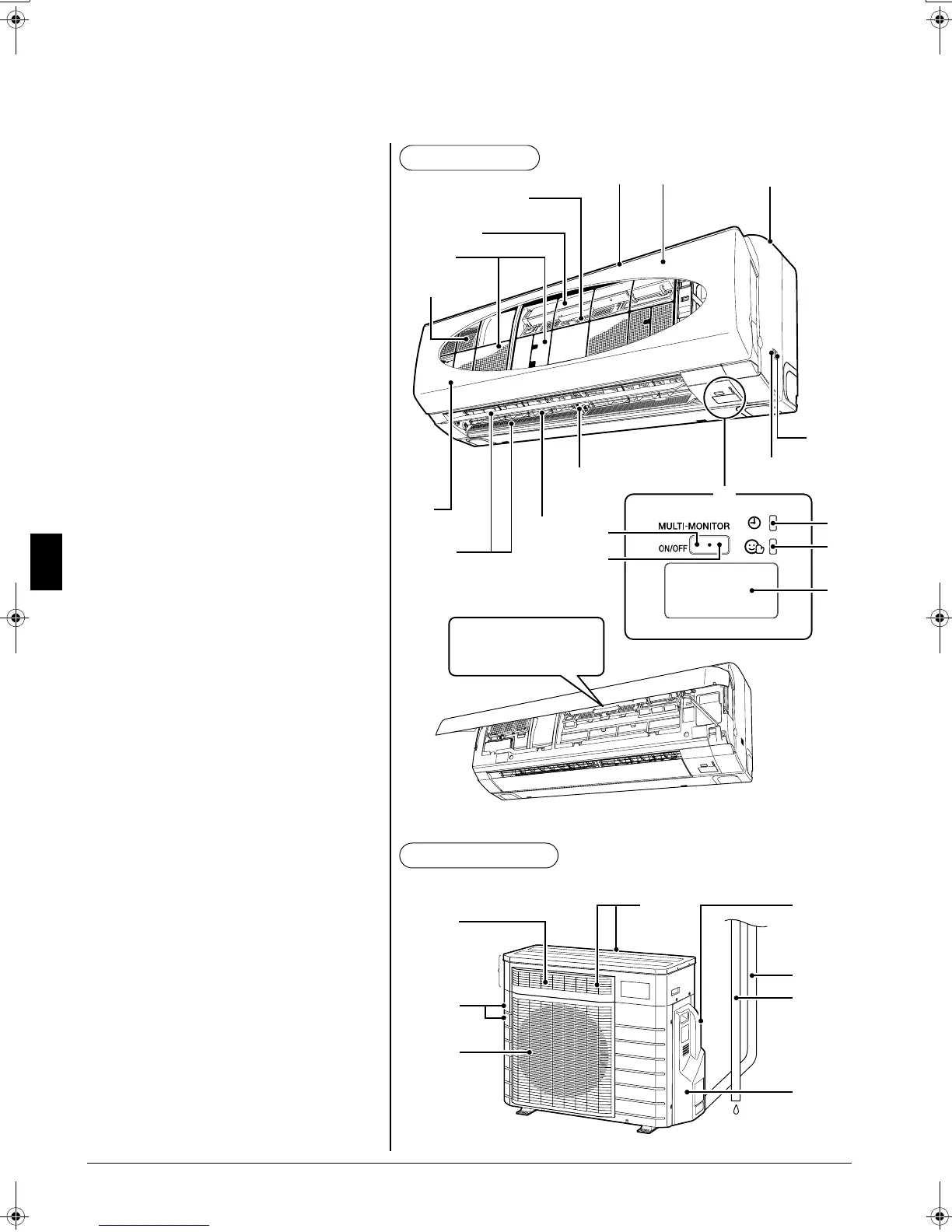

Names of Parts
■ Indoor Unit
1.
Streamer unit: (page 20-22.)
2.
Deodorizing filter for streamer (Black)
3.
Air inlet
4.
Front panel
5.
Upper panel
6.
Air filter (Light blue): (page 19.)
7.
Titanium apatite photocatalytic air-purifying
filter
(Black)
:
(page 20-22.)
8.
Air supply filter (Yellow): (page 23.)
9.
Horizontal louver: (page 10.)
10.
Vertical louver:
•
In the air outlet. (page 10.)
11.
Air outlet
12.
Room humidity sensor:
•
It senses the air humidity around the indoor unit.
13.
Room temperature sensor:
•
It senses the air temperature around the indoor
unit.
14.
Display
15.
Indoor unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
16.
Multi-colored indicator lamp:
•
The lamp color changes according to the operation.
•
HEATING....................................... Red
•
“URURU” HUMIDIFYING /
HUMID HEATING .......................... Orange
•
COOLING ...................................... Green
•
“SARARA” DRYING /
DRY COOLING ............................. Yellow
•
The lamp color also changes according
to the optional function.
•
FLASH STREAMER AIR PURIFYING /
FRESH AIR SUPPLY VENTILATION
... White
(Only for the first 2 seconds during operation of
the air conditioner.)
17.
TIMER lamp (Orange): (page 12.)
18.
MOISTURIZING lamp (Green): (page 9.)
19.
Signal receiver:
•
Receives / sends signals from/to the remote
controller.
•
The multi-colored indicator lamp blinks with
beep sound to indicate signal reception.
•
Operation start .......................two beeps
•
Settings changed.................... one beep
•
Operation stop ........................long beep
■ Outdoor Unit
20.
Humidify unit air outlet: (Front side)
21.
Air inlet: (Back and left side)
22.
Air outlet
23.
Humidify unit air intake: (Front and back)
24.
Outdoor temperature sensor:
•
It senses the air temperature around the out-
door unit. (Back side)
25.
Refrigerant piping, humidifying hose and
inter-unit cable
26.
Drain hose:
•
Drains water coming from the indoor unit.
27.
Earth terminal:
•
It is inside of this cover.
Indoor Unit
1
15
16
6
7
10
11
13
12
8
9
2
34
5
17
18
19
14
If the protection tape
(blue) is on the streamer
unit, remove it before use.
Outdoor Unit
20
22
23
21
Humidify unit
25
24
26
27
01_EN_3P190650-1D.fm Page 3 Tuesday, March 6, 2007 6:26 PM
