Daikin FTY-J series - Model

40

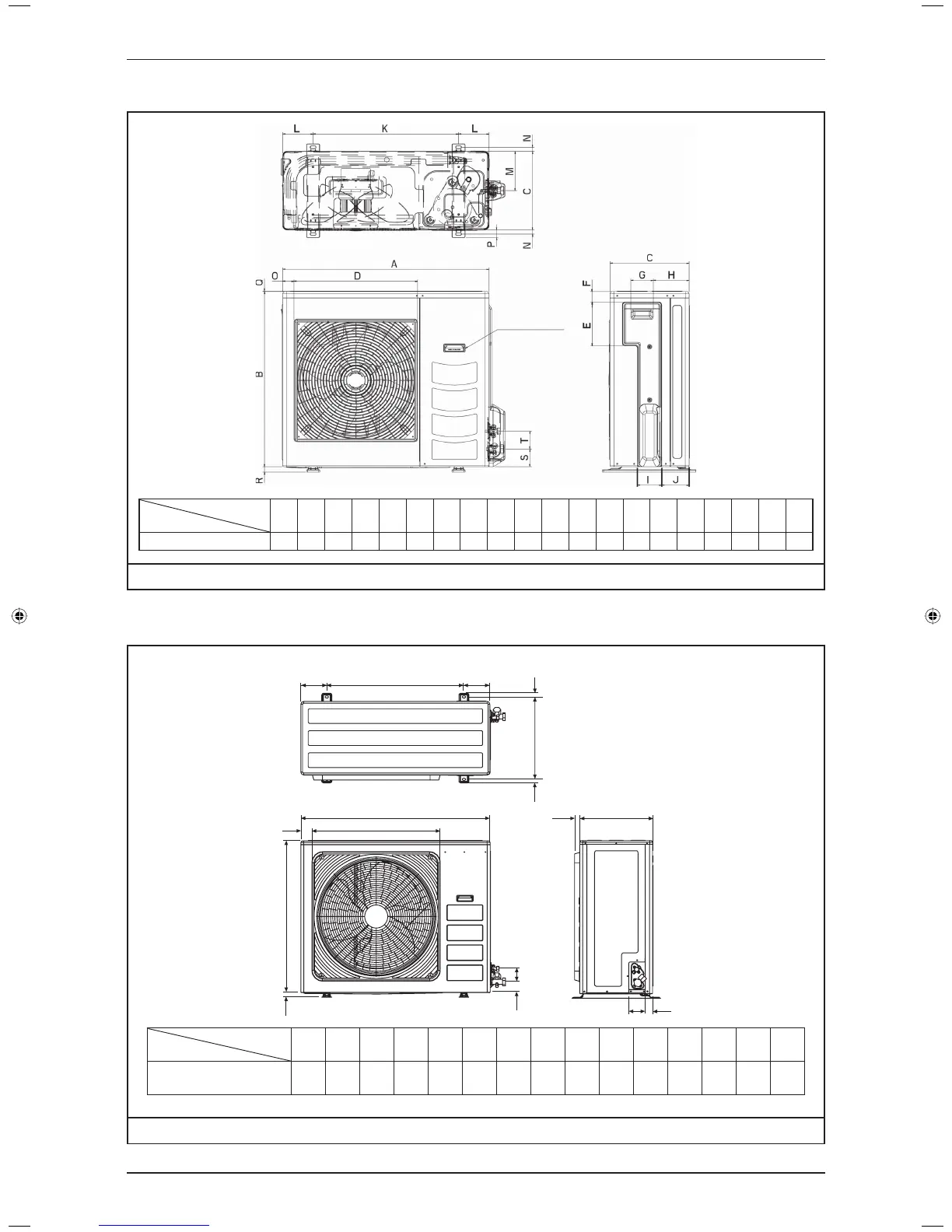

Outline & Dimension
Model: R(Y)28CXY1
For R/RY28C Only
Dimension
Model
ABCDE FGH I J KLMNOPQRS T
R(Y)28CXY1 855 730 328 513 182 44 93 149 101 113 603 126 164 17 47 32 3 23 73 75
Note: Dimension in mm
Model: R(Y)30DXV1 / R30DXY1
Dimension
Model
ABCDEFGH I JKLMNO
R(Y)30DXV1 /
R30DXY1
1030 826 400 410 57 72 90 40 746 142 60 26 448 22 28
MADE IN MALAYSIA
IJJ
D
M
B
G
O
NN
K
A
L
EF
H
C
Note: Dimension in mm
