Daikin FTY60GAV1A - Air Flow Direction Adjustment; Horizontal Blade (Flap) Adjustment; Vertical Blade (Louvre) Adjustment

10
DRY • COOL
FAN
HEAT

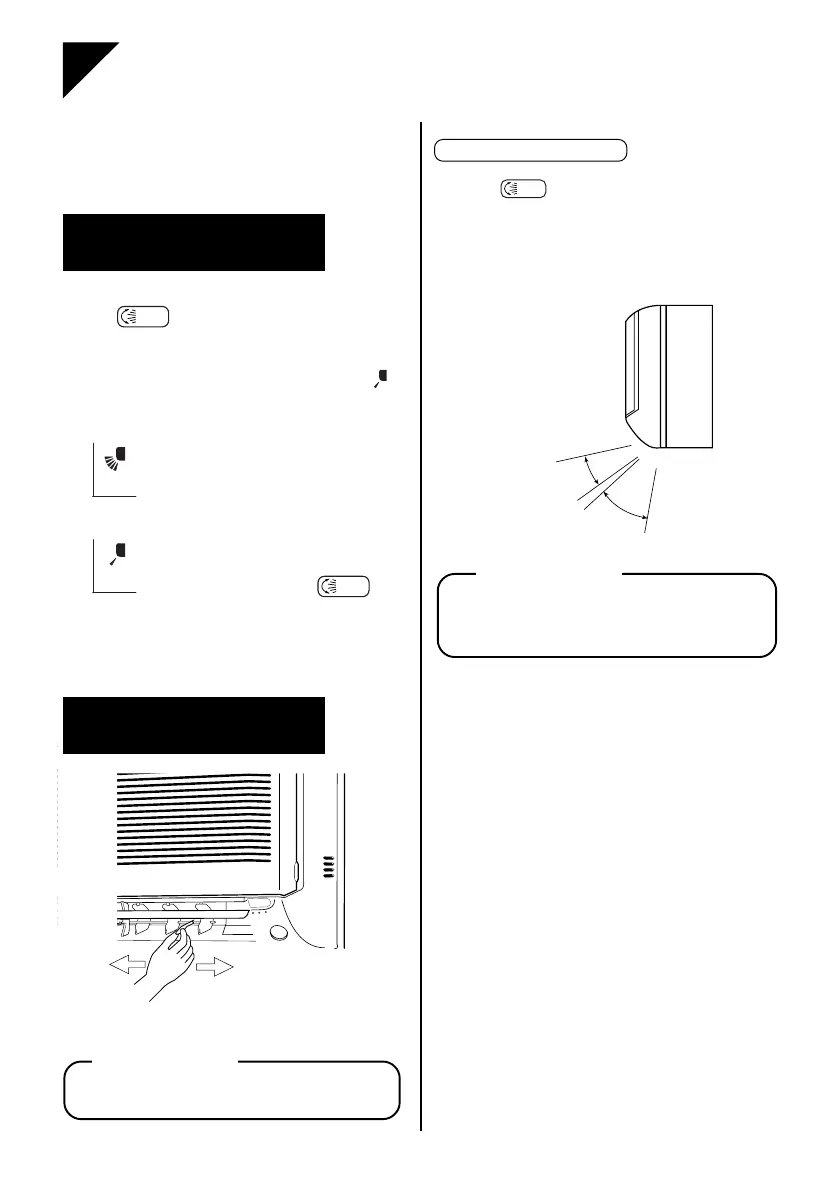

Adjusting the Air Flow Direction
You can adjust the air flow direction to increase
your comfort.
Adjusting the
horizontal blade (flap)
....... To stop the flap at an angle
you like, press
SWING
.
Press
SWING
.
● Every time the button is pressed, “ ”
appears or disappears.
....... The flap automatically
swings up and down.
Notes on flap angles
Adjusting the
vertical blade (louvre)
ATTENTION
Hold the knob and move the louvre.
(You will find a knob on the left-side and the right-side blades.)
● Be careful when adjusting the louvre. Inside
the air outlet, a fan is rotating at a high speed.
● When
SWING
is selected, the flap swinging
range depends on the operation mode. (See
the figure.)
● The real flap angles are differ from the
display of remote controller.
ATTENTION
● Always use a remote controller to adjust
the flap angle. If you attempt to move it
forcibly with hand when it is swinging,
the mechanism may be broken.
