6

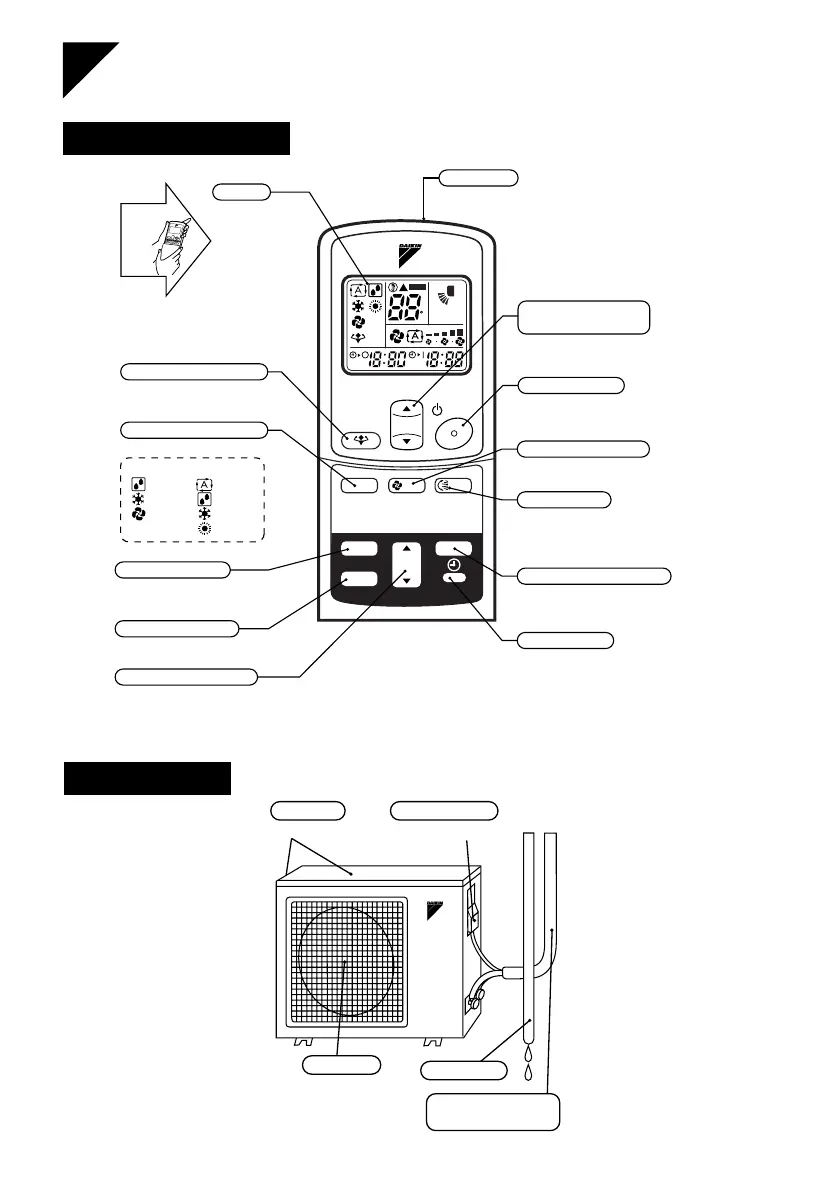

Names of Parts
Remote controller
Outdoor unit
C
ON
AMPM
AMPM
TEMP
ON/OFF
MODE
ON
OFF
TIMER
FAN
SWING
CANCEL
POWERFUL
Transmitter
It sends signals to the indoor unit.
ON/OFF button
Press it once to start operation.
To stop it, press it once again.
CLOCK button
(See page 8 “Preparation
Before Operation - Setting
the Clock”)
TIMER CANCEL button
It cancels the timer setting.
FAN setting button
It selects the air flow rate setting.
SWING button
(See page 10 “Adjusting the Air
Flow Direction”)
It changes the temperature
setting.
Display
It displays the
current settings.
(In this illustration,
each section is
shown with all its
displays ON for the
purpose of
explanation. Some
models may not
show all its
indications.)
ON TIMER button
(See page 12 “Timer Operation”)
TIMER Setting button
It changes the time setting
MODE selector button
It selects the operation mode.
POWERFUL button
(See page 11
“POWERFUL Operation”)
TEMPERATURE
adjustment buttons
Open
the
cover.
OFF TIMER button
: DRY
: COOL
: FAN
: AUTO
: DRY
: COOL
: HEAT
<FT> <FTY>
Air inlet
Air outlet
(Back and side)
Refrigerant piping
and inter-unit cable
Earth terminal
It is inside of this part.
Drain hose
<ARC423A17, ARC423A18>
