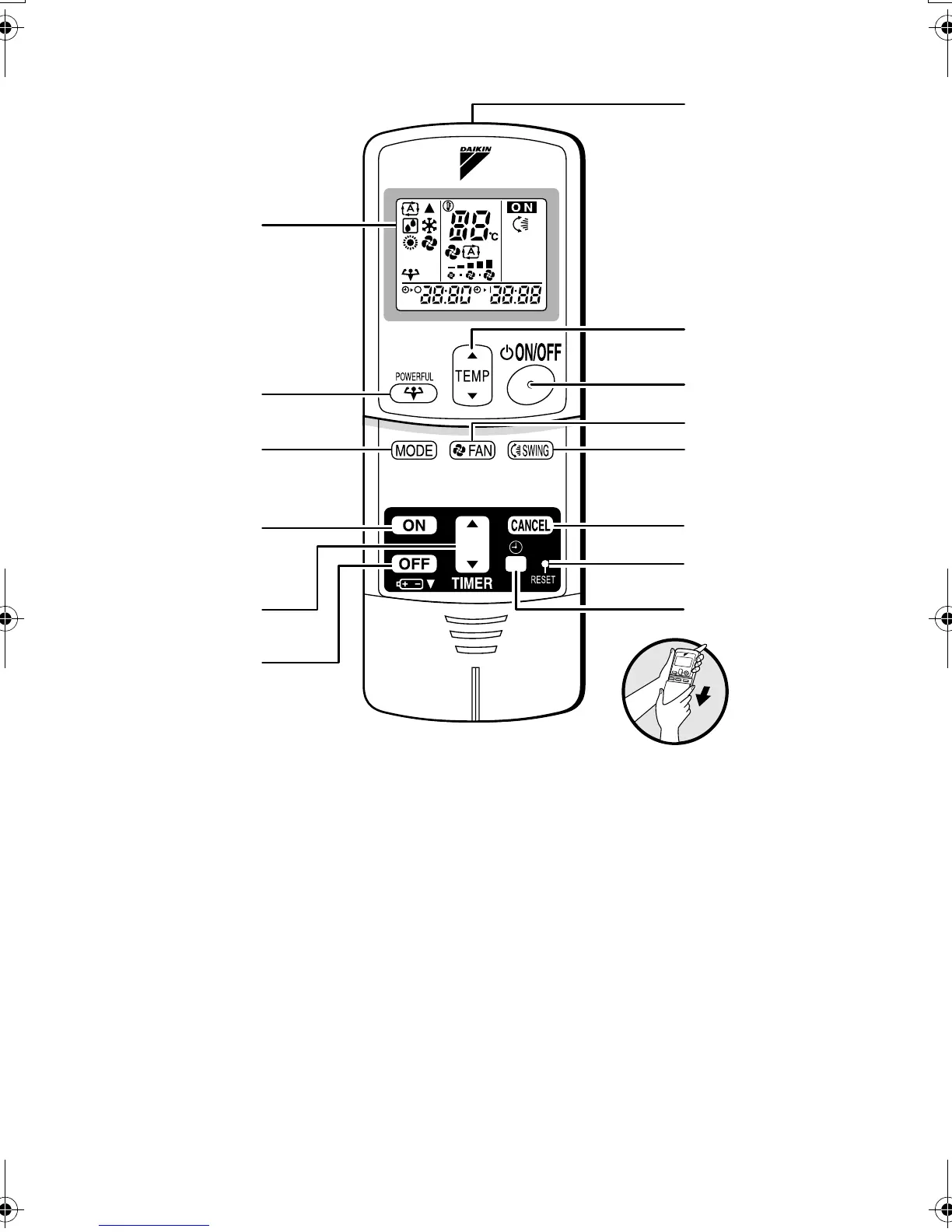

■ Remote Controller
1. Signal transmitter:
•
It sends signals to the indoor unit.
2. Display:
•
It displays the current settings.
(In this illustration, each section is shown with all
its displays ON for the purpose of explanation.)
3. POWERFUL button:
POWERFUL operation (page 13.)
4. TEMPERATURE adjustment buttons:
•
It changes the temperature of time setting.
5. ON/OFF button:
•
Press this button once to start operation.
Press once again to stop it.
6. MODE selector button:
•
It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN) (page 10.)
7. FAN setting button:
•
It selects the air flow rate setting.
8. SWING button:
(page 12.)
•
Flap (Horizontal blade)
9. ON TIMER button:
(page 15.)
10. OFF TIMER button:
(page 14.)
11. TIMER Setting button:
•
It changes the time setting.
12. TIMER CANCEL button:
•
It cancels the timer setting.
13. CLOCK button:
(page 9.)
14. RESET button:
• Restart the unit if it freezes.
• Use a thin object to push.
