16 | Unit installation
Installer and user reference guide
48
FXDA10~63A2VEB
VRV system air conditioner
4P599621-1A – 2020.10
A
620
(mm)

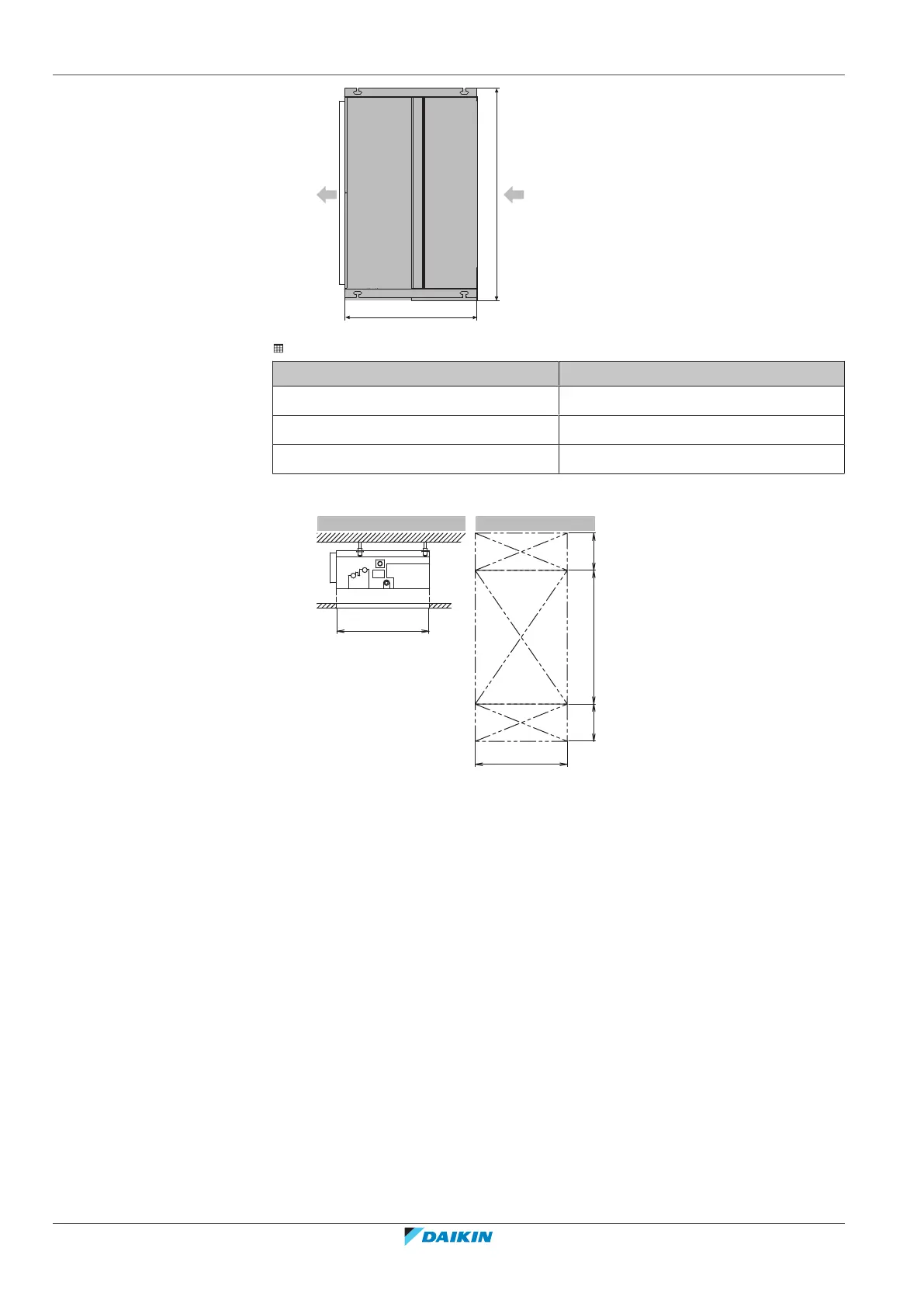

16‒1 Ceiling opening dimension (A)
Class A(mm)
10~32 790
40~50 990
63 1190
Service space
620
620
C
300
300
A
B
A Side view
B Top view
C Class 10~32: 750 mm
Class 40+50: 950 mm
Class 63: 1150 mm
