Daikin FXDA10A2VEB - Mounting the Indoor Unit; Guidelines When Installing the Indoor Unit

16 | Unit installation
Installer and user reference guide
49
FXDA10~63A2VEB
VRV system air conditioner
4P599621-1A – 2020.10

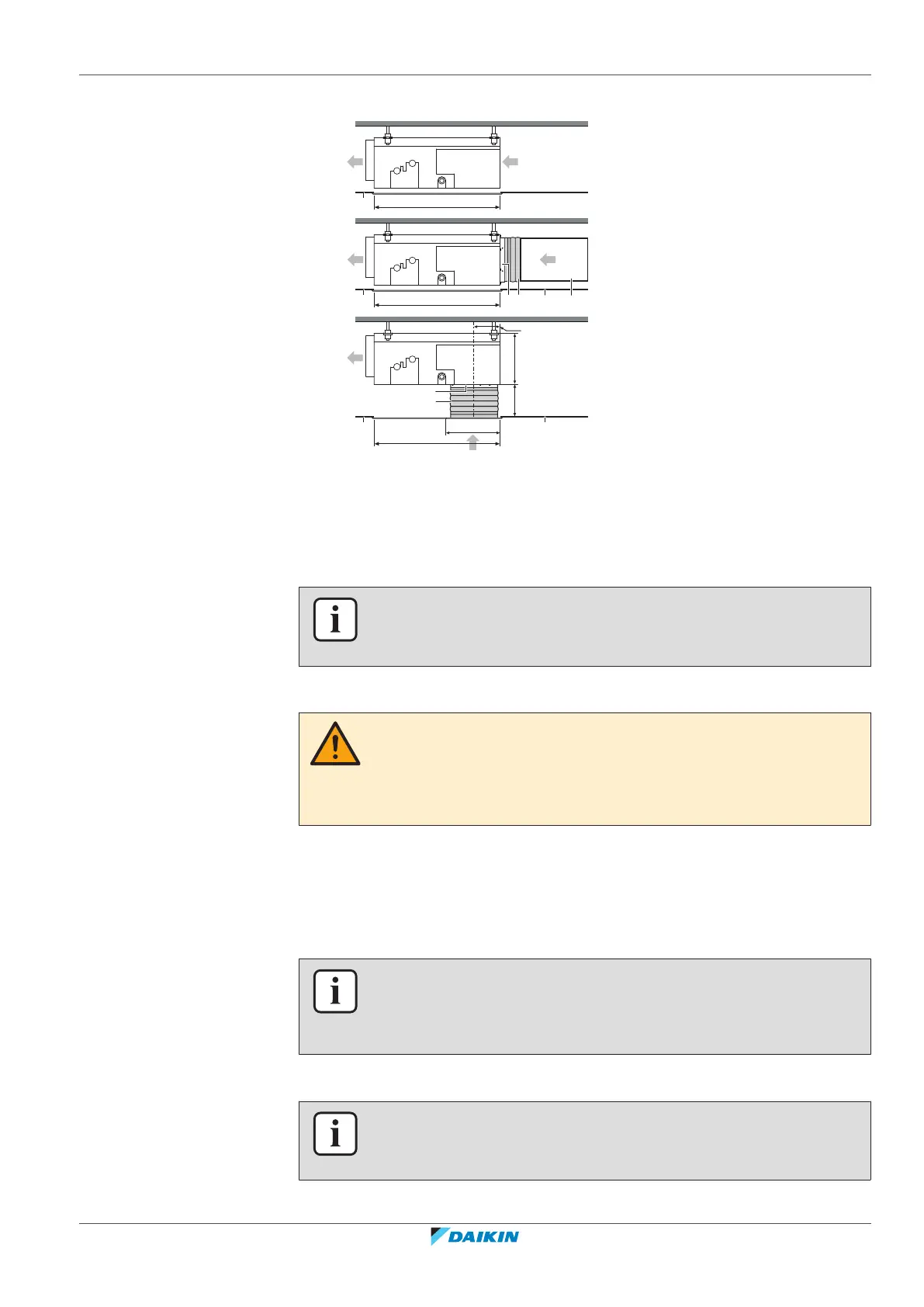

Installation options
a
b ≥620
A
B
e
(mm)
100
160
(160~300)
f ≥400
200
C
a a
b ≥620
a
b ≥620
dc
d
c
a
A Standard rear suction
B Installation with rear canvas duct and duct
C Installation with bottom canvas duct and air inlet grill
a Ceiling surface
b Ceiling opening
c Flange (field supply)
d Canvas connection for air inlet panel (field supply)
e Duct
f Air inlet panel (field supply) opening with air filter (field supply)
INFORMATION
Some options may require additional service space. Refer to the installation manual
of the used option before installation.
Minimum floor area requirements
CAUTION
The total refrigerant charge in the system cannot exceed the requirements for
minimum floor area of the smallest room that is served. For minimum floor area
requirements for indoor units, see the installation and operation manual of the
outdoor unit.
16.2 Mounting the indoor unit
16.2.1 Guidelines when installing the indoor unit
INFORMATION
Optional equipment. When installing optional equipment, also read the installation
manual of the optional equipment. Depending on the field conditions, it might be
easier to install the optional equipment first.
Installation options
INFORMATION
The unit can be used with bottom suction by replacing the interchangeable plate by
the air filter holding plate.
