Daikin FXHQ63MAVE Technical Data

• Indoor Units • Ceiling Suspended Unit • FXHQ-MAVE
•VRV
®
Systems • Indoor Units
11

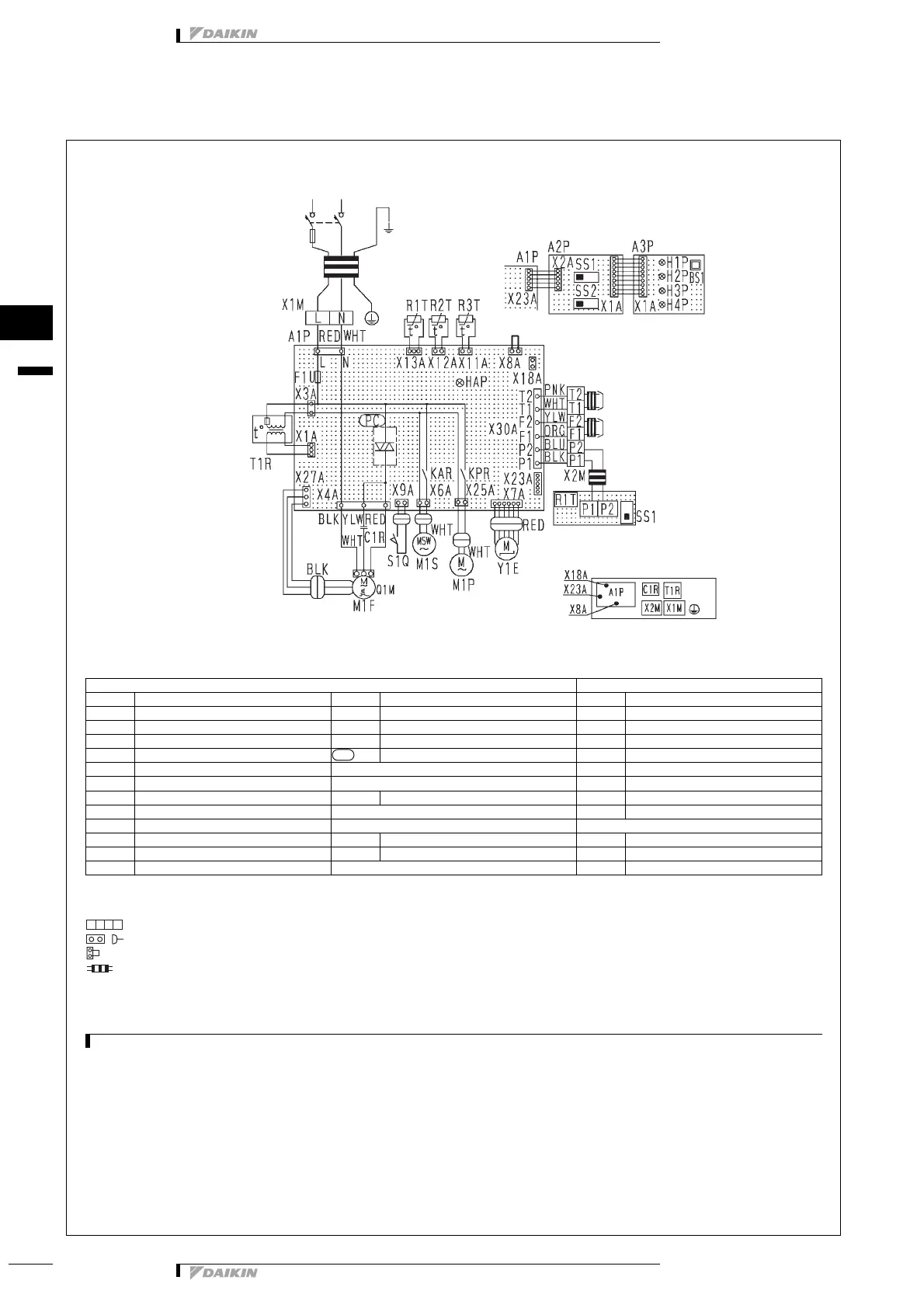

8 Wiring diagram
8 - 1 Wiring diagram
3
1
8
FXHQ-MA
3D039801D
Power supply
220-240 V
~
50Hz
220 V
~
60Hz
Note 2
Receiver/display unit
(Infrared remote control)
Note 4
Note 3
Input from
outside
Note 1
Transmission
wiring centralised
remote control
Wired remote control
(optional accessory)
Electric parts box
NOTES
1 In case of using centralised remote control, connect it to the unit in accordance with the attached instruction manual.
2 X23A is connected when the infrared remote control kit is being used.
3 When connecting the input wires from the outside, forced off or on/off control operation can be selected by remote control. In details, refer to the installation manual attached to the unit.
4 In case of installing the drain pump, remove the short circuit connector of X8A and execute the additional wiring for float switch and drain pump.
5 Use copper conductors only.
Indoor unit Receiver/display unit (Attached to infrared remote control)
A1P Printed circuit board T1R Transformer (220-240V/22V) A2P Printed circuit board
C1R Capacitor (M1F) X1M Terminal block (Power) A3P Printed circuit board
F1U Fuse (훾, 5A, 250V) X2M Terminal block (Control) BS1 Push button (On/off)
HAP Light emitting diode (Service monitor-green) Y1E Electronic expansion valve H1P Light emitting diode (On red)
KAR Magnetic relay (M1S) PC Phase control circuit H2P Light emitting diode (Timer green)
KPR Magnetic relay (M1P) H3P Light emitting diode (Filter sign-red)
M1F Motor (Indoor fan) Optional parts H4P Light emitting diode (Defrost orange)
M1S Motor (Swing flap) M1P Motor (Drain pump) SS1 Selector switch (Main/sub)
Q1M Thermo switch (M1F embedded) SS2 Selector switch (Wireless address set)
R1T Thermistor (Air) Wired remote control Connector for optional parts
R2T Thermistor (Coil liquid) R1T Thermistor (Air) X8A Connector (Float switch)
R3T Thermistor (Coil gas) SS1 Selector switch (Main/sub) X18A Connector (Wiring adapter for electrical appendices)
S1Q Limit switch (Swing flap) X23A Connector (Infrared remote control)
COLORS : BLK : Black RED : Red
BLU : Blue WHT : White
ORG : Orange YLW : Yellow
PNK : Pink
: Terminal
: Connector
: Short circuit connector
: Field wiring
,
