Daikin LRYEQ16A7Y1 User Manual

LRYEQ16A7Y1 + LCBKQ3AV1(E)
CONVENI-PACK
4P448940-1A – 2016.07
Operation manual
8

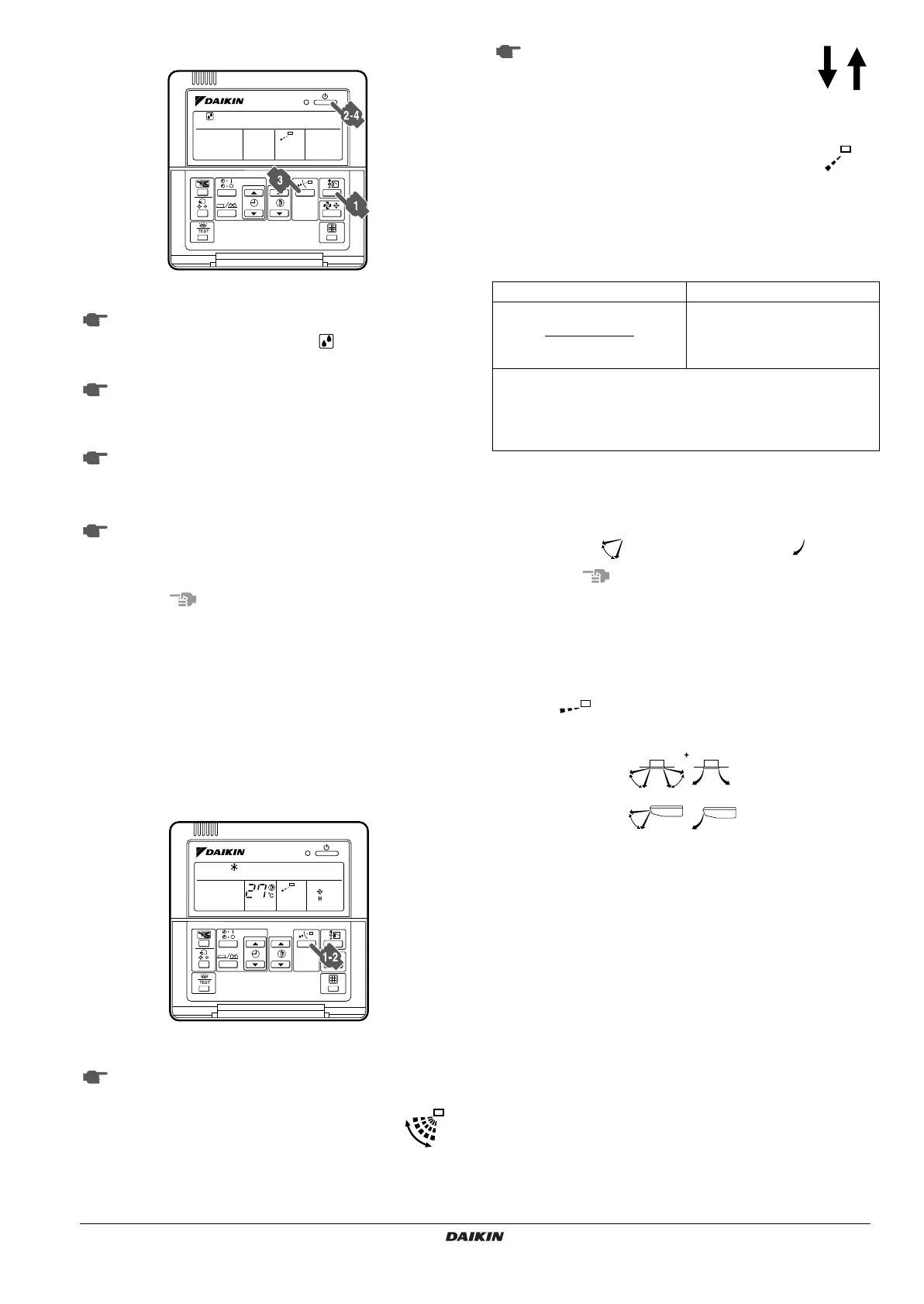

Fig.3
Press the operation mode selector button
several times and select “ ” (program dry
operation).
Press the on/off button.
The operation lamp lights up and the system
starts operation.
Press the air flow direction adjust button (only
for FXC, FXF, FXH). Refer to the chapter
“Adjusting the air flow direction” for details.
Press the on/off button once again.
The operation lamp goes off and the system
stops operation.
NOTE
• Do not turn off the power immediately after
the unit stops.
• The system need at least 5 minutes for
residual operation of drain pump device.
Turning off the power immediately will
cause water leak or trouble.
5-3 ADJUSTING THE AIR FLOW DIREC-
TION (only for Double-flow, Multi-flow,
Ceiling-suspended)
Fig.4
Press the air flow direction button to
select the air direction.
The air flow flap display swings as
shown right and the air flow direction
continuously varies. (Automatic
swing setting)
Press the air flow direction adjust
button to select the air direction of
your choice.
The air flow flap display stops swing-
ing and the air flow direction is fixed.
(Fixed air flow direction setting)
MOVEMENT OF THE AIR FLOW FLAP
For the following conditions, a micro computer con-
trols the air flow direction which may be different
from the display.
The air flow direction can be adjusted in one of the
following ways.
• The air flow flap itself adjusts its position.
• The air flow direction can be fixed by the user.
Automatic “ ” or desired position “ ”.
NOTE
• The movable limit of the flap is changeable.
Contact your Daikin dealer for details.
(Only for Double-flow, Multi-flow, Corner,
Ceiling-suspended and Wall-mounted.)
• Avoid operating in the horizontal direction
“ ”. It may cause dew or dust to settle
on the ceiling.
Fig.5
1
2
3
4
1
COOLING HEATING
• When starting operation.
• When the room temperature is
higher than the set temperature.
• At defrost operation.
• When operating continuously at horizontal air flow direction.
• When continuous operation with downward air flow is performed at the
time of cooling with a ceiling-suspended or a wall-mounted unit, the
micro-computer may control the flow direction, and then the remote con-
trol indication also will change.
2
Double-flow
Ceiling Suspended
Multi-flow
4PEN448940-1A.book Page 8 Thursday, August 25, 2016 11:23 AM
