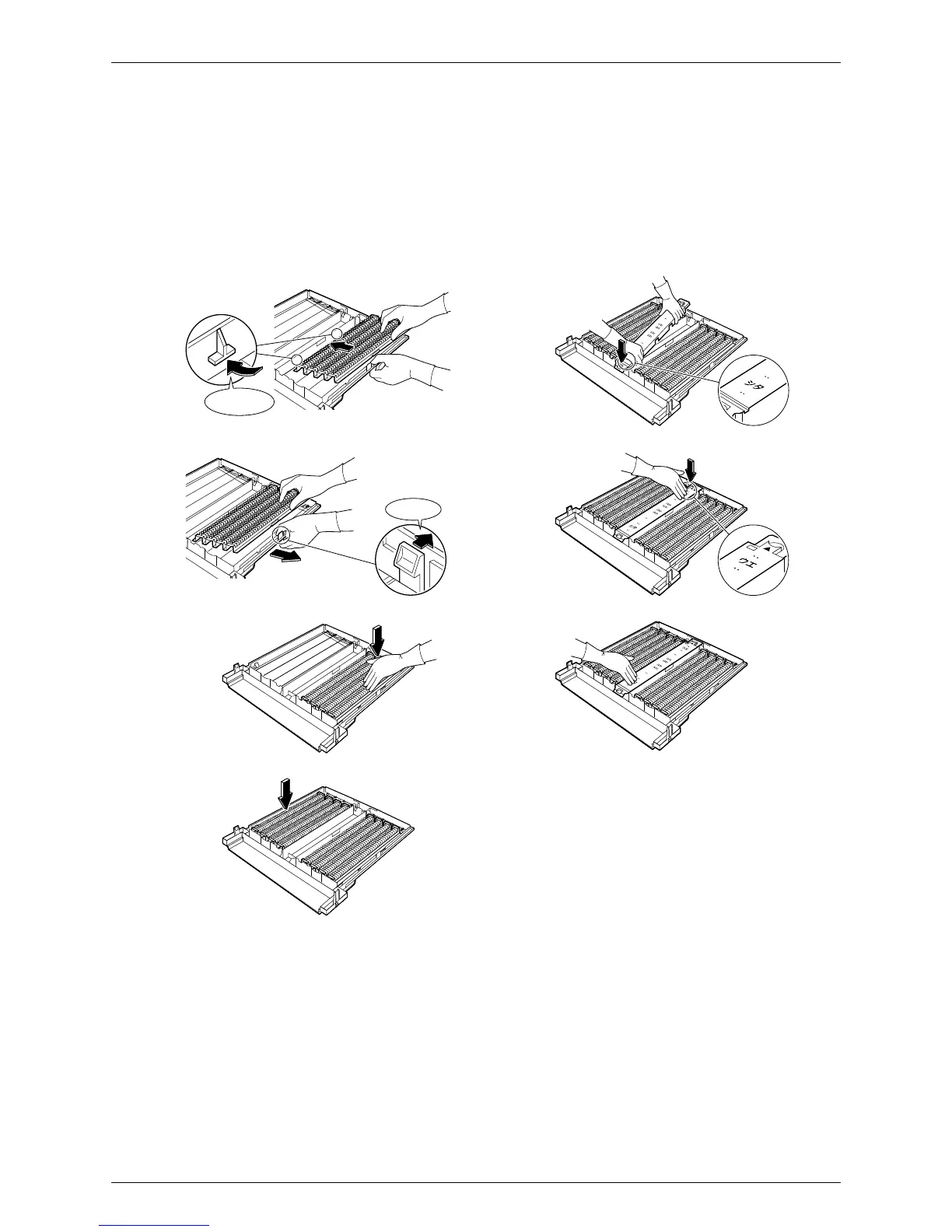

Assembling the plasma ionizer
1. Attach the opposing pole plates.
1) Securely insert the opposing pole plate into the hooks (2 locations
in the middle) of the plasma ionizer.
2) Attach the opposing pole plate while opening the knobs (one at a
side) of the plasma ionizer.
3) Insert securely until it clicks.
4) Attach another side of the opposing pole plate.
2. Attach the streamer discharger.
1) Insert bottom of the streamer discharger to the ionizer frame.
2) Insert top of the streamer discharger.
3) Confirm if it is attached securely.
Insert downward
Open

