Daikin MC707VM-S - Page 51

50 Photocatalytic Air Purifiers
Removal Procedure SiBE81-623A
Procedure Points

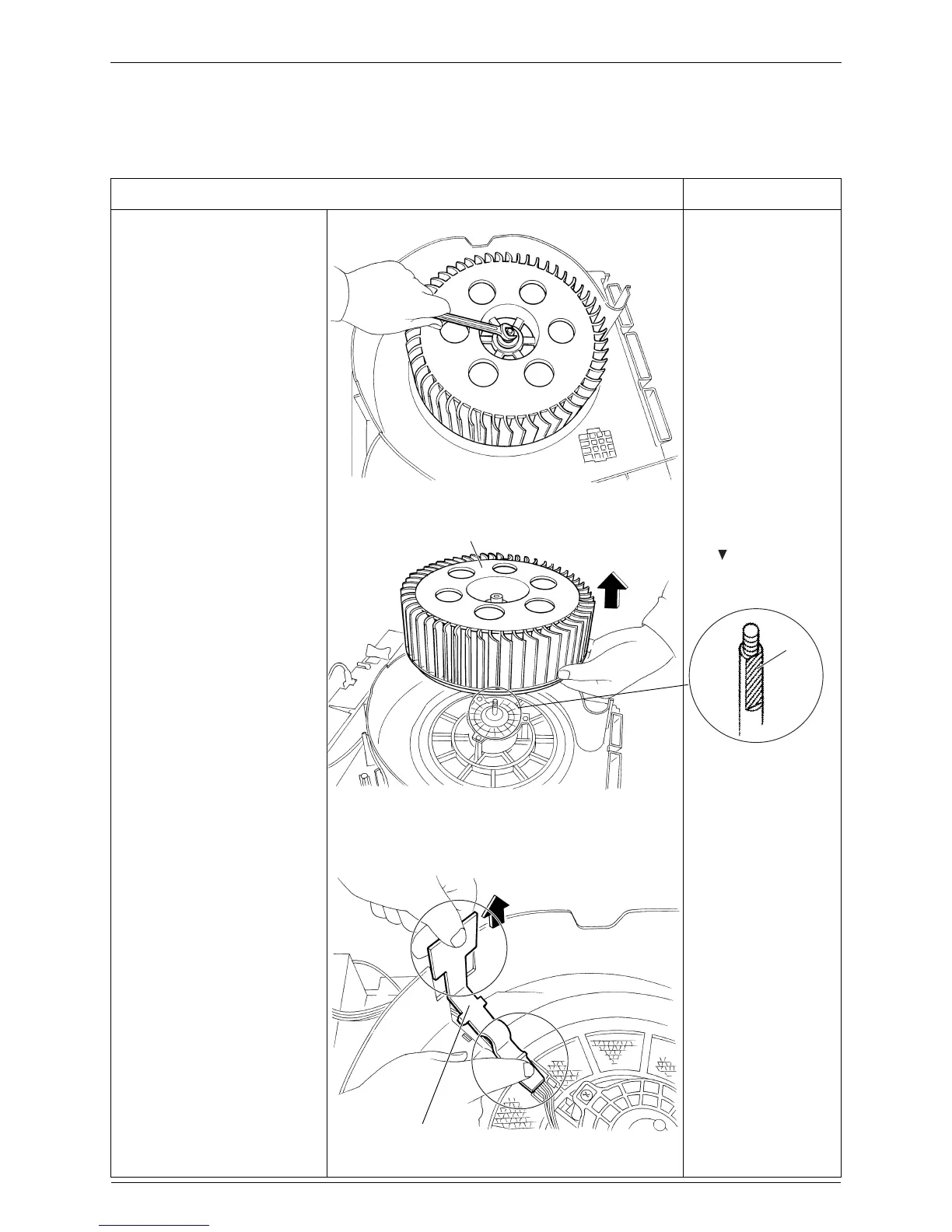

(4) Remove the nut and
pull out the fan.
* When assembling, align
the mark on the fan
with the D cut on the
motor shaft.
(5) Lift and detach the
harness retainer.
(6) When assembling,
put part A first in the
groove, and then
slide part B along the
way.
D cut
Fan
Part A
Part B
Harness retainer
