Photocatalyt
ic Air Purifiers
Removal Procedure
SiBE81-623A
Procedure
Points

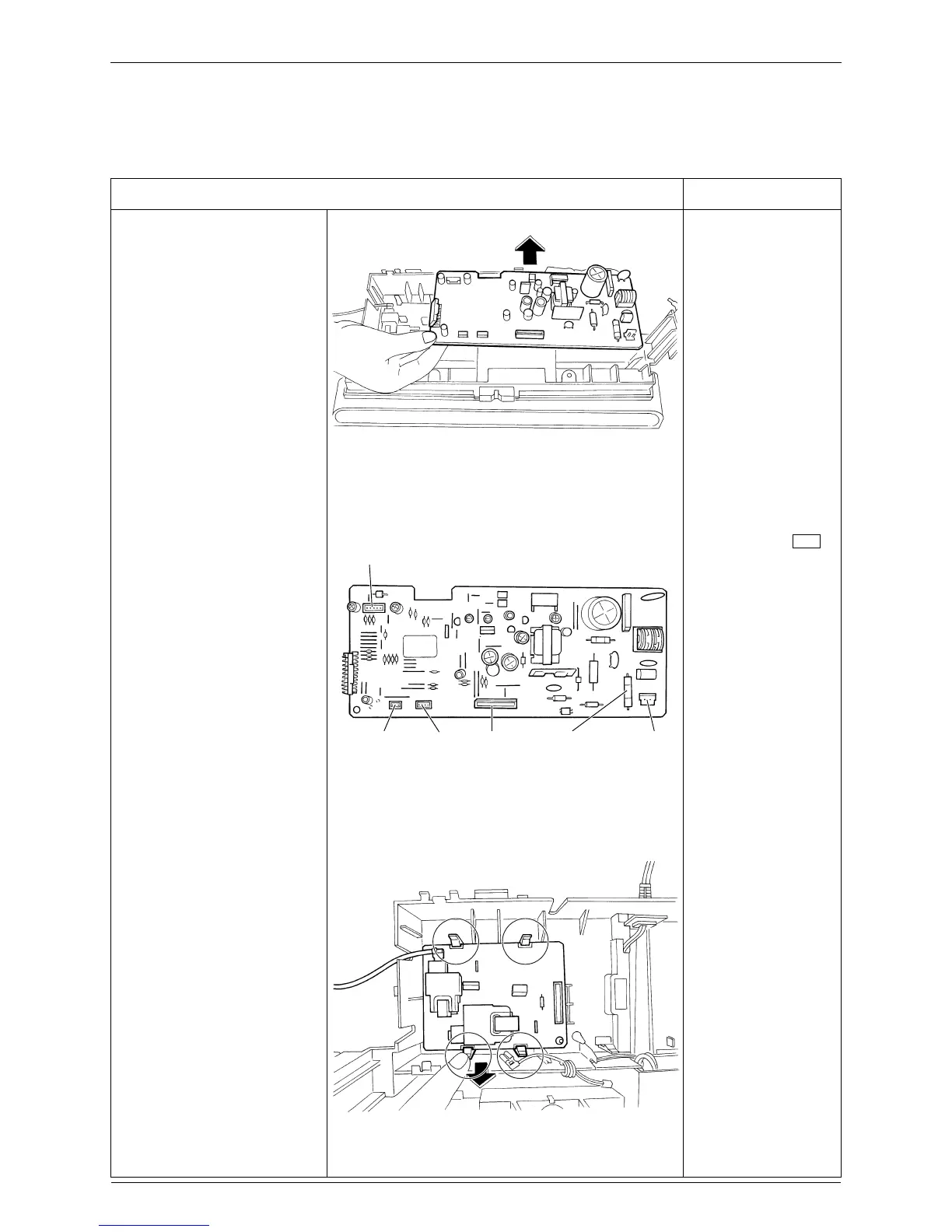

(6) The figure at right
shows the power
supply and control
PCB.
* Lead-free solder PbF is
used.
(7) Undo the 4 hooks to
remove the high
voltage PCB (HVU).
S1
S35
S129
S127
S8
Fuse
AC250V 3.15A
56
58
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
3
2 Precautions for Use
9
Required Conditions
9
Applicable Room Area
9
3 Specifications
10
Dimensions
11
Wiring Diagram
12
Packaging Drawing
13
4 Operation Manual
14
Safety Precautions
14
Names and Operation of each Part
15
Main Unit Display
16
Preparation before Operation
17
How to Operate
19
Care and Cleaning
20
Sensitivity Settings of the Dust Sensor
27
Troubleshooting
28
5 Optional Accessories
29
Dimensions
29
6 Troubleshooting
30
Basic Inspection
30
Troubleshooting
31
7 Removal Procedure
36
Removal of the Front Panel / Filters
36
Removal of Streamer Electric Discharge Unit
45
Removal of Lonizing Wire
47
Removal of Fan Motor
49
Removal of Electrical Box / PCB
53
