OM 1085-6 • MICROTECH III CONTROLLER 14 www.DaikinApplied.com

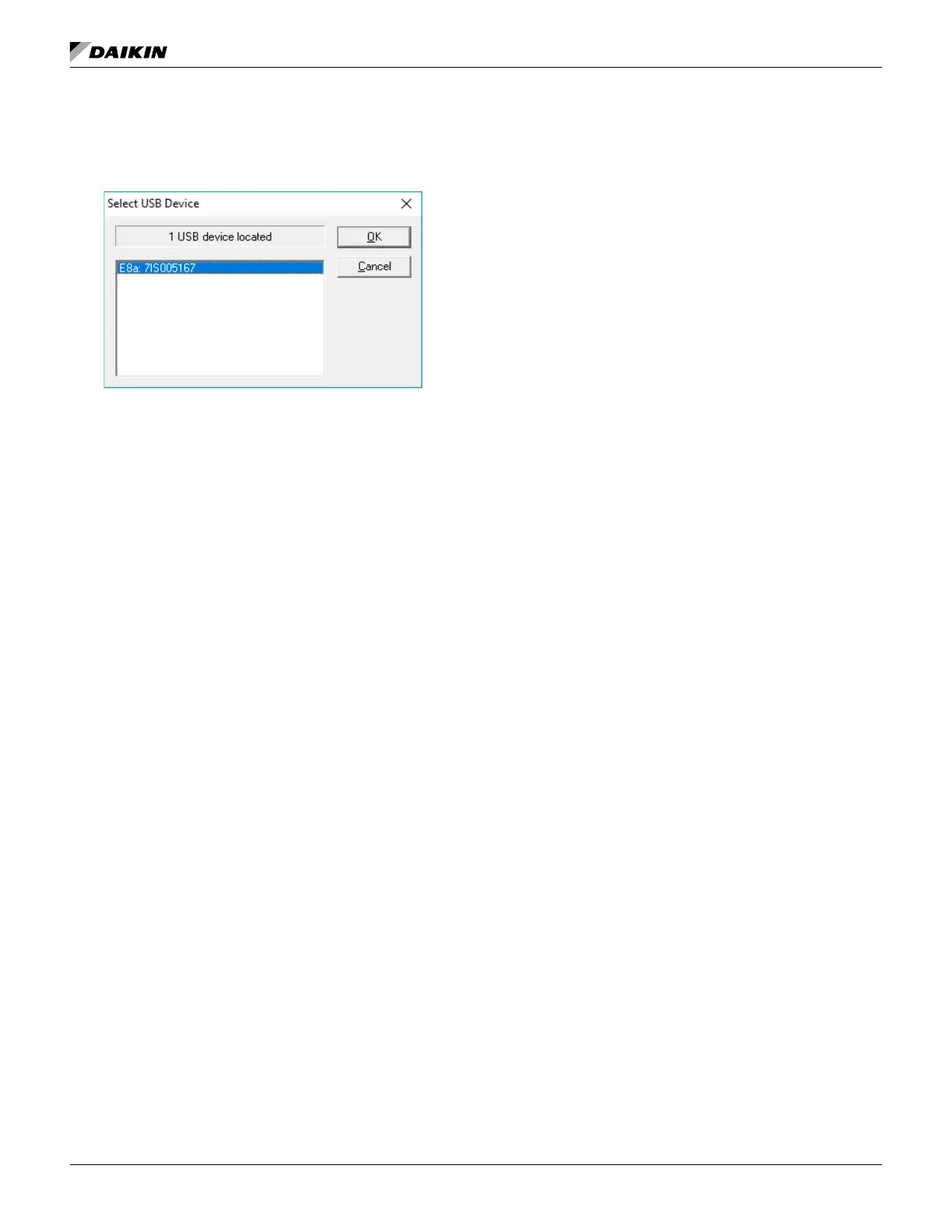

From the Select USB Device menu (Figure 21):
30. Select the E8a interface and then click OK.
The download process begins and messages appear in the
status area at the bottom of the screen.
31.
messages are displayed. These messages indicate a
successful download.
32. Close the Renesas Flash Development Toolkit Simple
software.
33. Power down the unit controller.
34. Disconnect the E8a programming cable from the board.
35. Place the RUN/PRG jumper in the RUN position.
Programming is now complete, and the board is ready to use.
