OM 1085-6 • MICROTECH III CONTROLLER 16 www.DaikinApplied.com

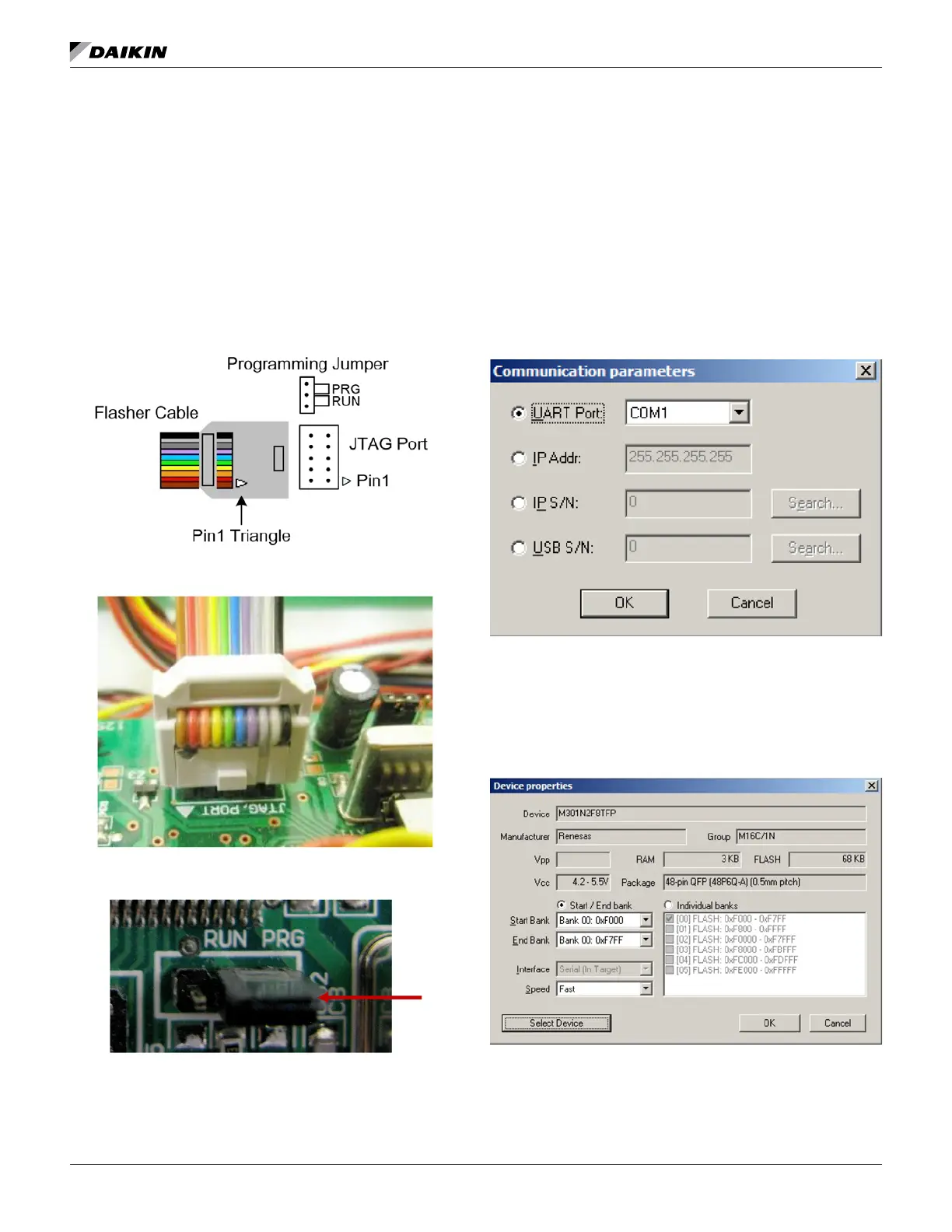

controller being downloaded, verify that the Programming
Jumper on the I/O expansion module is in the RUN
position.
10. If the I/O expansion module is being downloaded, verify
that the Programming Jumper on the unit controller is in
the RUN position.
11. Prior to launching Flasher, check the communication port
(i.e. COM1 or COM2) to which the Flasher5 hardware
is connected. The port number is required for Step 13.
Follow these steps to determine the port number:
Jumper
12. Navigate to the Control Panel and select System/
Hardware/Device Manager/Ports.
13. Verify the communication port shown (i.e. COM1, COM2,
etc).
14. Launch the Flasher program from the desktop shortcut
icon.
15.
since installing the Flasher program, it is necessary to
proceed to Step 24. Otherwise, follow Steps 16-23.
16. Go to the Options menu and select Communications.
Select the communications port (as determined from
Step 13) as shown in Figure 27 and then click OK.
17. Navigate to the Options menu
a. Click on Device.
b. Click Select Device in the Device Properties
window. See Figure 28.
When the Select Device window shown in Figure 29 appears:
17. Select Renesas in the Manufacturer drop-down box.
18. Select M38507 in the Group drop-down box.
