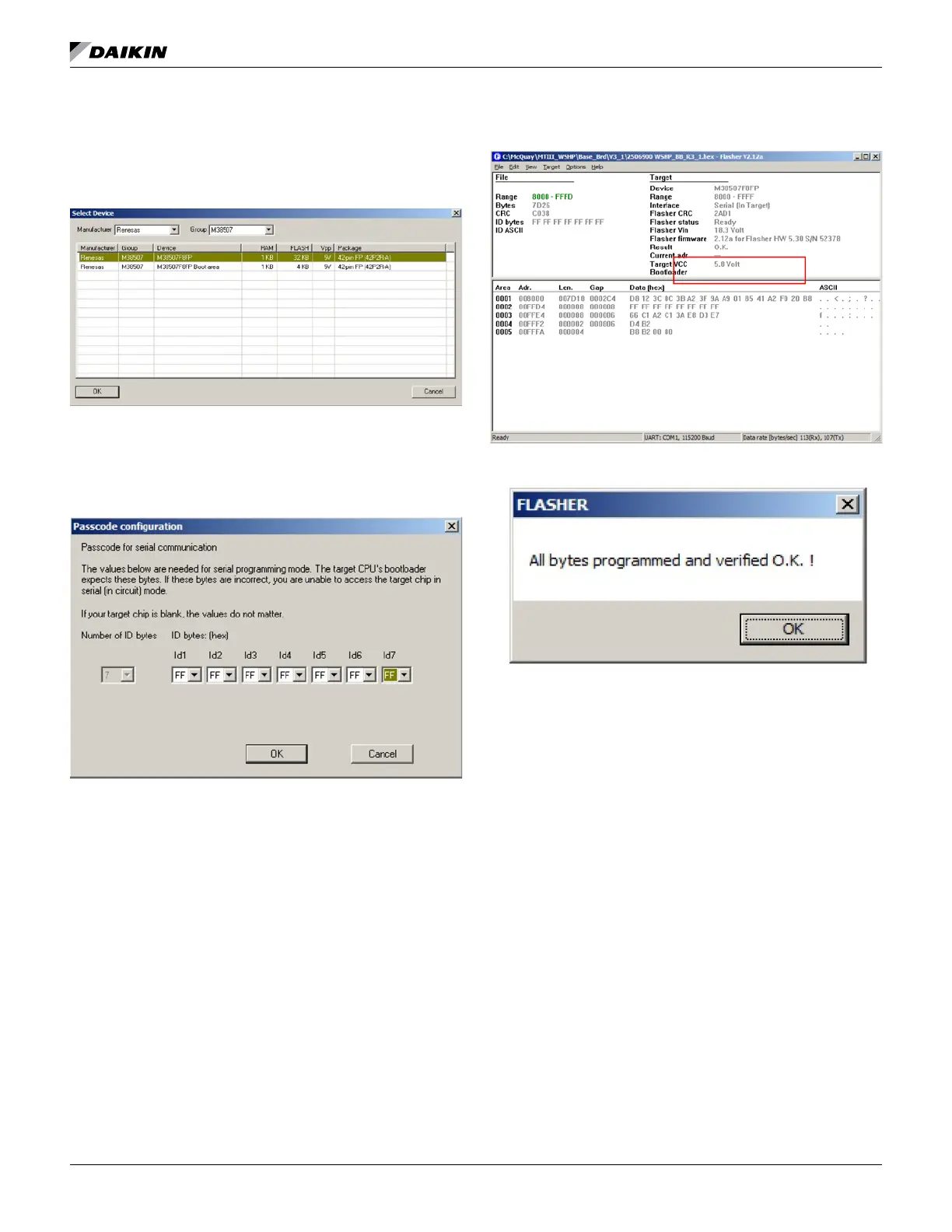

19. Highlight the device M38507F8FP with 1KB RAM and
32KB FLASH and then click the OK button twice.
20. Navigate to the Options menu and select Passcode.
21.
Figure 30.
22. Click the OK button.
23.
should change to approximately 5.0 Volts as shown in
Figure 31. If it does not, check the connection between
the Flasher5 hardware and unit controller to verify that
the cable is installed properly.
24.
a. Go to the File menu and select Open.
b.
screen should populate as indicated in Figure 31.
25. To begin the download, select the Target menu and click
Program and Verify. After a successful download, the
screen shown in Figure 32 appears.
26. Remove power from the unit controller and disconnect
the Flasher5 hardware.
27. Switch the programming jumper back from the PRG
position to the RUN position.
28. Repeat steps 1-28 to complete this process for the I/O
expansion module, if one is attached.
29. After both the unit controller and I/O expansion module
have been programmed, return the unit controller
before step 6.
