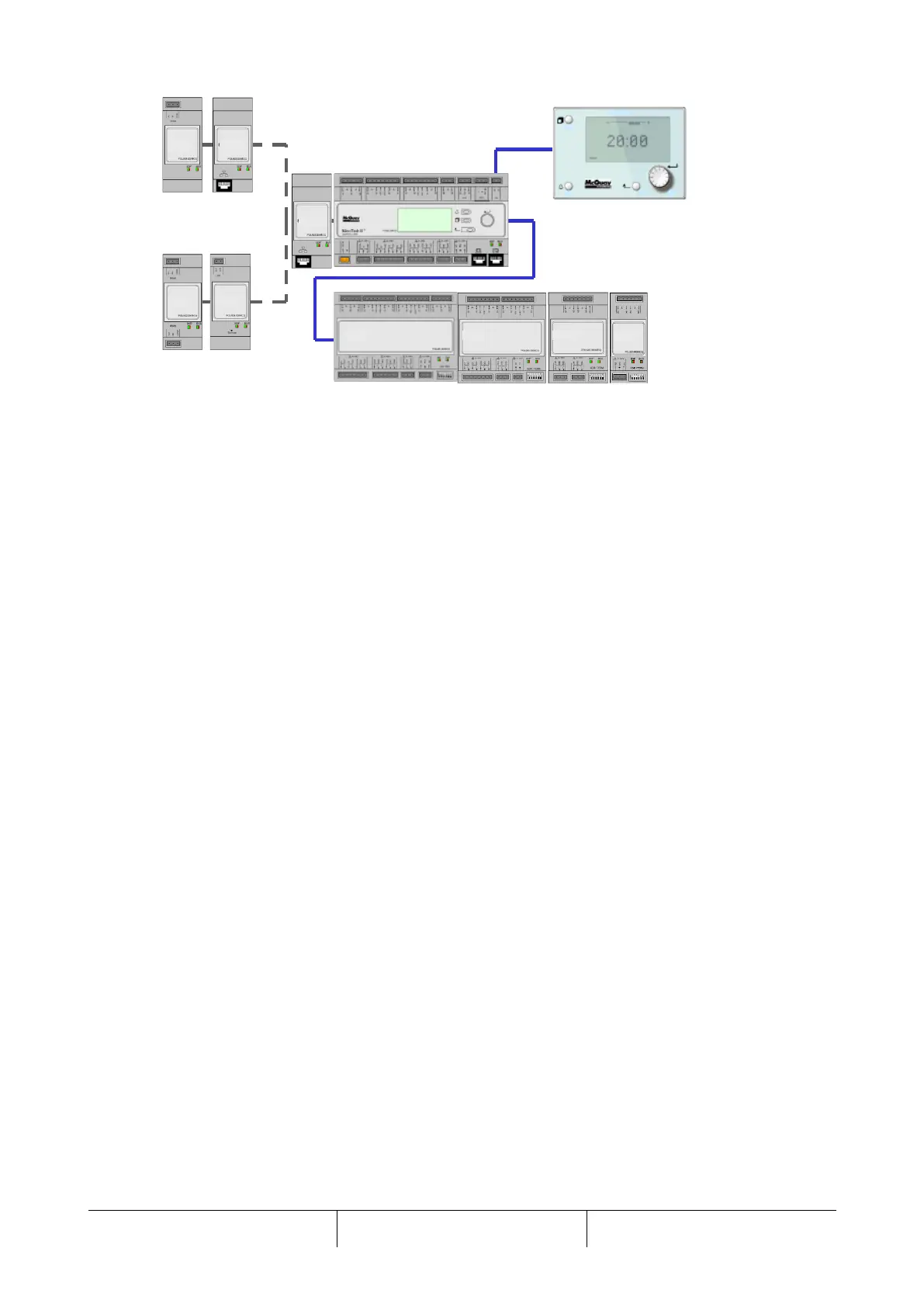

Figure 3, hardware structure
4.3.2 System Architecture
The overall controls architecture uses the following:
• One Microtech main controller
• I/O extension modules as needed depending on the configuration of the unit
• Optional BAS interface as selected
Communication Cards
BACnet/IP
BACnet/
MSTP
MODbus
LON
Remote Operator Interface
MicroTech III Unit Controller
Extension I/O Modules
AWC
