IM 1285-4 • MICROTECH III 12 www.DaikinApplied.com
Mount the DAT, RAT, MAT, and EWT temperature sensors in
the correct location. Guide the wires for each sensor into the
control panel. Use the sensor plate and plastic sensor support
when installing the DAT and RAT sensors. Follow the wiring
diagram in Figure 16.
The RAT sensor needs to be mounted far enough
down the duct to avoid being inuenced by the
outside air temperature.

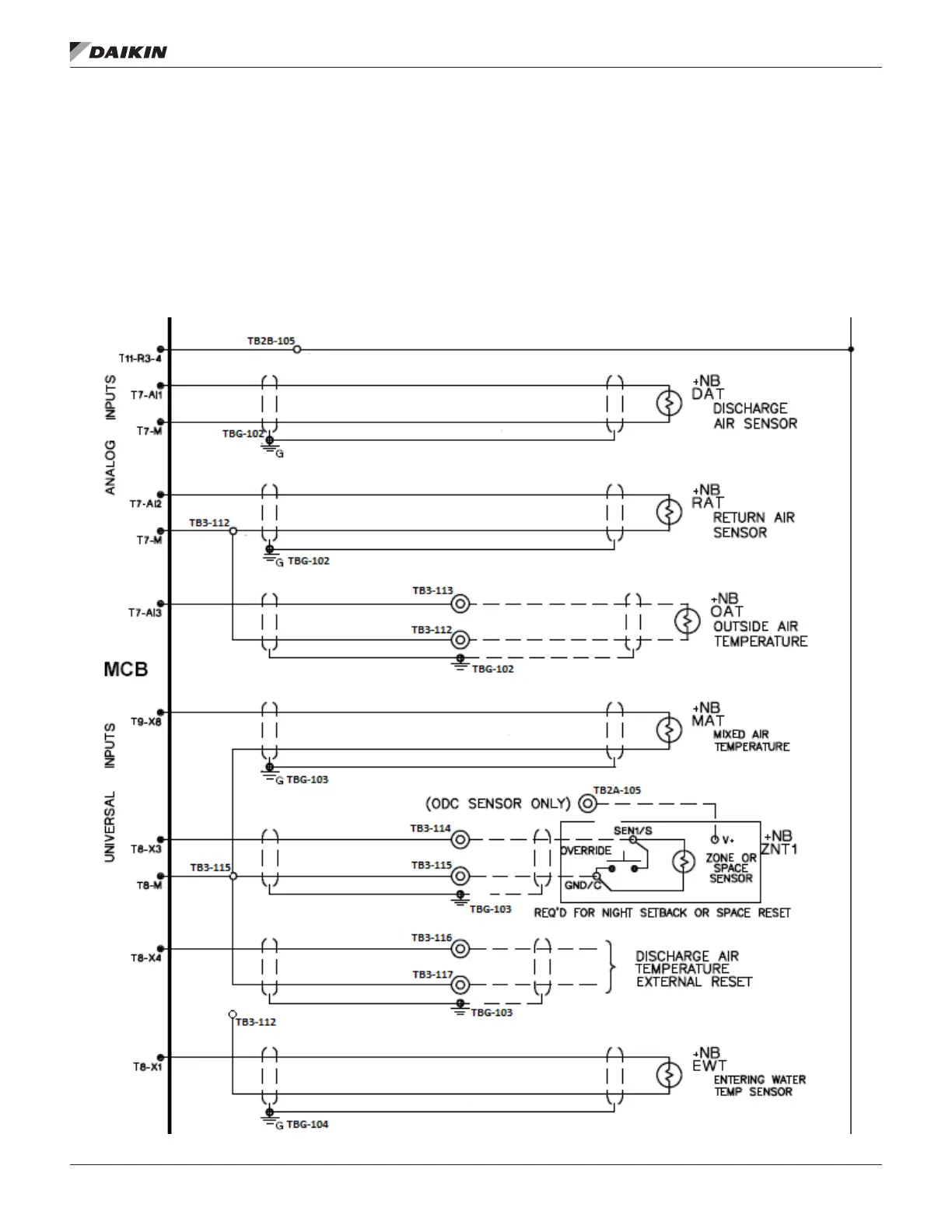

Figure 16: Sensor Wiring Diagram
