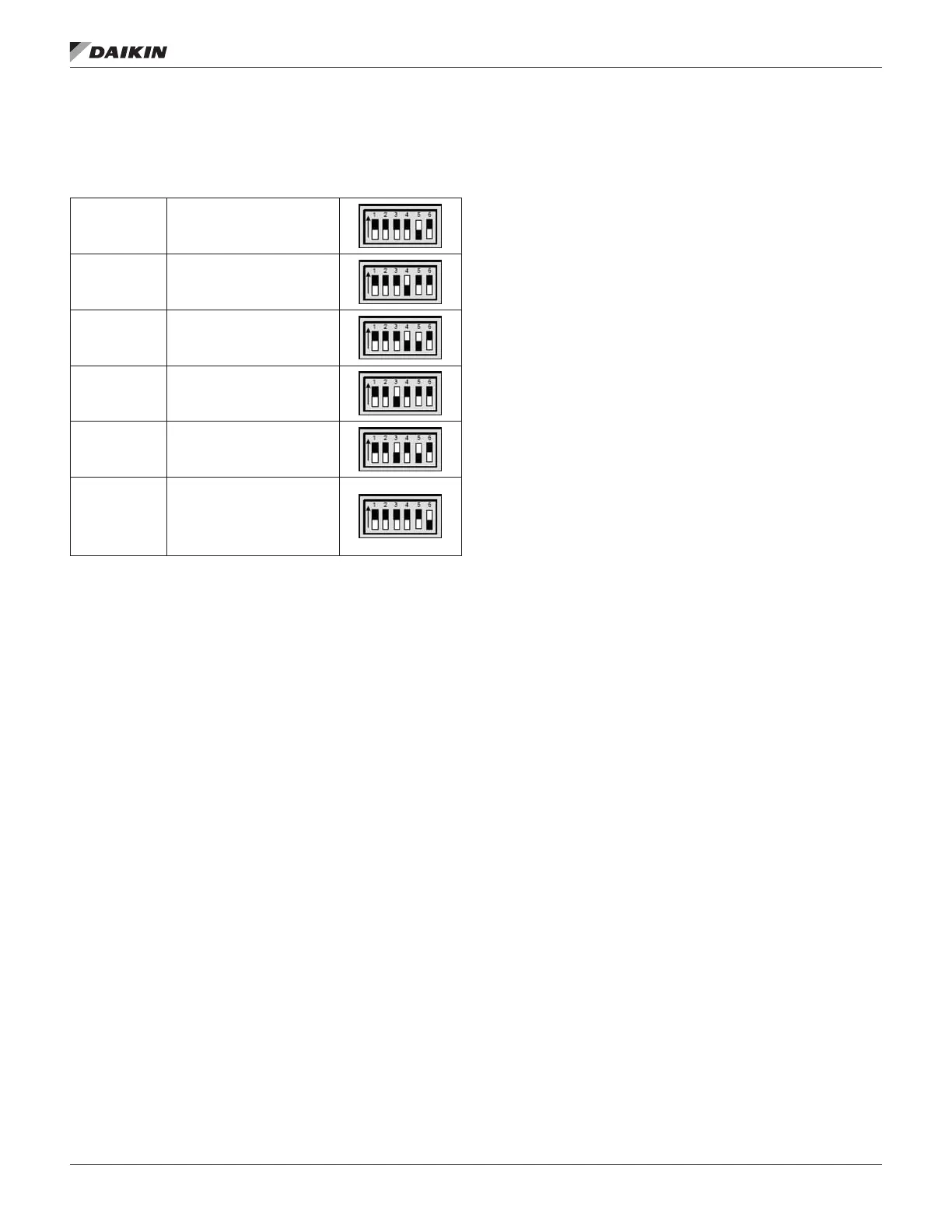

Figure 25: Dip Switch Settings
Expansion
Board A
Switch #5 in the up
position (all others down)
Expansion
Board B
Switch #4 in the up
position (all others down)
Expansion
Board C
Switch #4 and #5 in the
up position (all others
down)
Expansion
Board D
Switch #3 in the up
position (all others down)
Expansion
Board E
Switch #3 and #5 in the
up position (all others
down)
Dipswitch #6
Switch #6  be in the
up position on the last
expansion board in the
string regardless whether
it is A, B, C, D, or E.
