Si011360EC Outdoor Fan / Fan Motor
Removal Procedure 3

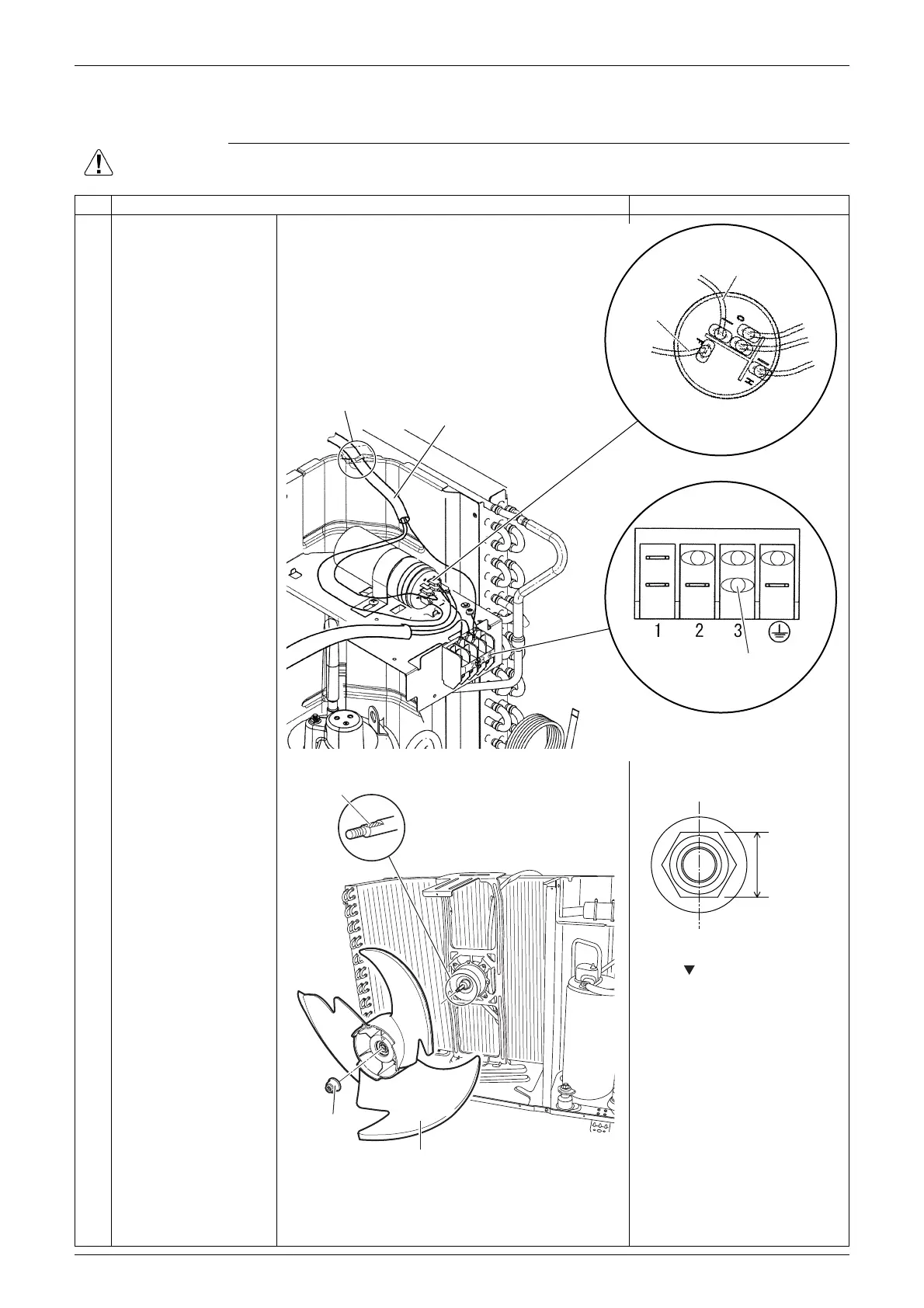

2. Outdoor Fan / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1
2
3
Pull out the 2 terminals
(red, white) from the
capacitor (C1).
Pull out the terminal
3 (front, black) from the
terminal board (X1M).
Release the fan motor
lead wire from the hook.
4 Remove the nut, and
then the outdoor fan.

Nut size: M6

When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
Hook
Fan motor lead wire
(R20991)
(R23464)
from fan
motor:
white
from fan motor:
red
Terminal board (X1M)
Capacitor (C1)
from fan motor:
black
(R23465)
Outdoor fan
Nut
D-cut
(R23466)
10 mm
(0.39 inch)
(R18954)
