IM 893-10 • ROOFPAK SINGLEZONE UNITS 6 www.DaikinApplied.com
InTroduCTIon
Refrigeration Piping
This section presents the unit refrigeration piping diagrams for
the various available congurations.

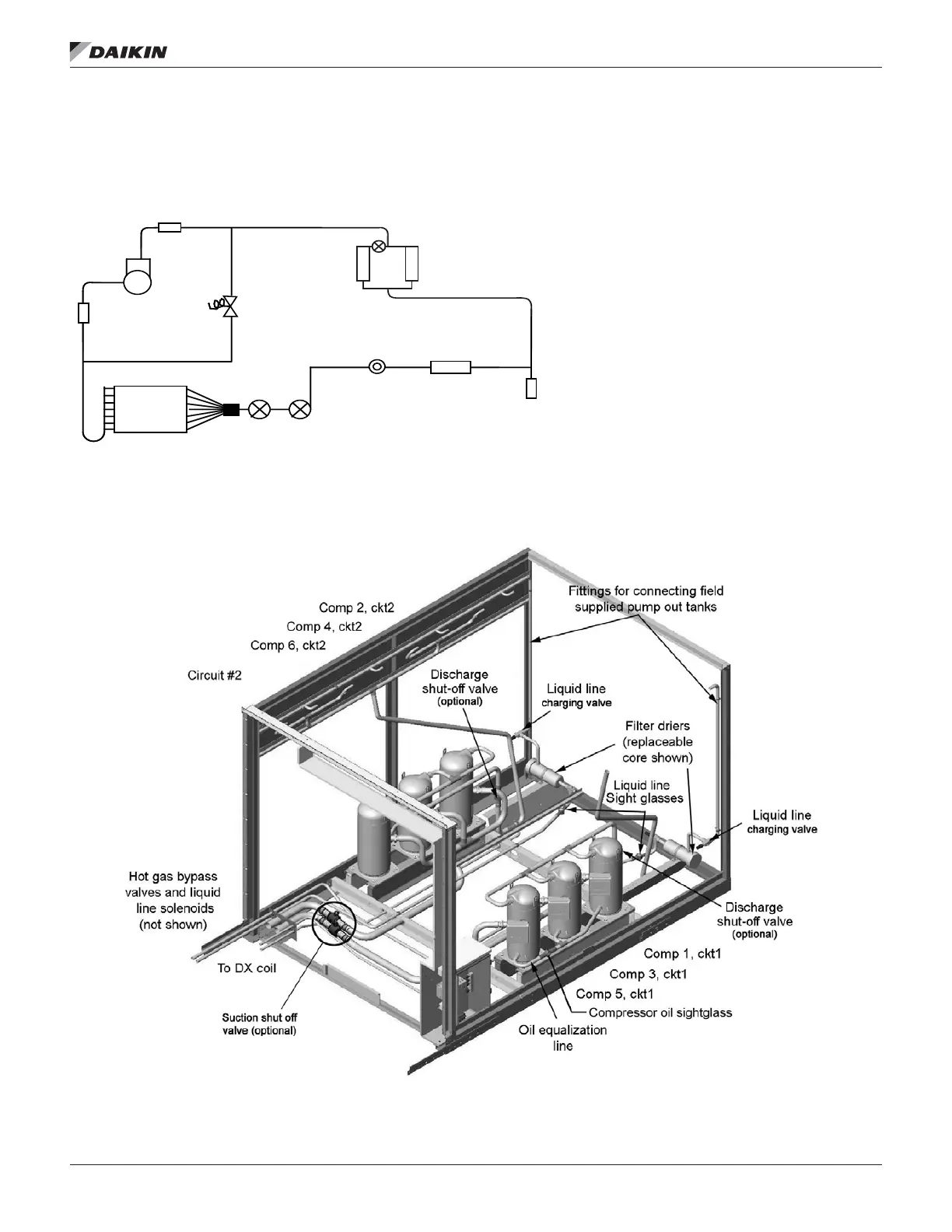

Figure 5: Circuit Schematic
Figure 6: Condenser Piping, Scroll Compressors, 2 to 3 Compressors per Circuit are Provided (6 Compressors* Shown)
B
A
J
D
L
K
N
M
H F I
E
P
P
O
A Compressor (1, 2, or 3 per circuit) †
B Discharge line †
C Condenser coil †
D Evaporator coil *
E Manual charging/evacuation valve †
F Filter-drier †
H Sightglass †
I Liquid line *†
J Suction line *†
K Thermal expansion valve *
L Distributor *
M Drop solenoid valve *
N Hot gas bypass valves (optional) *
O Hot Gas bypass piping (optional) *†
P Manual shutoff valve (optional)
Q Condenser Coil Splitter Solenoid Valve**
*Supplied on RFS units
**Variable Speed Inverter Compressor Unit Only
†Supplied on RCS units
Q
C
* Unit with Fixed-Speed Compressors shown
