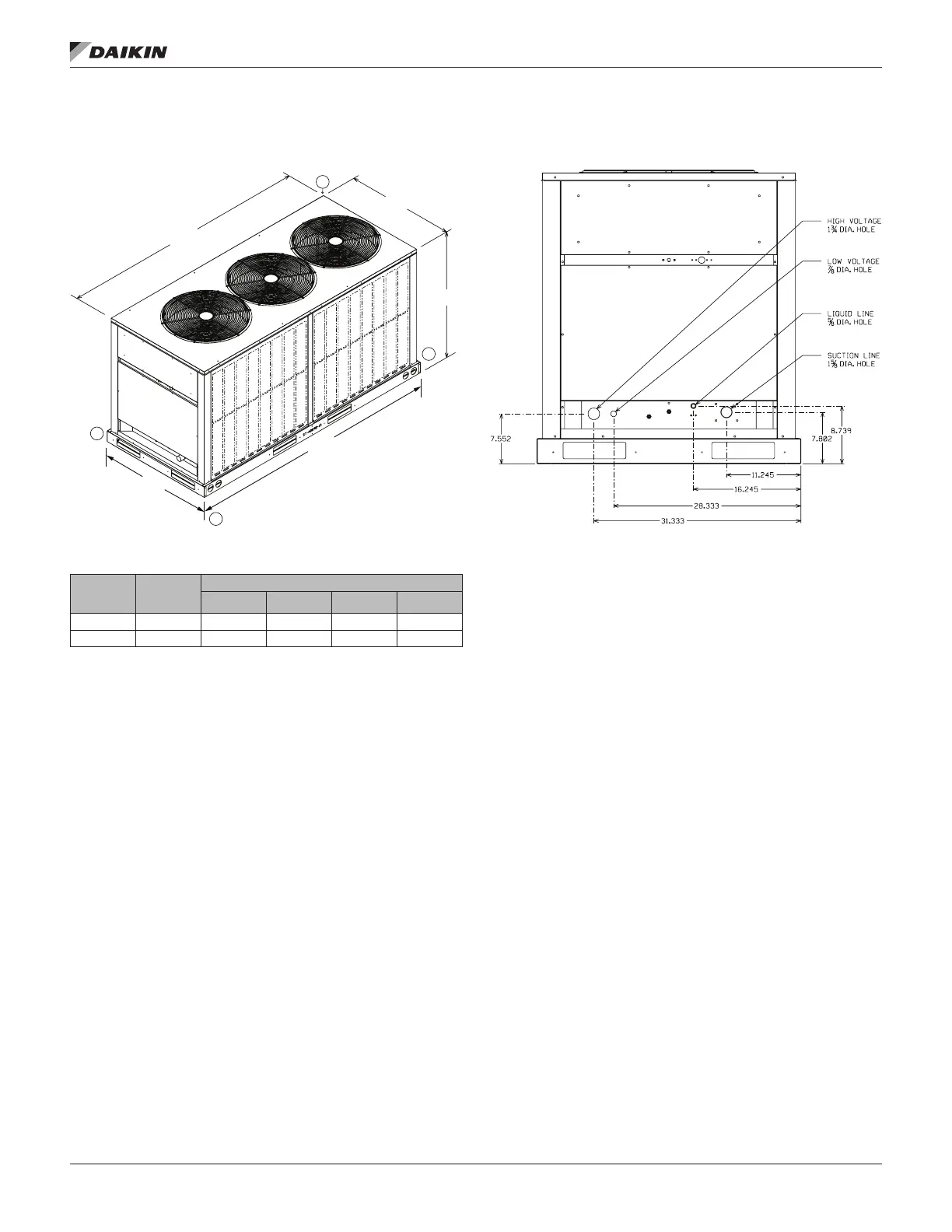

Figure 5: RCS 15F – 20F Dimensions and Weights
Table 4: RCS 15F and 20F Operating Weights
RCS
model
Total
weight
lbs. [kg]
Corner weight lbs. [kg]
A B C D
15F 746 [338.0] 183 [83.0] 196 [89.0] 177 [80.0] 189 [86.0]
20F 952 [432.0] 234 [106.0] 251 [114.0] 226 [103.0] 241 [110.0]
A
D
C
B
CONTROL
PANEL ACCESS
85.515
39.94
83.875
38.375
44.75

www.DaikinApplied.com 7 IM 962-4 • AIR-COOLED SPLIT SYSTEM CONDENSERS
