Dimensional and Weight Data

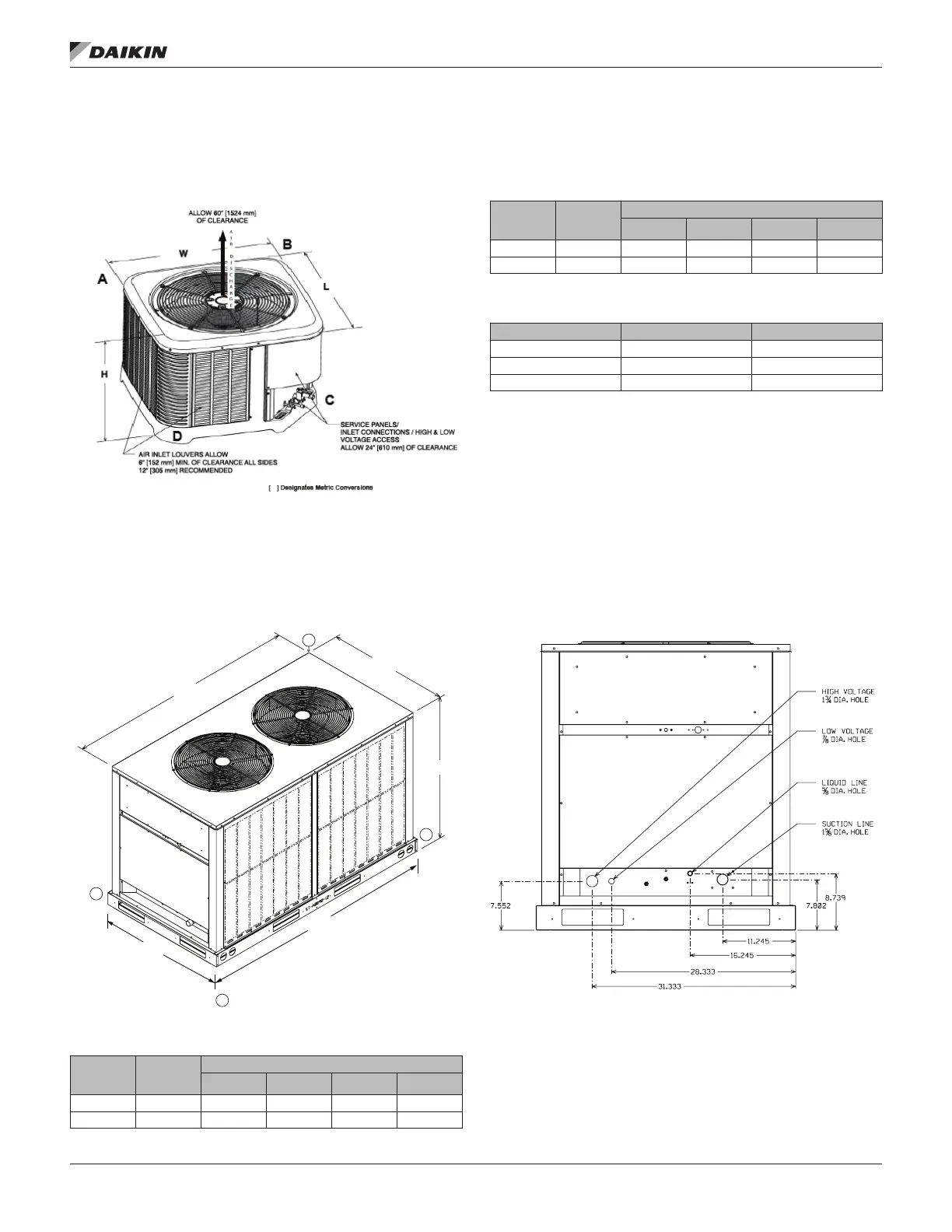

Figure 3: RCS 06G and 07G Dimensions and Weights Table 1: RCS 06G and 07G Operating Weights
RCS
model
Total
weight
lbs. [kg]
Corner weight lbs. [kg]
A B C D
06G 291 [132] 50 [22.7] 73 [33.1] 69 [31.3] 99 [44.9]
07G 318 [144] 53 [24.0] 84 [38.1] 71 [32.2] 110 [49.9]
Table 2: RCS 06G and 07G Unit Dimensions
RCS06G RCS07G
Height “H” Inches [mm] 45[1143] 51 [1295]
Length “L” Inches [mm] 35.75 [908] 35.75 [908]
Width “W” Inches [mm] 35.75 [908] 35.75 [908]
Figure 4: RCS 10G and 12F Dimensions and Weights
Table 3: RCS 10G and 12F Operating Weights
RCS
model
Total
weight
lbs. [kg]
Corner weight lbs. [kg
A B C D
10G 557 [253] 137 [62.0] 148 [67.0] 131 [59.0] 142 [64.0]
12F 650 [293] 160 [72.0] 171 [78.0] 154 [70.0] 165 [75.0]
B
A
C
D
CONTROL
PANEL ACCESS
39.94
75.54
72.375
44.75
38.375
