Si001416E Outer Panels
Removal Procedure 3
5
6

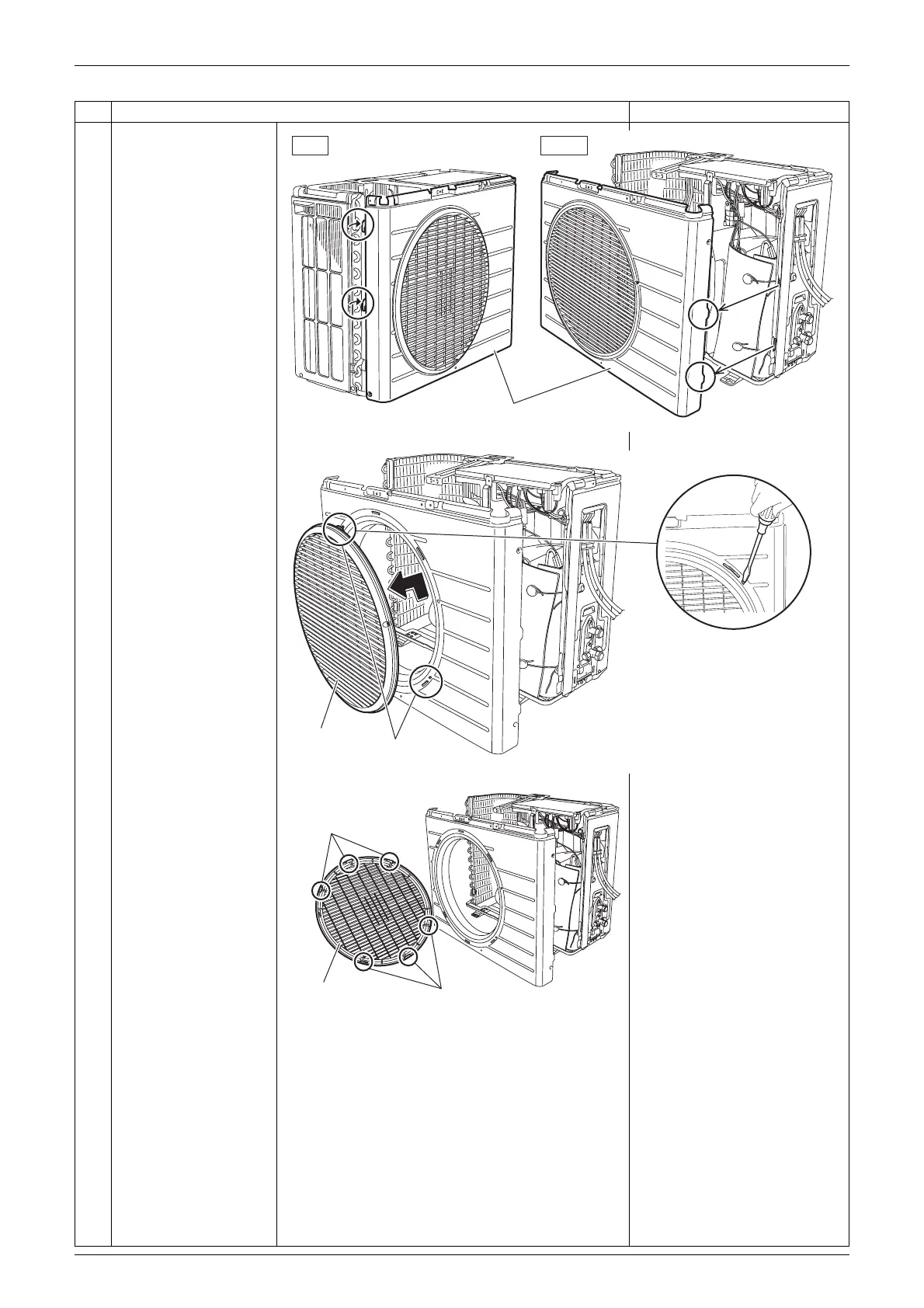

Lift up the left side and
unfasten the 2 hooks.
Unfasten the 2 right
side hooks and remove
the front panel.
7 Press the 2 projections
from the rear side and
rotate the discharge
grille.
8 Unfasten the 6 hooks
and remove the
discharge grille.
Step
Procedure Points
Left
Right
Front panel
(R21288)
Rear side
Projection
(rear side)
Discharge
grille
(R21289)
Hook
Discharge
grille
Hook
(R21290)
