Outer Panels Si001416E
2 Removal Procedure
1. Outer Panels
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1
2
Remove the screw of
the stop valve cover.
Pull down and remove
the stop valve cover.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 3 hooks.
3
4
Remove the 3 screws
and remove the top
panel.
Remove the 6 screws
of the front panel.

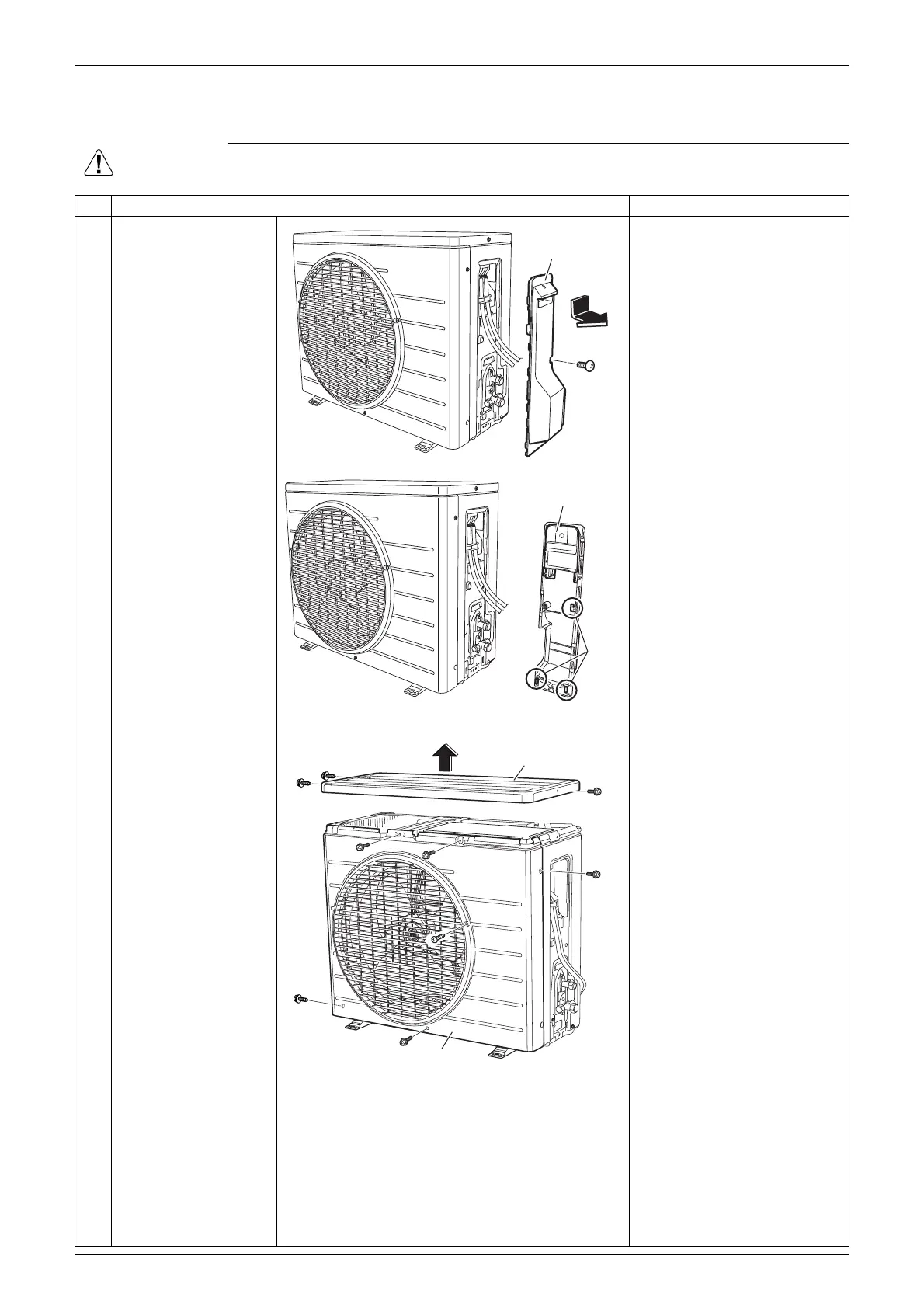

Stop valve
cover
(R21285)
Hook
Shield plate
(R21286)
Top panel
Front panel
(R21287)
