Daikin RKC09NV2S - Page 9

Si001416E Electrical box
Removal Procedure 7

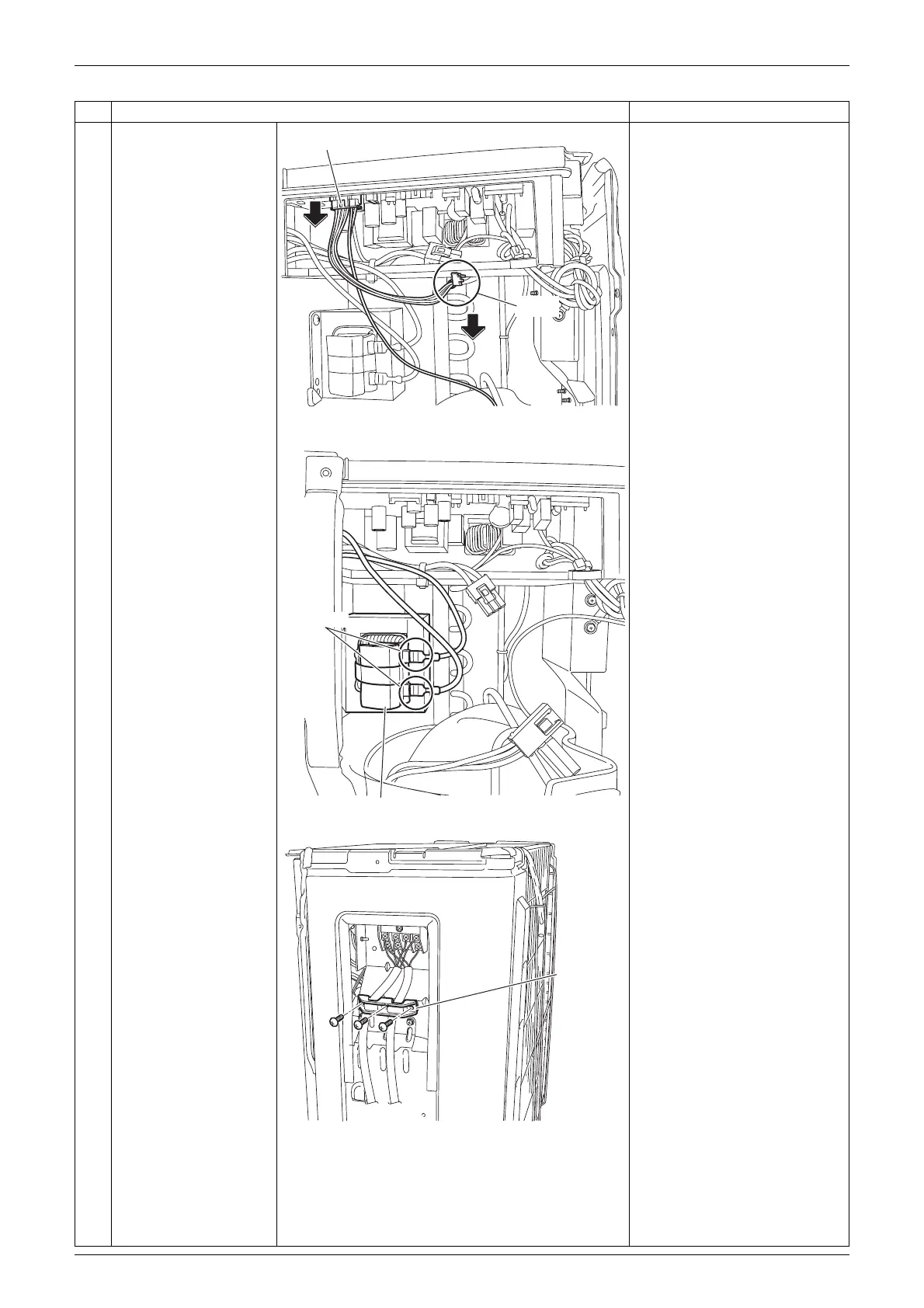

4 Disconnect the
connector [S90] and
pull out the clamp.
[S90]: thermistors
5 Disconnect the 2
connectors from the
reactor.

When reassembling, you
can reconnect the 2
connectors for the reactor in
either way regardless of the
color.
6 Remove the 3 screws
and remove the wire
fixture.
Step
Procedure Points
Clamp
[S90]
(R21300)
Connector
Reactor
(R21301)
Wire fixture
(R21302)
