Daikin RKC35PVMV - Page 18

Electronic Expansion Valve Coil / Four Way Valve Si001560EB
16 Removal Procedure
2 Remove the screw, and
then the four way valve
coil.

The cooling only models
have no four way valve.
3 Remove the terminal
cover.
4
5
Remove the protection
bushing.
Disconnect the
compressor lead wires
and the overload
protector.

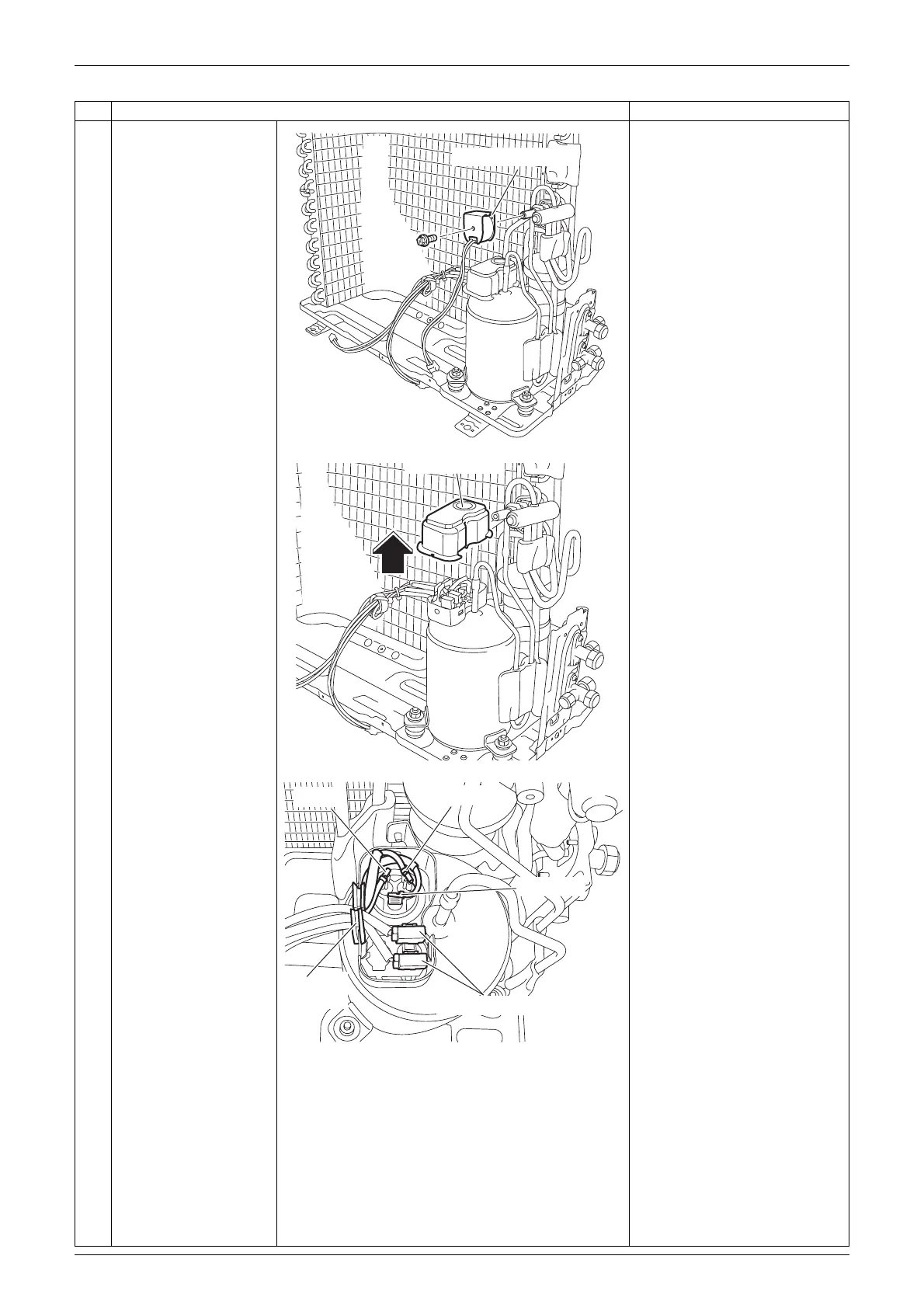

Step Procedure Points
Four way valve coil
(R22419)
Terminal cover
(R22420)
W ( blue)
V (yellow)
U (red)
Overload protector
Protection
bushing
(R22421)
