Daikin RKC35PVMV - Outdoor Fan; Fan Motor

Outdoor Fan / Fan Motor Si001560EB

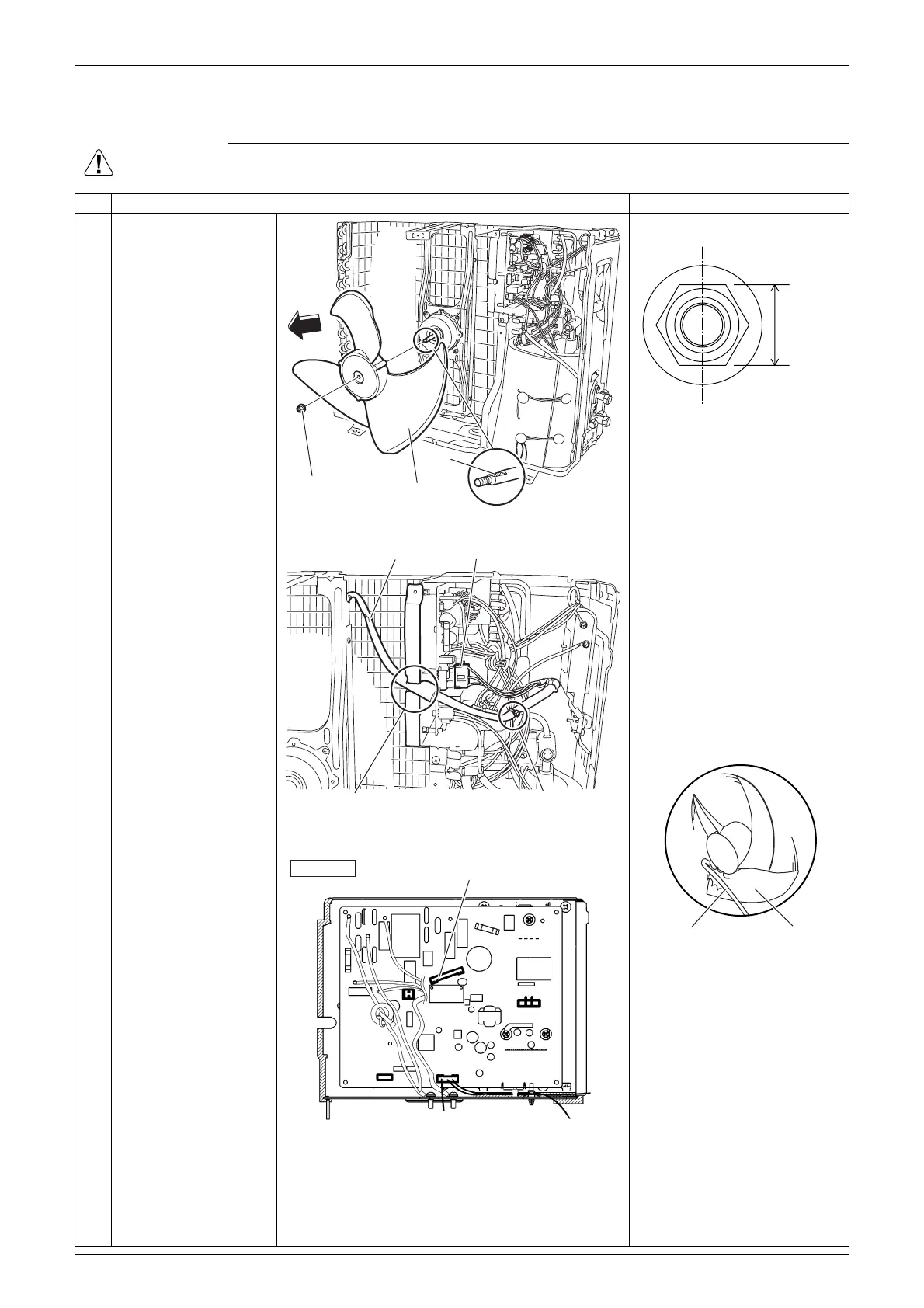

4 Removal Procedure
2. Outdoor Fan / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the nut, and
then the outdoor fan.

Nut size: M6

When reassembling, align
the mark of the outdoor fan
with the D-cut section of the
motor shaft.
2
3
Disconnect the
connector [S70] or
[S71] depending on the
model.
Cut the clamp and
release the fan motor
lead wire from the
groove.

In case of [S71] models
[S70]/[S71]: fan motor

The location of the
connectors [S70] and [S71]
is different.

When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
Outdoor fan
Nut
D-cut
(R22385)
10 mm
(0.39 inch)
(R18954)
Groove
Clamp
Fan motor lead wire [S70]
(R22386)
(R23995)
[S71]
Right View
Lead wire
Outdoor fan
(R3249)
