Daikin RKC35PVMV - Page 21

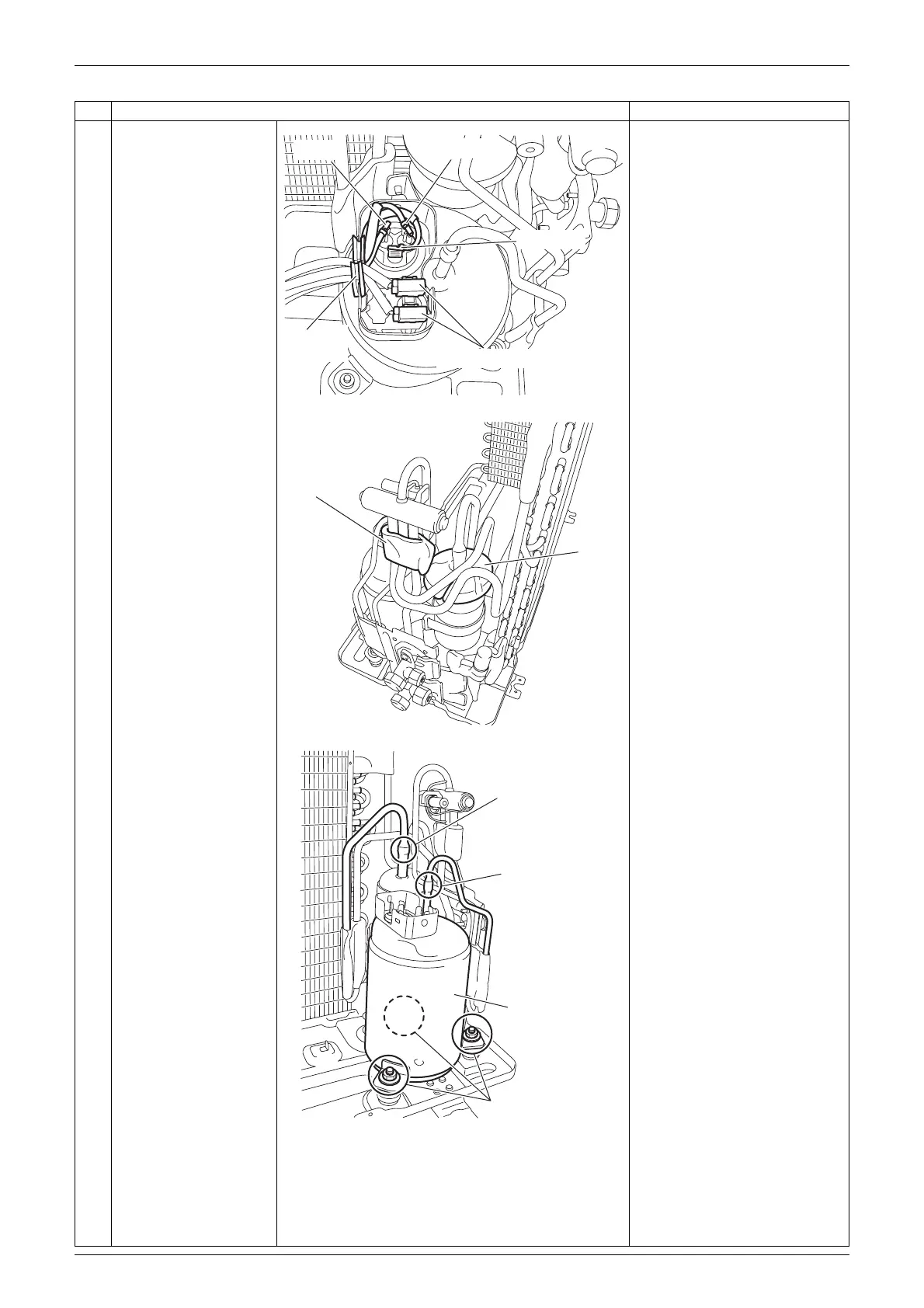

Si001560EB Compressor
Removal Procedure 19
2
3
Remove the protection
bushing.
Disconnect the
compressor lead wires
and the overload
protector.
4 Remove the putties.

The position of the putties
varies depending on the
model.
5
6
7
8
Heat up the brazed part
of the discharge side
pipe and disconnect it.
Heat up the brazed part
of the suction side pipe
and disconnect it.
Remove the 3 nuts.
Lift up the compressor
and remove it.
Step Procedure Points
W ( blue)
V (yellow)
U (red)
Overload protector
Protection
bushing
(R22421)
Putty
Putty
(R22422)
Compressor
Nut
Brazed part of the
suction side pipe
Brazed part of the
discharge side pipe
(R22425)
