Daikin RKS25EBVMV - Reactor; Partition Plate

Si001267EB Reactor / Partition Plate
Removal Procedure 9

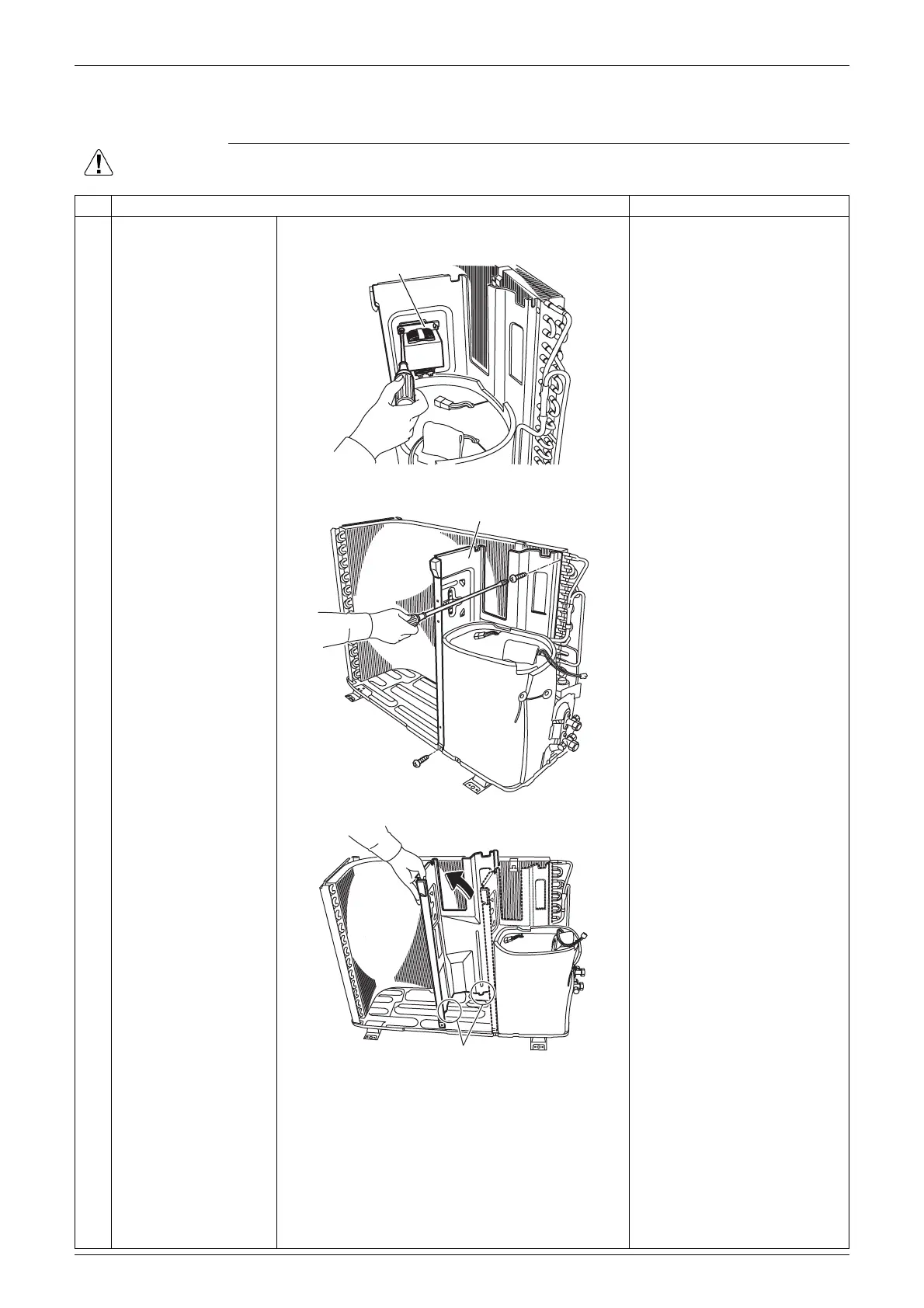

5. Reactor / Partition Plate
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1
Remove the screw and
remove the reactor.
2
Remove the 2 screws.
3
Remove the partition
plate.

The partition plate has 2
hooks on the lower side.
When reassembling, fit the
lower hooks into the bottom
frame.
Reactor
(R11879)
Partition plate
(R12273)
Hook
(R13508)
