Daikin RKS25EBVMV - Fan Motor

Fan Motor Si001267EB

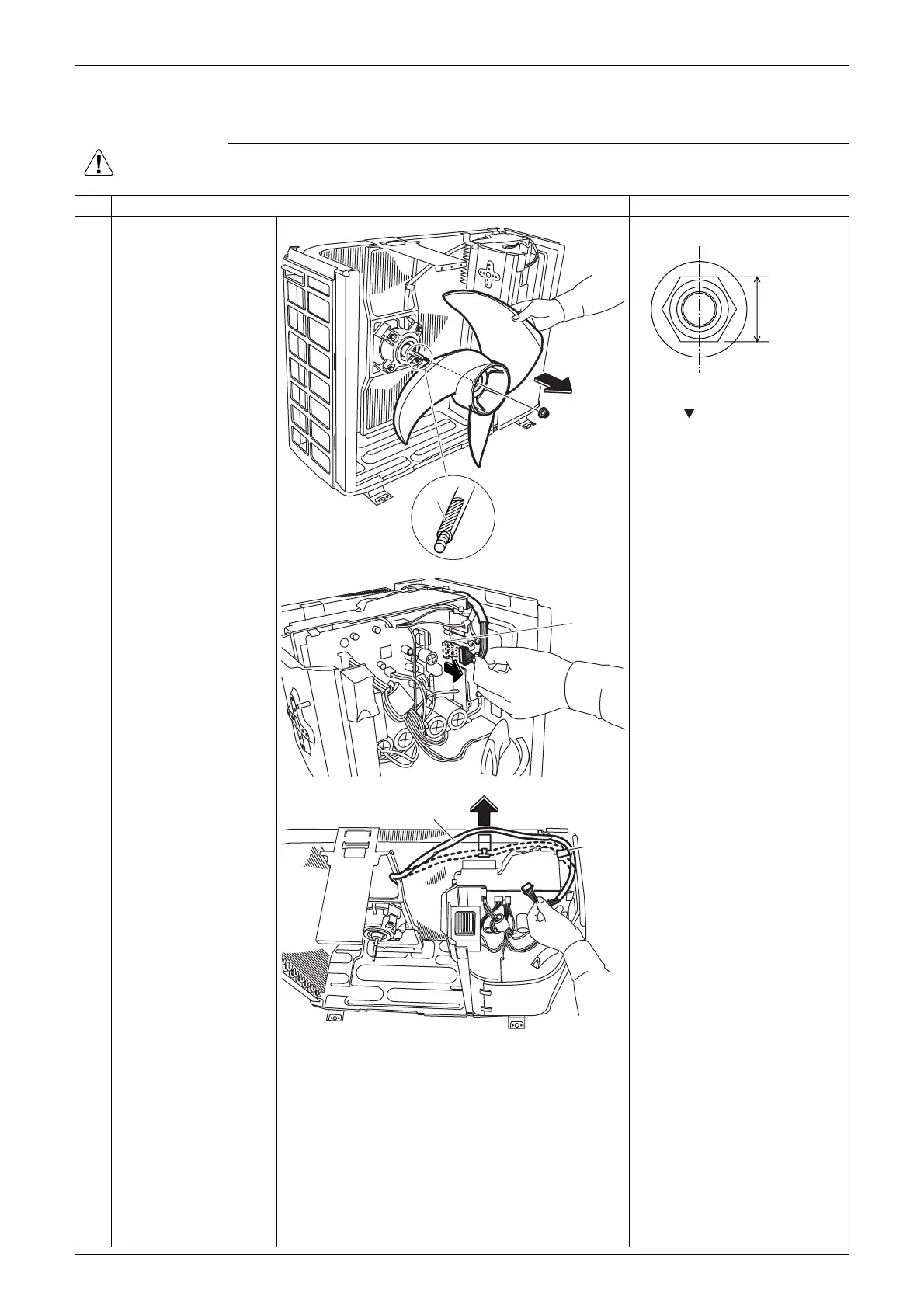

4 Removal Procedure
2. Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1
Remove the nut of the
outdoor fan.

Nut size: M6

When reassembling, align
the mark of the outdoor
fan with the D-cut section of
the motor shaft.
2
Remove the outdoor
fan.
3
Disconnect the
connector [S70].
[S70]: fan motor
4
Cut the clamp and
release the fan motor
lead wire from the hook.
D-cut
(R7197)
10 mm
(0.39 inch)
(R18954)
[S70]
(R7199)
Fan motor lead wire
Clamp
(R17217)
