Si001267EB Outer Panels
Removal Procedure 3
7

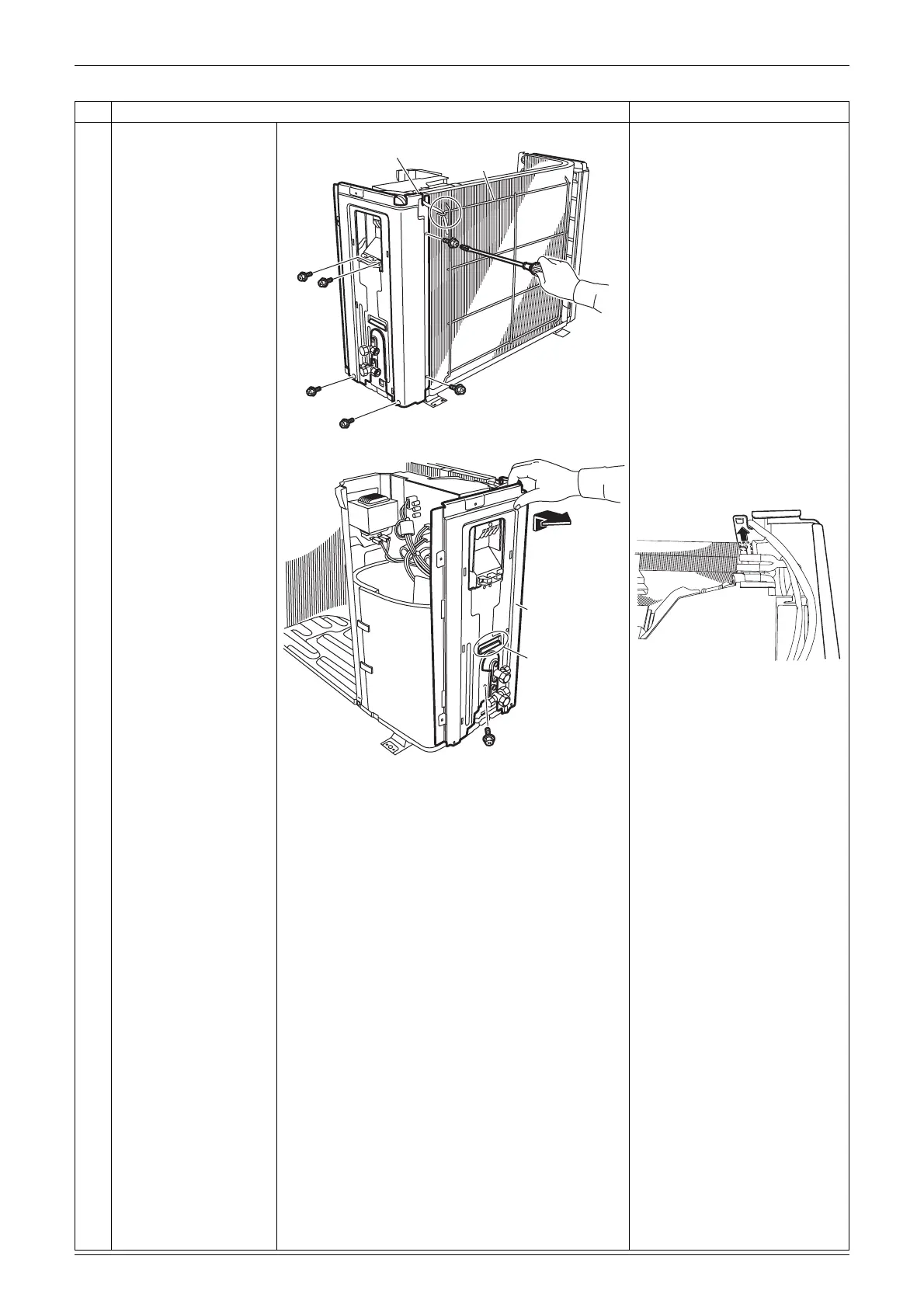

Remove the 6 screws
on the right side and the
rear side.

Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
8
Release the outdoor
temperature thermistor.
9
Lift up the guard net
and remove it.
10
Remove the screw of
the right side panel.

When reassembling, make
sure to fit the hooks on the
right and rear side.
11
Lift up the right side
panel and remove it.
Step
Procedure Points
(R17219)
Outdoor temperature thermistor
Guard net
(R17220)
Hook
Right side
panel
(R7212)
