Si001267EB Fan Motor

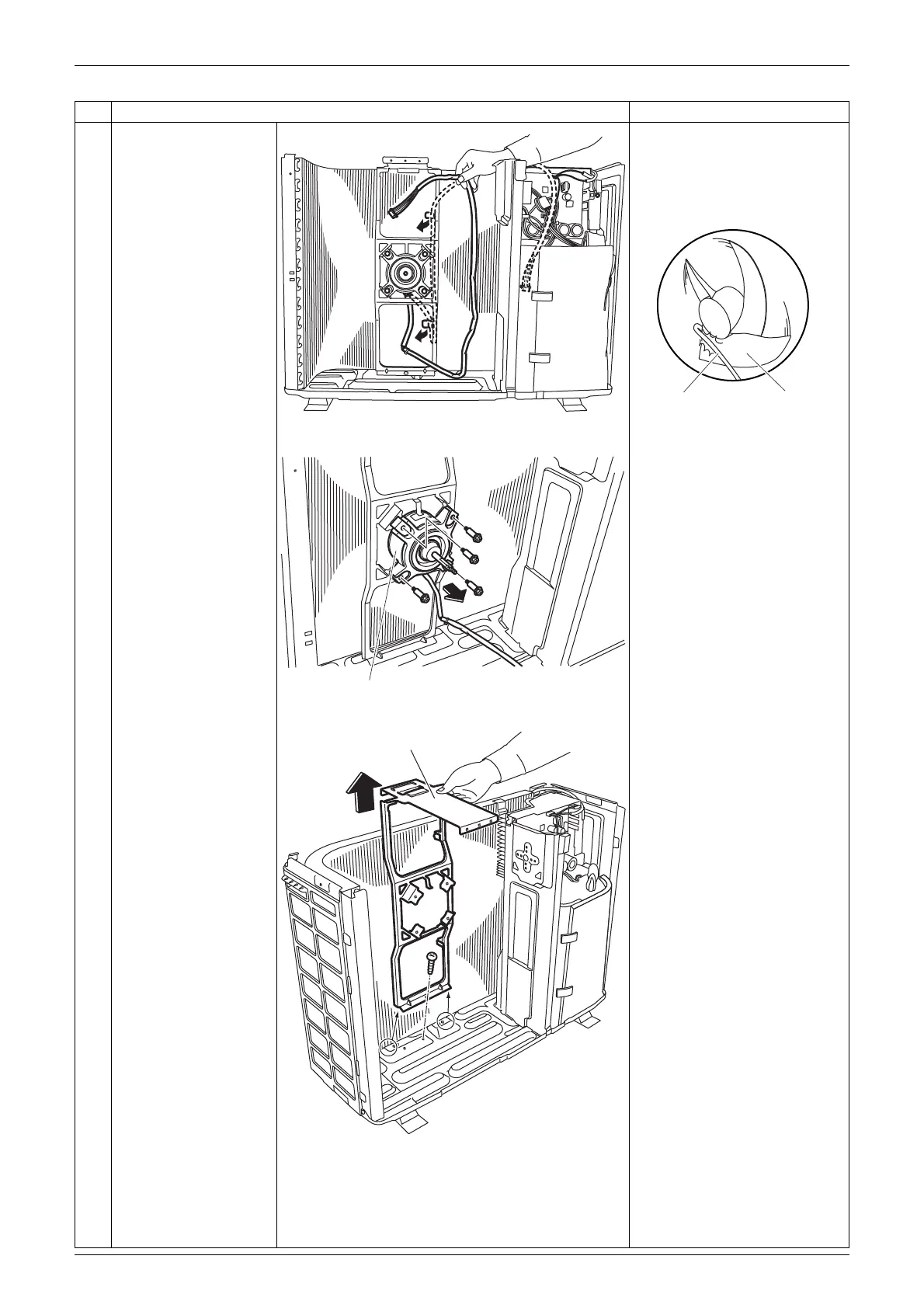

Removal Procedure 5
5
Open the 2 hooks and
release the fan motor
lead wire.
When reassembling, put the
fan motor lead wire through
the back of the fan motor (so
as not to be entangled with
the outdoor fan).
6
Remove the 4 screws
and remove the fan
motor.
Be sure to remove the lower
screws first. If the top screws
are removed first, the fan
motor may tilt down or fall
and cause injury because its
center of gravity is shifted to
the front.
7
Remove the screw and
remove the fan motor
fixing frame.
When reassembling, fit the
lower hooks into the bottom
frame.
Step
Procedure Points
(R16464)
(R3249)
Lead wire Outdoor fan
Fan motor
(R7202)
(R17218)
Fan motor fixing frame
To Next Page
