Daikin RX35E2V1B - Daikin Outdoor Unit Fan Motor Removal Procedure

Si00-772 Removal of Outer Panels / Fan Motor
Removal Procedure 3
2

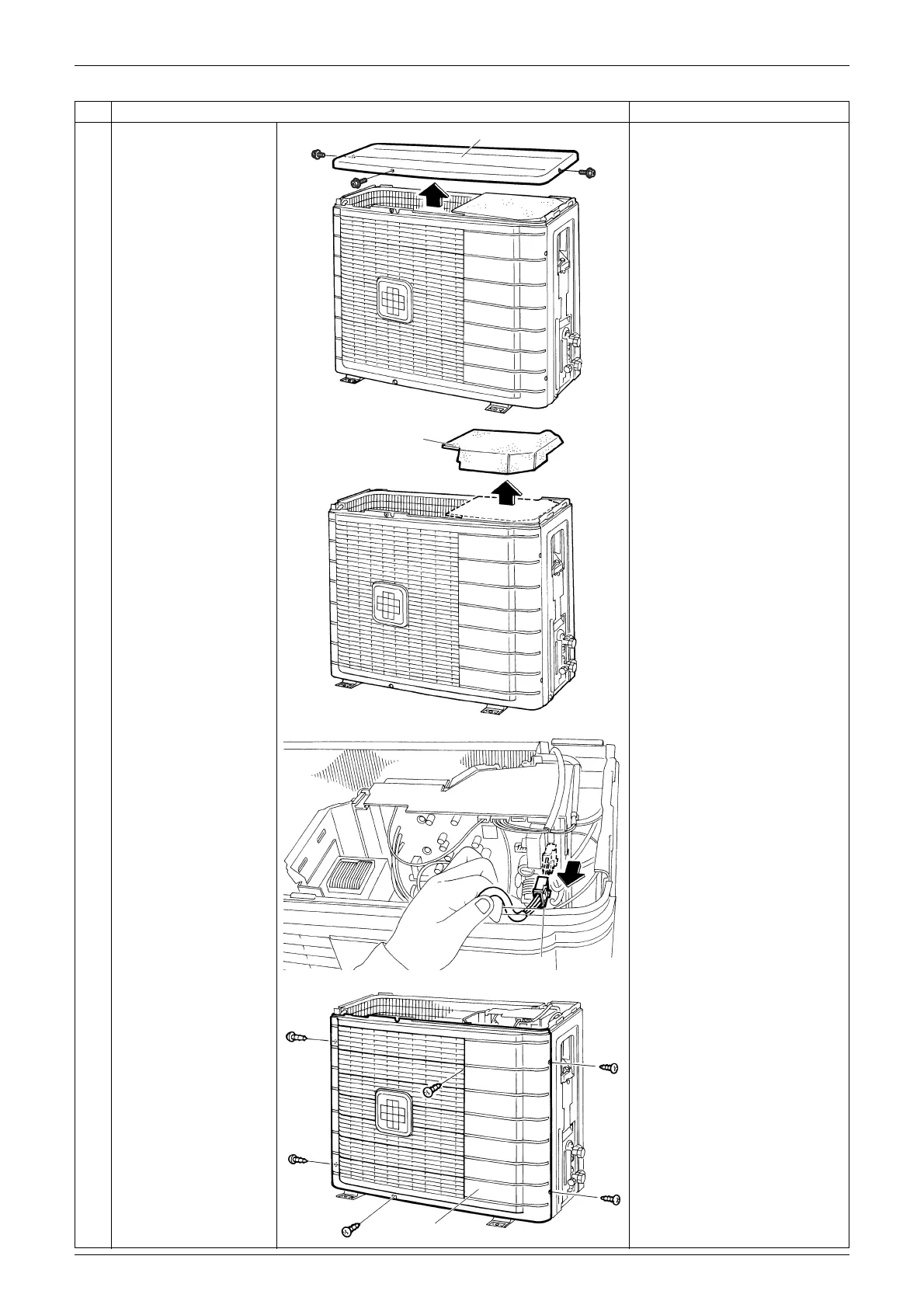

Remove the 3 screws
and lift the top panel.
3
Remove the drip proof
plate.
4
Disconnect the
connector for the fan
motor [S70].

The fan motor is united with
the front panel.
5
Remove the 6 screws
of the front panel.
Step
Procedure Points
(R12413)
Top panel
(R3240)
Drip proof plate
[S70]
(R3241)
(R12414)
Front panel
