SiUS091133 Outdoor Unit: RKS30/36LVJU, RXS30/36LVJU
Removal Procedure 378
7.6 Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Open the sound blanket
(outer).
2
Remove the sound
blanket (top upper).
The sound blanket is fragile.
Carefully pass the discharge
pipe through it.
3
Remove the screw and
slightly push the
partition plate (1) to the
left for easy work.

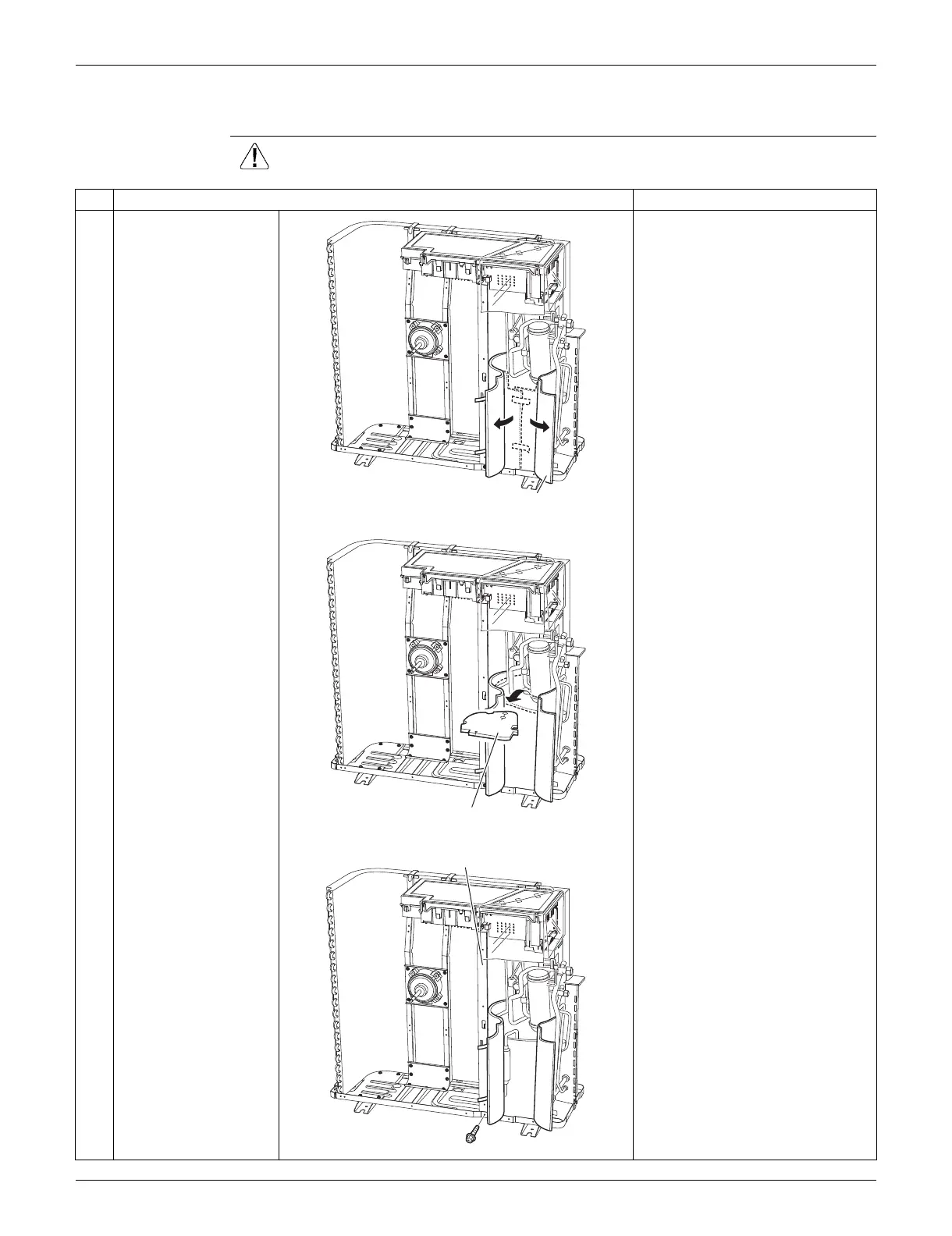

(R16921)
Sound blanket
(outer)
Sound blanket
(top upper)
(R9641)
Partition plate (1)
(R9642)
To Next Page
