Removal of Electrical Box Si00-875
8 Removal Procedure

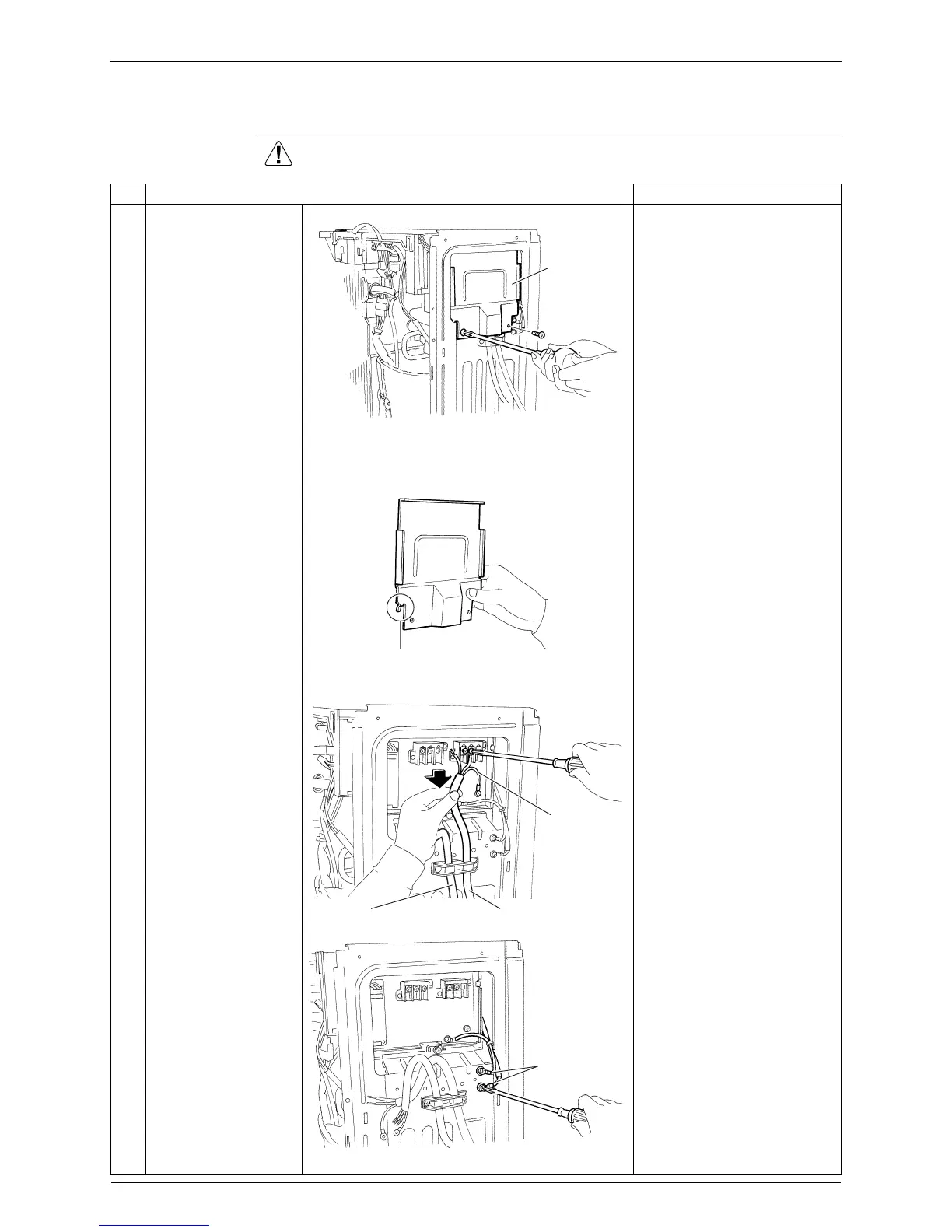

3. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the 2 screws
of the shield plate.
Preparation

Remove the top panel and
the front panel according to
the “Removal of Outer
Panels”.
2
Slide the shield plate
upward to unfasten the
hook on the bottom left,
and then remove the
shield plate.
3
Remove all the screws
of the terminal boards
and of the earth wires.
Disconnect the power
supply wire and the
connection wire.
4
Disconnect the 2 earth
wires.
(R17060)
Shield
plate
(R17021)
Hook
(R17239)
Earth wire
Power supply wire
Connection wire
Earth wire
(R17240)
