Daikin RXS50J2V1B Installation Manual

3 ■English

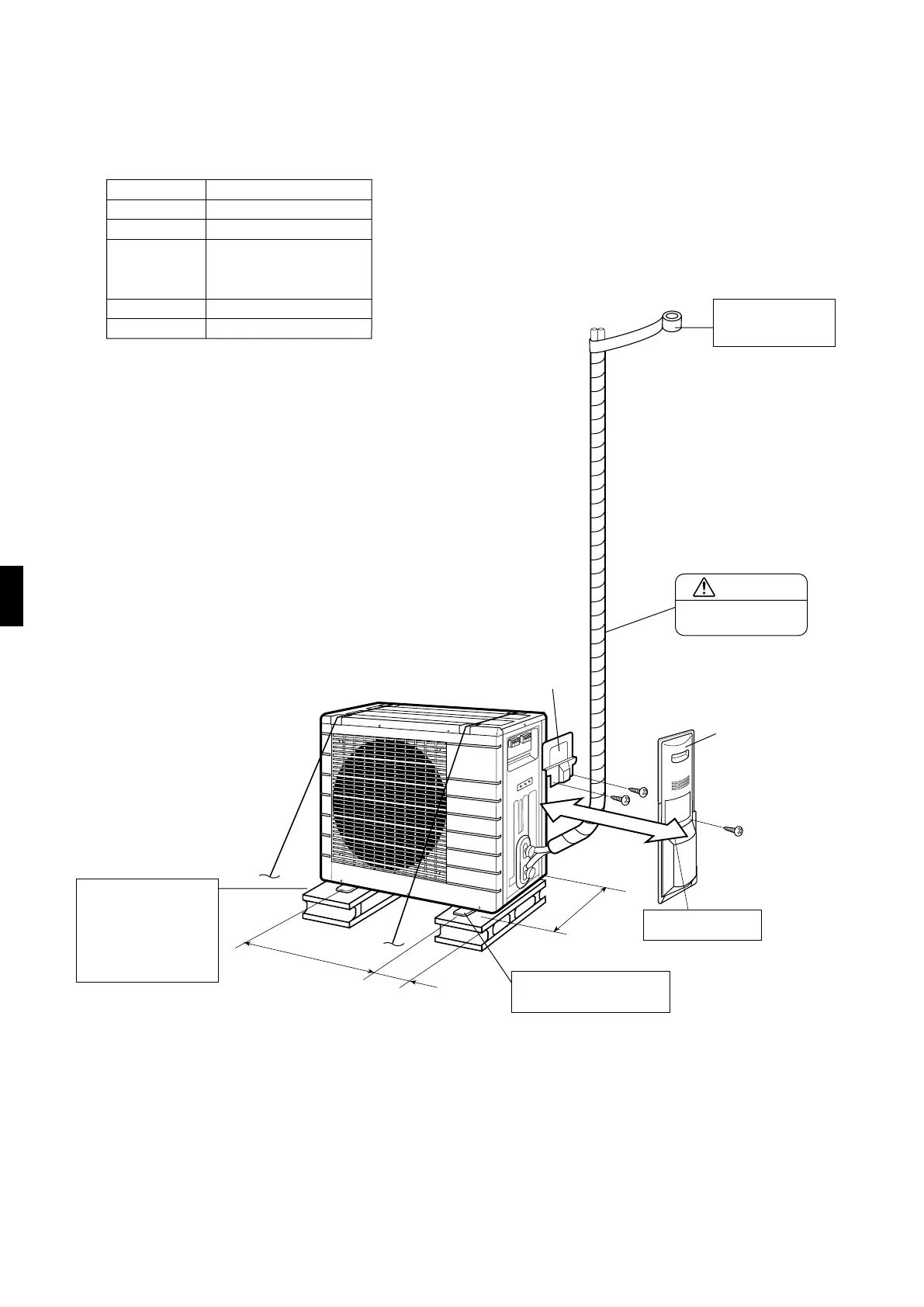

Outdoor Unit Installation Drawings
(Foot bolt-hole
centres)
330mm
Allow space for piping
and electrical servicing.
250mm from wall
CAUTION
**Set the piping length
from 1.5m to 30m.
Wrap the insulation
pipe with the finishing
tape from bottom to top.
Stop valve cover
Service lid
Where there is a danger of
the unit falling, use foot bolts,
or wires.
In sites with poor drainage,
use block bases for outdoor
unit.
Adjust foot height until the
unit is leveled. Otherwise,
water leakage or pooling of
water may occur.
(Foot bolt-hole centres)
580mm
120mm
(From unit’s side)
Max. allowable height
Min. allowable length
Max. allowable length
30m
1.5m
20m
Liquid pipe
Gas pipe
O.D. 6.4mm
O.D. 12.7mm
20g/m
Additional refrigerant
required for refrigerant
pipe exceeding 10m
in length.
**
*
*
Be sure to add the proper amount of additional refrigerant.
Failure to do so may result in reduced performance.
**
The suggested shortest pipe length is 1.5m, in order to avoid
noise from the outdoor unit and vibration.
(Mechanical noise and vibration may occur depending on how
the unit is installed and the environment in which it is used.)
When connecting the FVXS indoor unit, the shortest piping
length should be no less than around 2.5m.
01_EN_3P254362-2C.fm Page 3 Friday, November 12, 2010 2:28 PM

Daikin RXS50J2V1B Specifications

General

Outdoor unit weight	48000 g
Outdoor units quantity	1
Outdoor unit noise level	48 dB
Outdoor unit dimensions (WxDxH)	825 x 300 x 735 mm
Type	Air conditioner outdoor unit
Compressor type	Rotary
Thermostat range	- °C
Hose length (max)	20 m
Refrigerating medium	R410A
Cooling capacity (max)	- BTU/h
Air conditioner functions	cooling, heating
Cooling capacity in watts (max)	5000 W
Heating capacity in watts (max)	6000 W
Cooling energy efficiency (EER, W/W)	3.55
Heating energy efficiency (COP, W/W)	3.7
Cooling airflow (indoor unit)	2934 m³/h
Heating airflow (indoor unit)	2586 m³/h
Power requirements	220-240V, 50Hz
Annual energy consumption	705 kWh
