Forced Cooling Operation SiBE041011_A
114 Trial Operation and Field Settings

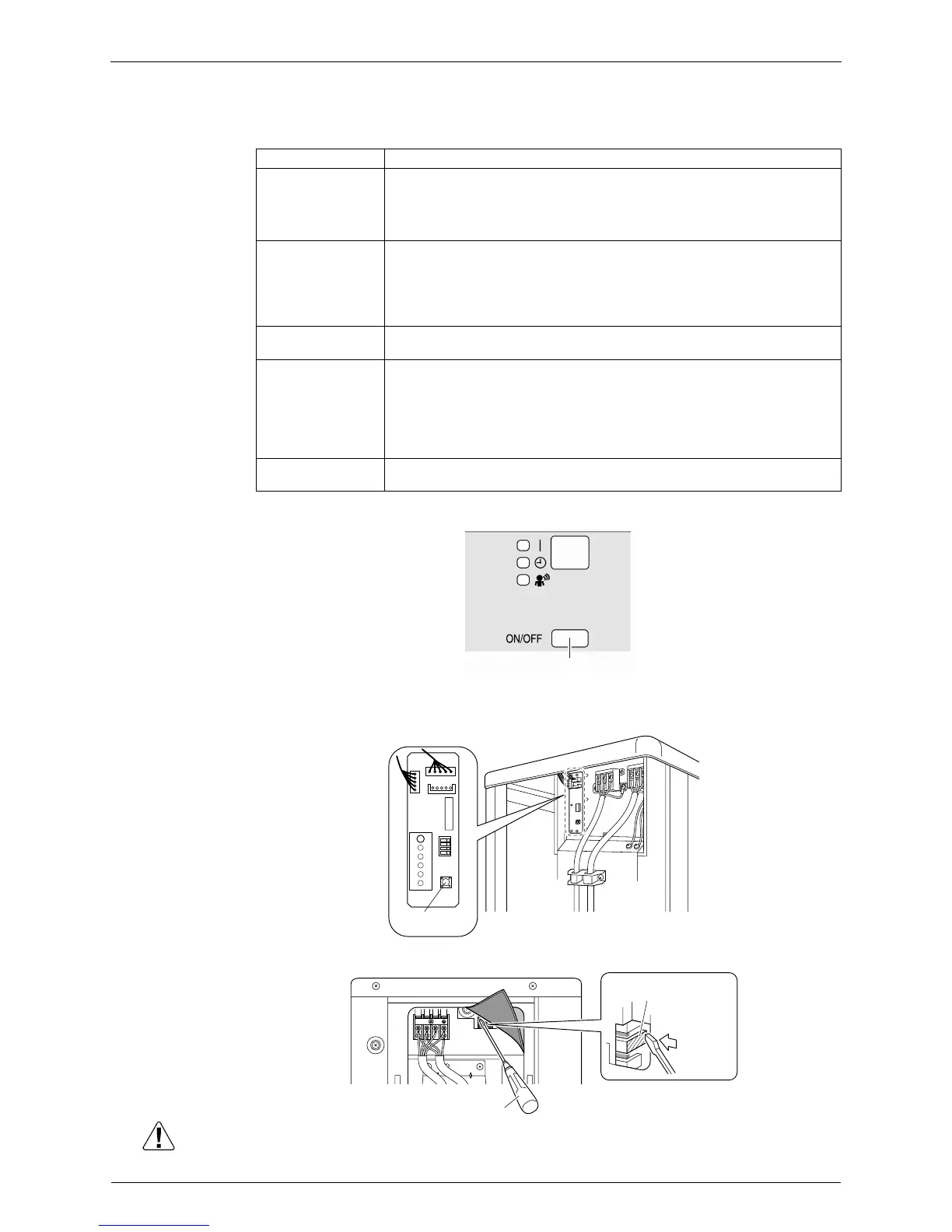

2. Forced Cooling Operation
Indoor Unit
Outdoor Unit: RK(X)S60F3V1B, 71 class
∗ The illustration is for 71 class as representative.
Outdoor Unit: RXS60F4V1B
Caution • When pressing the button, do not touch the terminal board. It has a high voltage and may
cause electric shock.
Item Forced Cooling
Conditions The forced cooling operation is allowed when both of the following conditions
are met.
1) The outdoor unit is not abnormal and not in the 3-minute standby mode.
2) The outdoor unit is not operating.
Start The forced cooling operation starts when any of the following conditions is fulfilled.
1) Press the forced cooling operation [ON/OFF] button (SW1) on the indoor
unit for 5 seconds.
2) Press the forced cooling operation ON/OFF button (SW1) on the outdoor
unit within around 3 minutes after power is supplied.
Command
frequency
60 class: 66 Hz
71 class: 31 Hz
End The forced cooling operation ends when any of the following conditions is fulfilled.
1) The operation ends automatically after 15 minutes.
2) Press the forced cooling operation [ON/OFF] button (SW1) on the indoor
unit again.
3) Press the [ON/OFF] button on the remote controller.
4) Press the forced cooling operation ON/OFF button (SW1) on the outdoor unit.
Others Protection functions have priority over all other functions during forced cooling
operation.
Indoor unit [ON/OFF] button
(R18200)
LED-A
SW4
ON
ABCD
S102
SW1
S2
Forced cooling operation
[ON/OFF] button
(R17155)
1
2
3
Screwdriver
(R16645)
Forced cooling operation
[ON/OFF] button (SW1)
Push
