Daikin SEHVX20BAW - To Handle the Outdoor Unit; Indoor Unit; To Unpack the Indoor Unit

3 About the box
Installer and user reference guide
8
SERHQ020~032BAW1 + SEHVX20~64BAW
Split packaged air-cooled water chiller
4P508020-1A – 2018.01

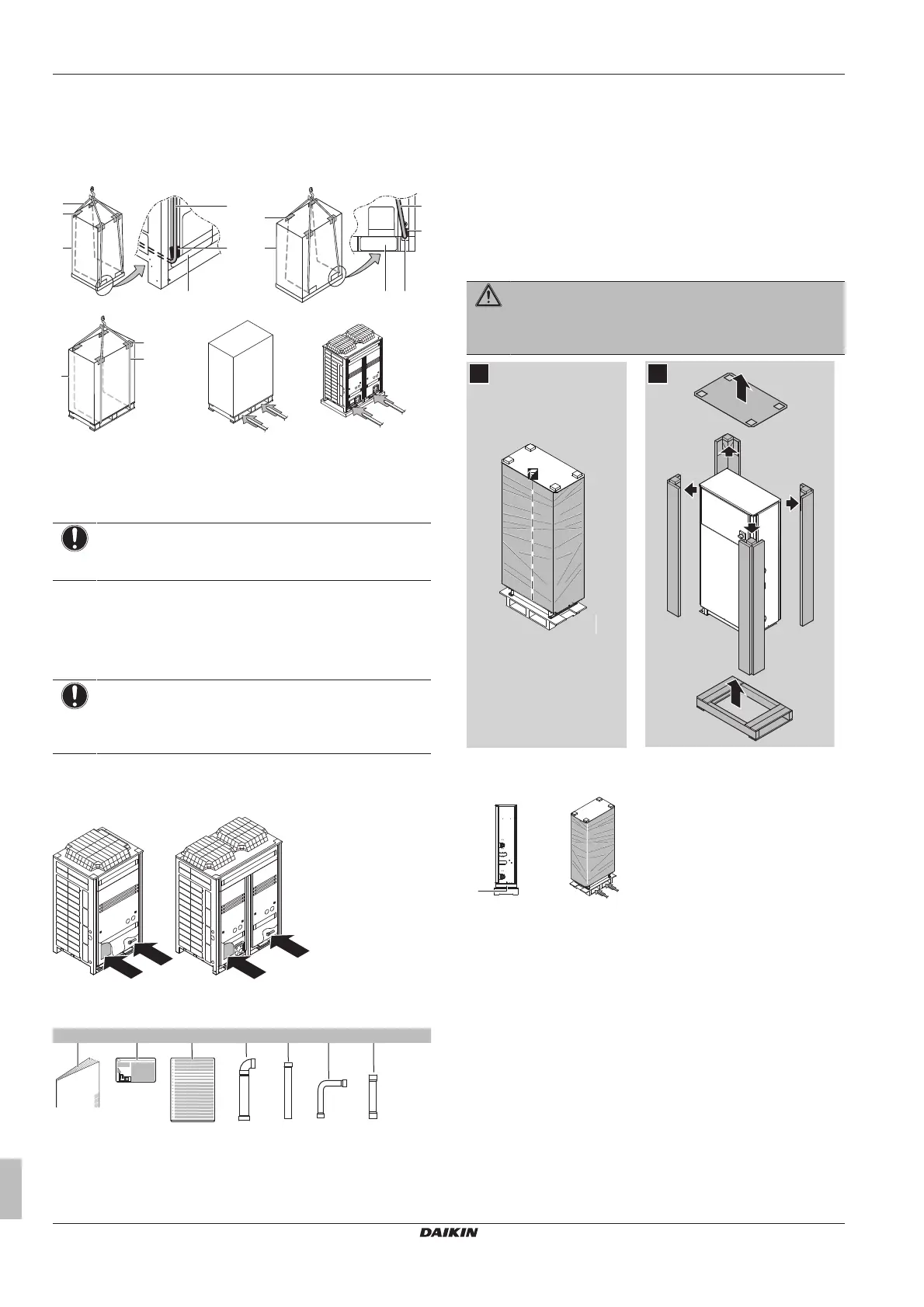

3.2.2 To handle the outdoor unit
▪ Lift the unit preferably with a crane and 2belts of at least 8m long
as shown in the figure below. Always use protectors to prevent
belt damage and pay attention to the position of the unit's centre
of gravity.
a
d e
c
b
d
a
a
c
b
c
b
c
b
c
f
f
a Packaging material
b Belt sling
c Protector
d Large opening
e Small opening (40×45)
f Forklift
NOTICE
Use a belt sling of ≤20mm wide that adequately bears the
weight of the unit.
▪ If a forklift is to be used, preferably transport the unit with pallet
first, then pass the forklift arms through the large rectangular
openings on the bottom of the unit.
▪ Once at final position, unpack the unit and pass the forklift arms
through the large rectangular openings on the bottom of the unit.
NOTICE
Cover the forklift arms with a cloth to prevent damaging the
unit. If the paint on the bottom frame peels off, the anti-
corrosion effect may decrease.
3.2.3 To remove the accessories from the
outdoor unit
Make sure that all accessories are available in the unit.
1× 1× 1× 1×1× 1× 1×
ea c d f g
b
a General safety precautions
b Fluorinated greenhouse gases label
c Multilingual fluorinated greenhouse gases label
d Gas side accessory pipe
e Gas side accessory pipe
f Liquid side accessory pipe
g Liquid side accessory pipes
3.3 Indoor unit
3.3.1 To unpack the indoor unit
Remove the packaging material from the unit:
▪ Take care not to damage the unit when removing the shrink foil
with a cutter.
▪ Remove the 4 bolts fixing the unit to its pallet.
▪ Take care not to drop the unit when removing it from the pallet. Lift
the unit with at least 2installers.
WARNING
Tear apart and throw away plastic packaging bags so that
nobody, especially children, can play with them. Possible
risk: suffocation.
1 2
3.3.2 To handle the indoor unit
b
a
a Opening
b Forklift
▪ A forklift can only be used for transport as long as the unit remains
on its pallet as shown above.
