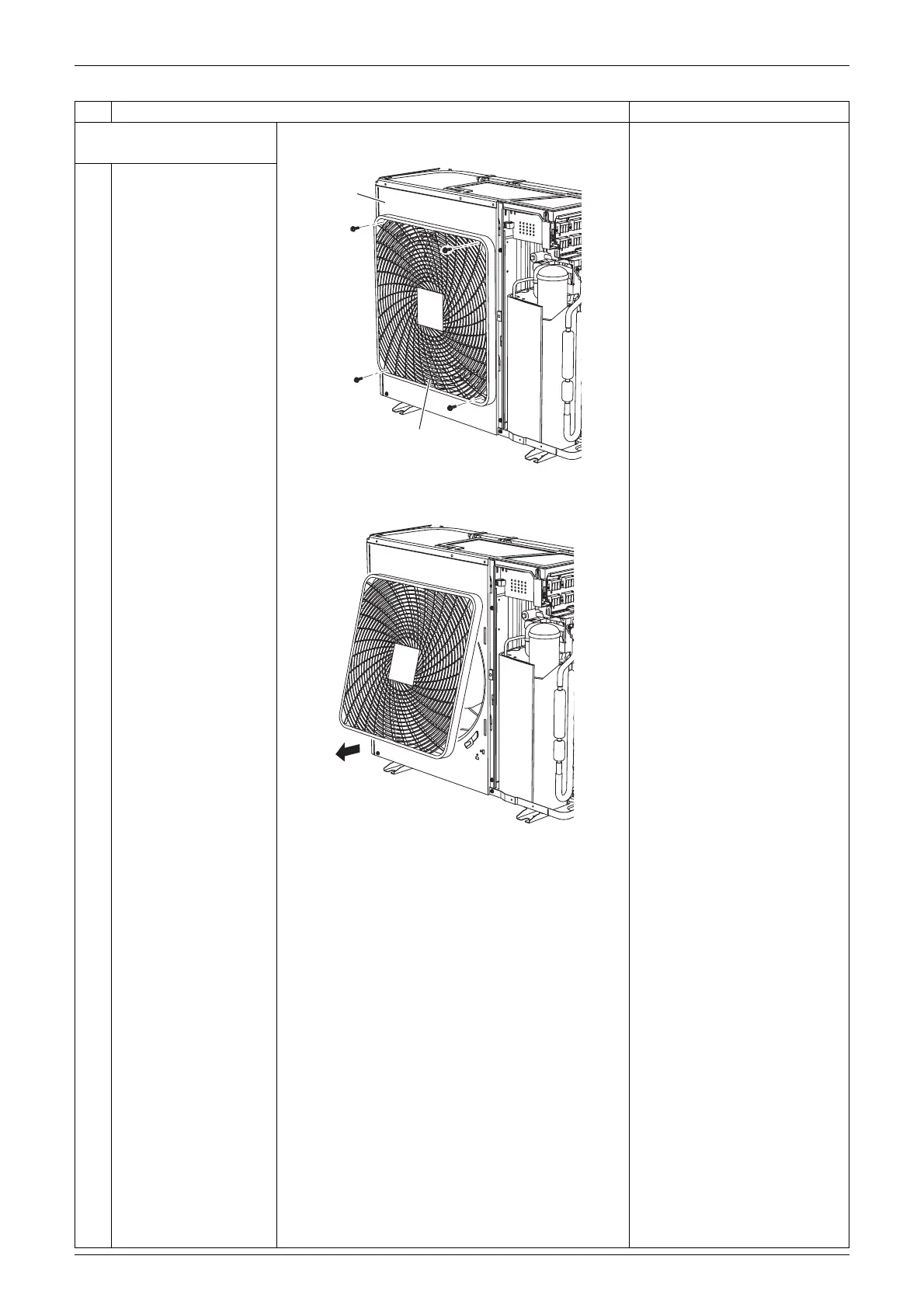

SiBE121021_C Outdoor Unit - 80/90 Class
Removal Procedure 407
5. Remove the front panel
(1).
îš„
Remove the discharge grille
and outdoor fan first to
remove the front panel (1).
1
Remove the 4 screws
on the discharge grille.
2
Pull the bottom of the
discharge grille toward
yourself.
Step
Procedure Points
(R10376)
Front
Panel (1)
Discharge grille
(R10377)
