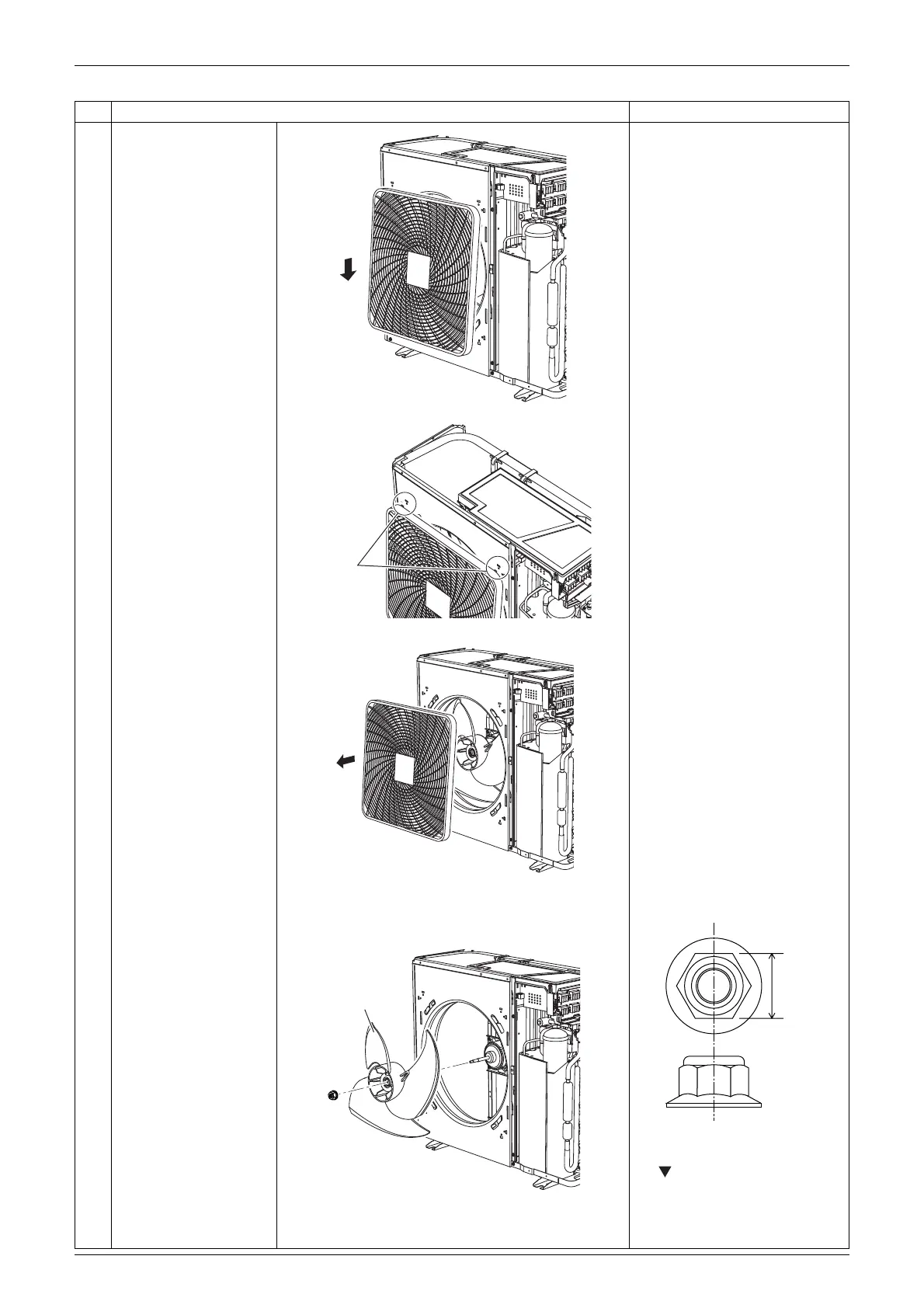

Outdoor Unit - 80/90 Class SiBE121021_C
408 Removal Procedure
3
Slide the discharge
grille downward to
release the 2 hooks at
the top.
4
Remove the discharge
grille.
5
Remove the nut and
remove the outdoor fan.
îš„
Nut size : M8
îš„
When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
Step
Procedure Points
(R10378)
(R14616)
Hook
(R10380)
(R10381)
Outdoor fan
13 mm
(R12301)
