Pressure droP daTa
Pressure droP daTa

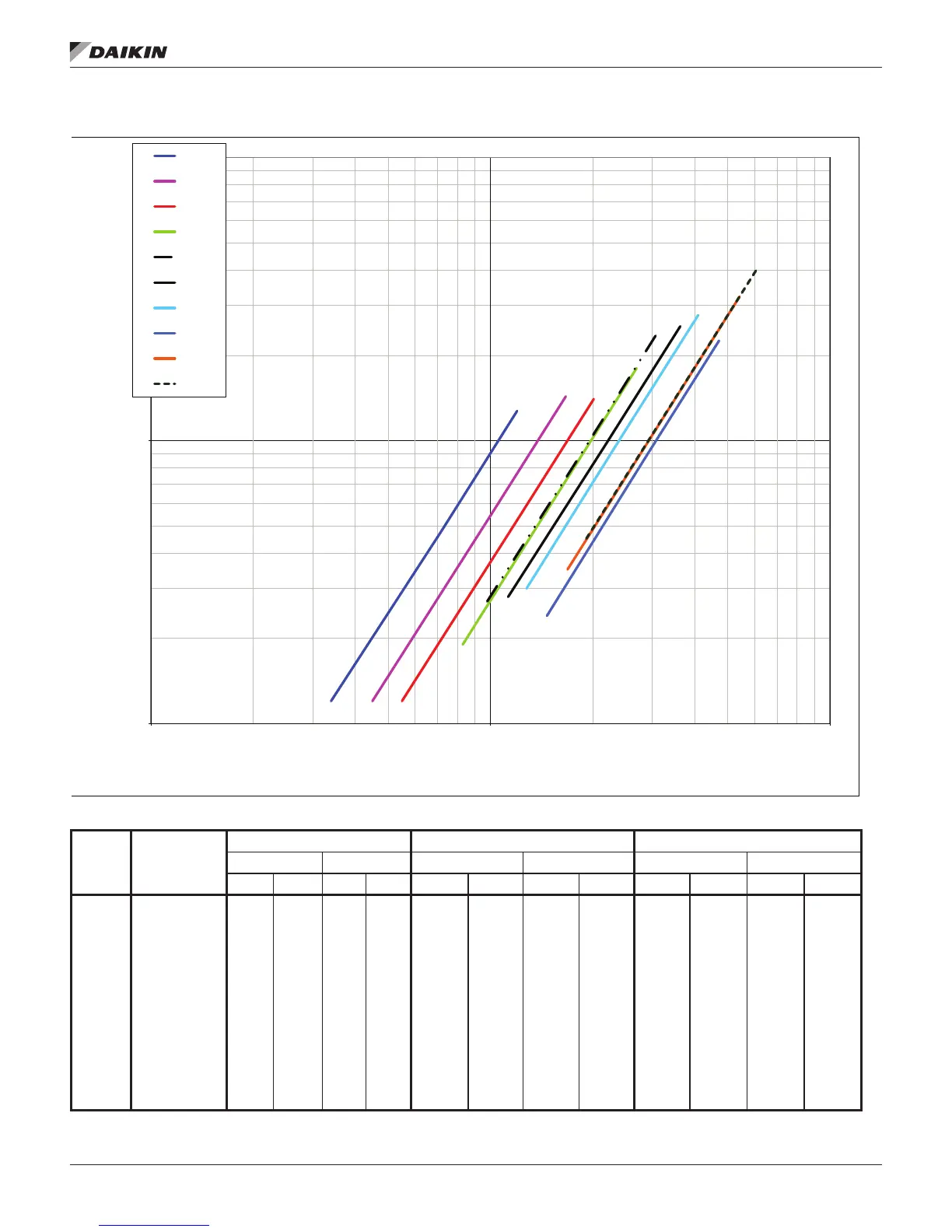

Figure 14: Evaporator Pressure Drop
Table 9: Evaporator Pressure Drop
TGZ040
TGZ040
TGZ050
TGZ050
TGZ060
TGZ060
TGZ080
TGZ080
TGZ100
TGZ100
TGZ110
TGZ110
TGZ120
TGZ120
TGZ150
TGZ150
TGZ170
TGZ170
TGZ190
TGZ190
1
10
100
10 100 1000
Dp (ft)
Flow Rate (gpm)
TGZ040
TGZ050
TGZ060
TGZ080
TGZ100
TGZ110
TGZ120
TGZ150
TGZ170
TGZ190
TGZ Unit Evap
Minimum Flow Rate Nominal Flow Rate Maximum Flow Rate
Inch-Pound S.I. Inch-Pound S.I. Inch-Pound S.I.
gpm DP ft. lps DP kpa gpm DP ft. lps DP kpa gpm DP ft. lps DP kpa
40 AC500DQ-62H 34 1.2 2.1 3.4 72 4.8 4.5 14.4 120 12.7 7.6 37.9
50 AC500DQ-82H 45 1.2 2.8 3.5 100 5.4 6.3 16.1 167 14.3 10.5 42.8
60 AC500DQ-102H 55 1.2 3.5 3.5 121 5.3 7.6 15.8 202 14.0 12.7 42.0
80 AC500DQ-122H 83 1.9 5.2 5.7 162 6.8 10.2 20.3 270 18.0 17.0 53.7
100 AC500DQ-142H 98 2.7 6.2 8.0 189 9.3 11.9 27.8 315 24.6 19.9 73.4
110 AC500DQ-162H 113 2.8 7.1 8.2 218 9.6 13.8 28.7 363 25.3 22.9 75.6
120 AC500DQ-182H 128 3.0 8.1 9.1 246 10.5 15.5 31.4 410 27.7 25.9 82.9
150 EV34191111/9 147 2.4 9.3 7.3 283 8.5 17.9 25.4 472 22.5 29.8 67.2
170 EV34191212/7 169 3.5 10.7 10.5 326 12.2 20.6 36.5 543 32.2 34.3 96.2
190 EV34191212/7 192 4.5 12.1 13.4 369 15.5 23.3 46.3 615 40.9 38.8 122.3
