eleTrICal daTa
www.DaikinApplied.com 29 IM 1137-4 • TEMPLIFIER
®
MODEL TGZ
eleTrICal daTa
Unit Components
Figure 26: Compressor Locations
NOTE: Models TGZ150 to TGZ190 add a #5 compressor to circuit #1 and a #6 compressor to circuit #2 and substitute an underslung shell-
and-tube evaporator for the brazed-plate evaporator.

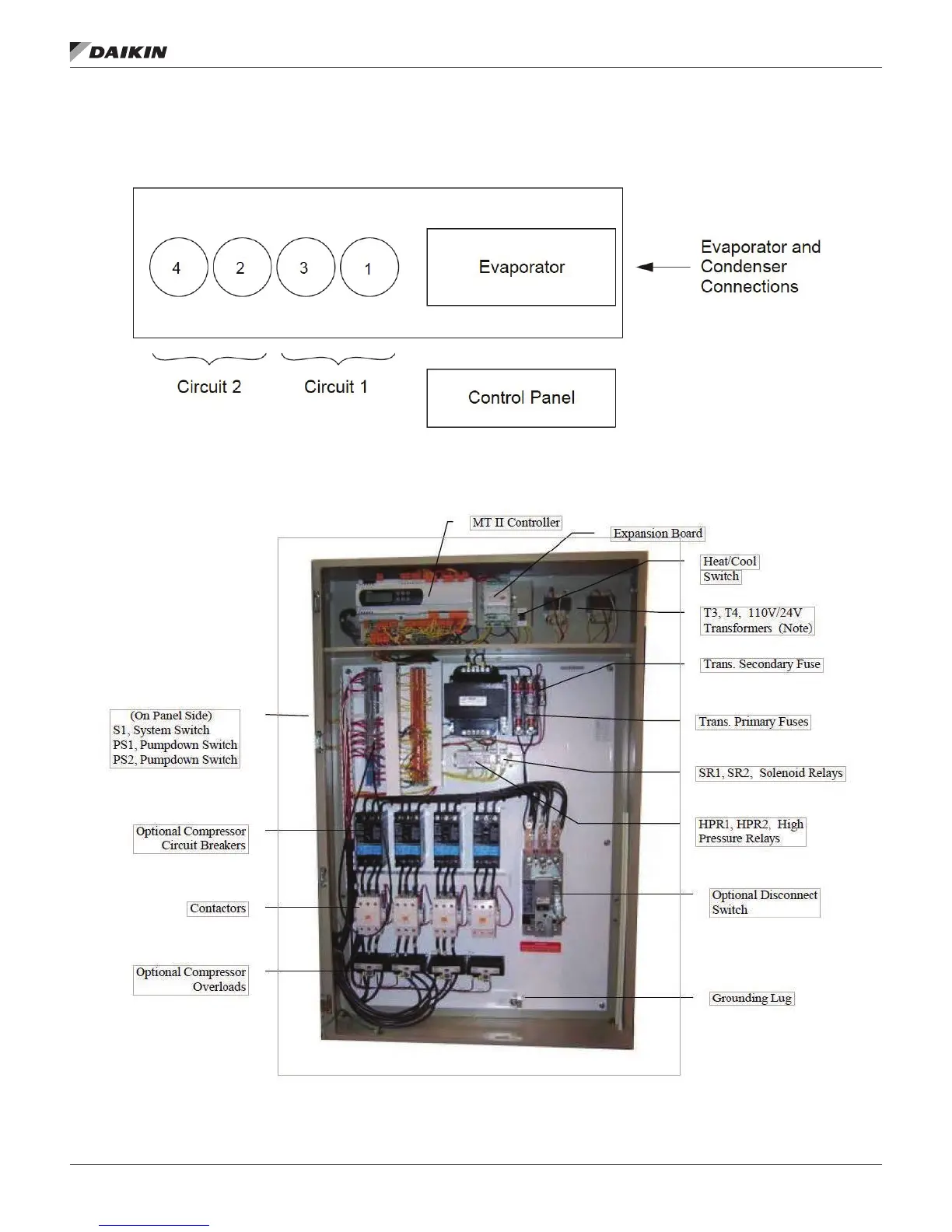

Figure 27: Electric Panel Components
NOTE: Models TGZ 150 – 190 have additional T5 for electronic expansion valves.
To Next Page
